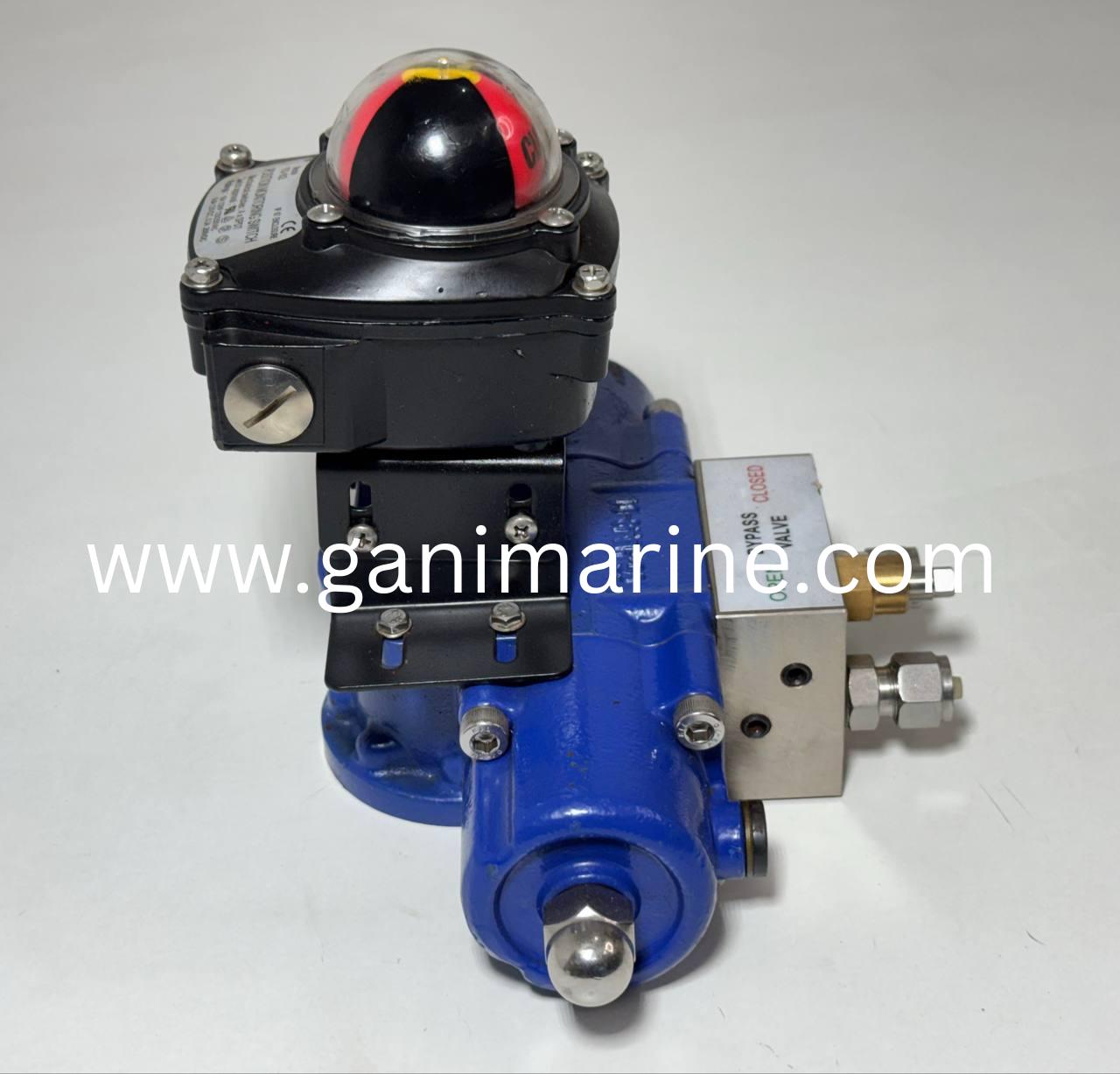

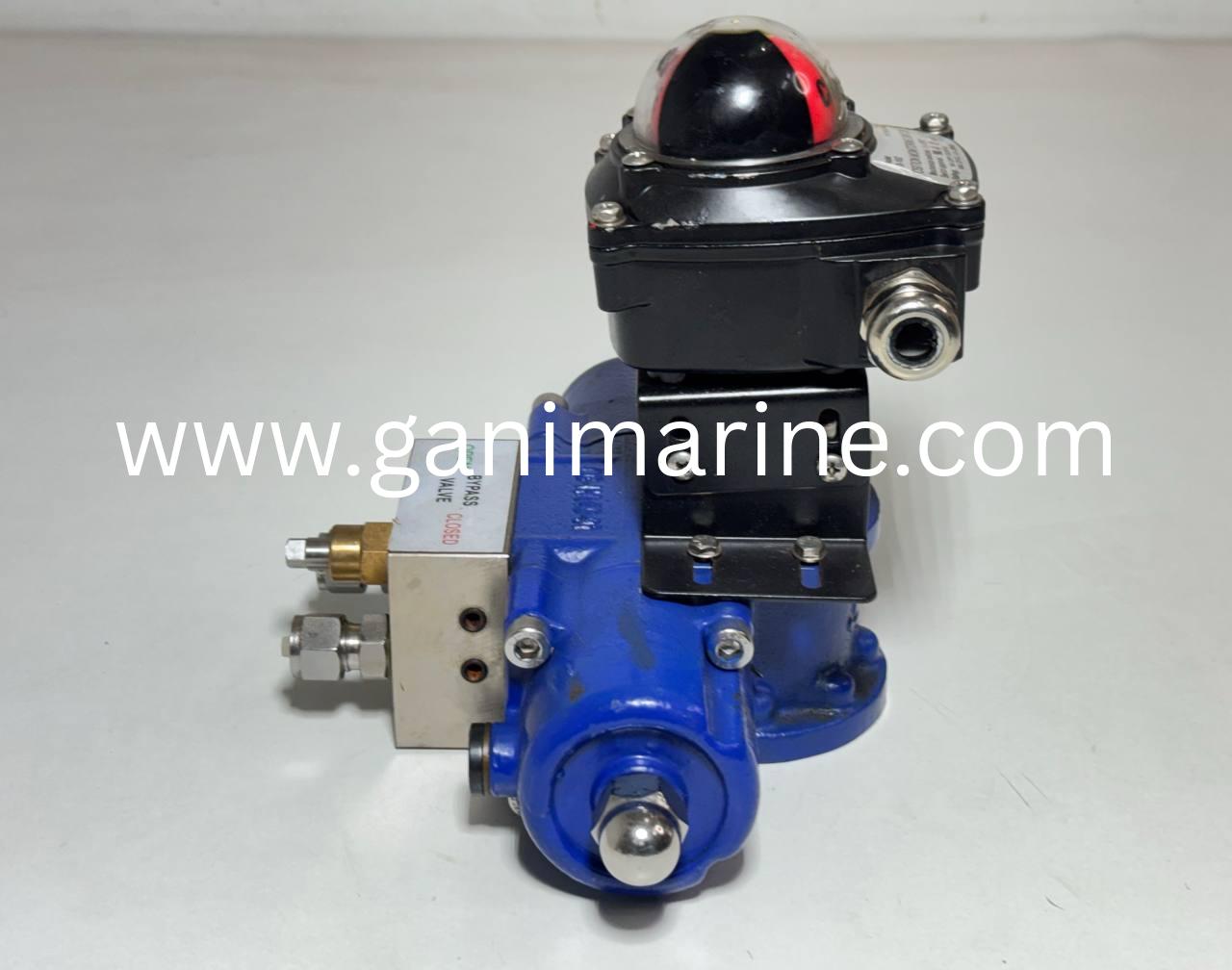

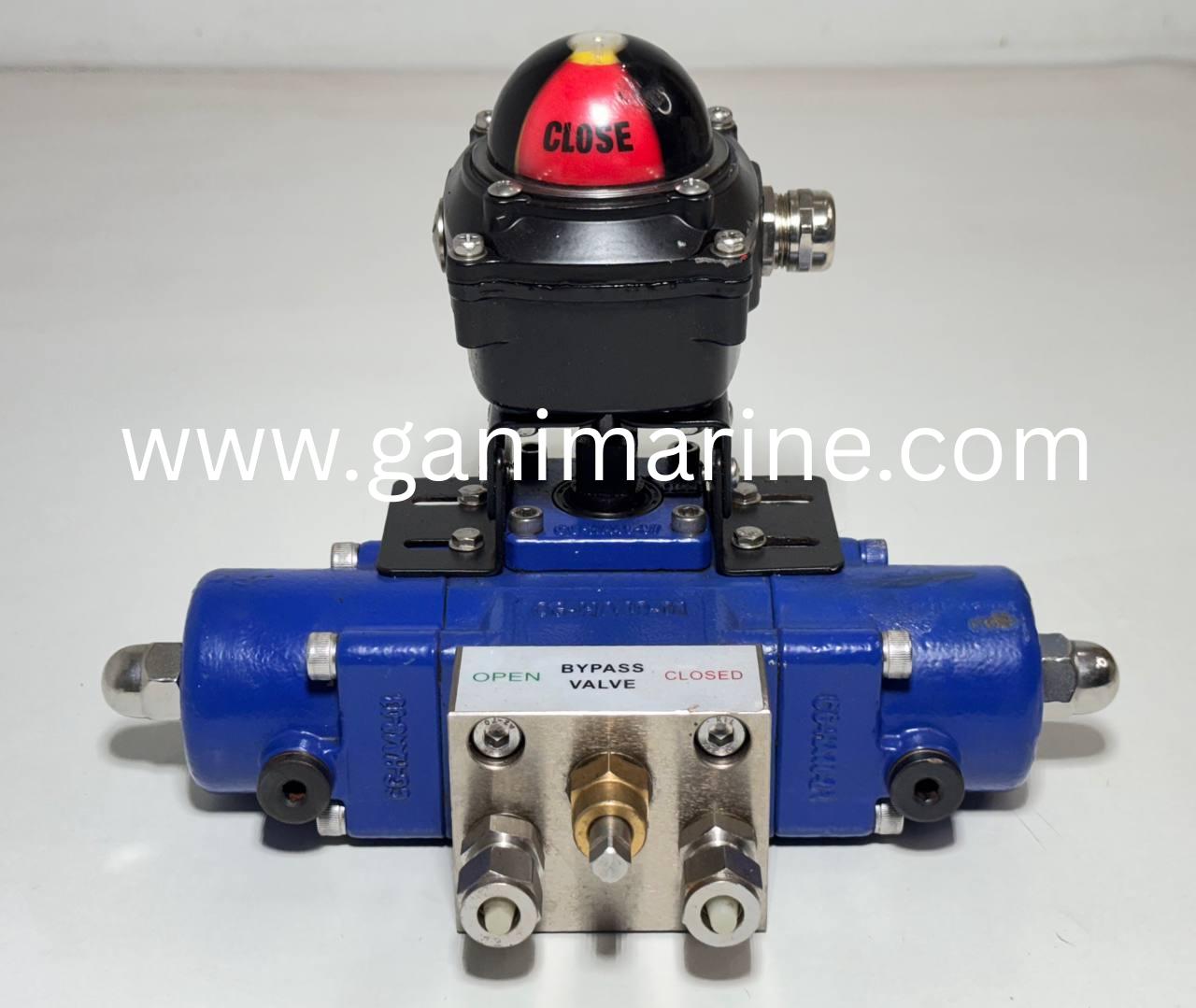

position monitoring switch box ITS-102 Hydraulic Actuator CG-HA40

The CG-HA40 Hydraulic Actuator is a high-performance rotary actuator designed for quarter-turn valve automation in critical industries including oil & gas, petrochemicals, power plants, marine, and water treatment systems. Built to deliver high torque (up to 240 Nm) under demanding environments, this actuator ensures smooth, precise, and reliable valve operation.

Integrated with the ITS-102 Position Monitoring Switch, it provides real-time electrical feedback and visual indication of valve status (open/close), making it ideal for automated process control and SCADA/DCS systems.

The CG-HA40 actuator is widely used for butterfly valves, ball valves, and plug valves, ensuring dependable hydraulic performance, fast response, and long-term durability.

---

Technical Specifications – CG-HA40 Hydraulic Actuator

Type: Hydraulic Rotary Actuator

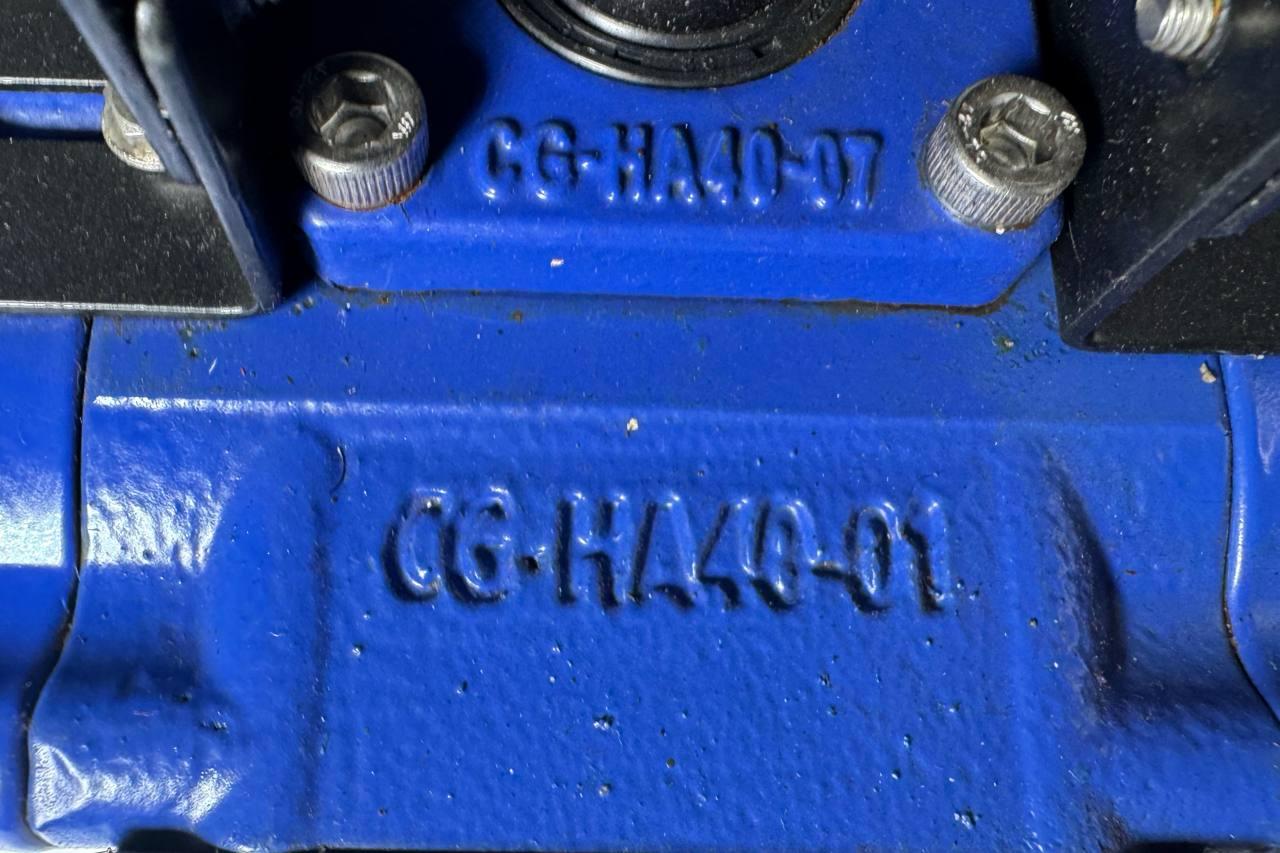

Model: CG-HA40-01

Max Output Torque: 240 Nm

Working Pressure: 11 MPa (110 bar)

Rotation Angle: 90° ± 5°

Ambient Temperature: -20°C to +80°C

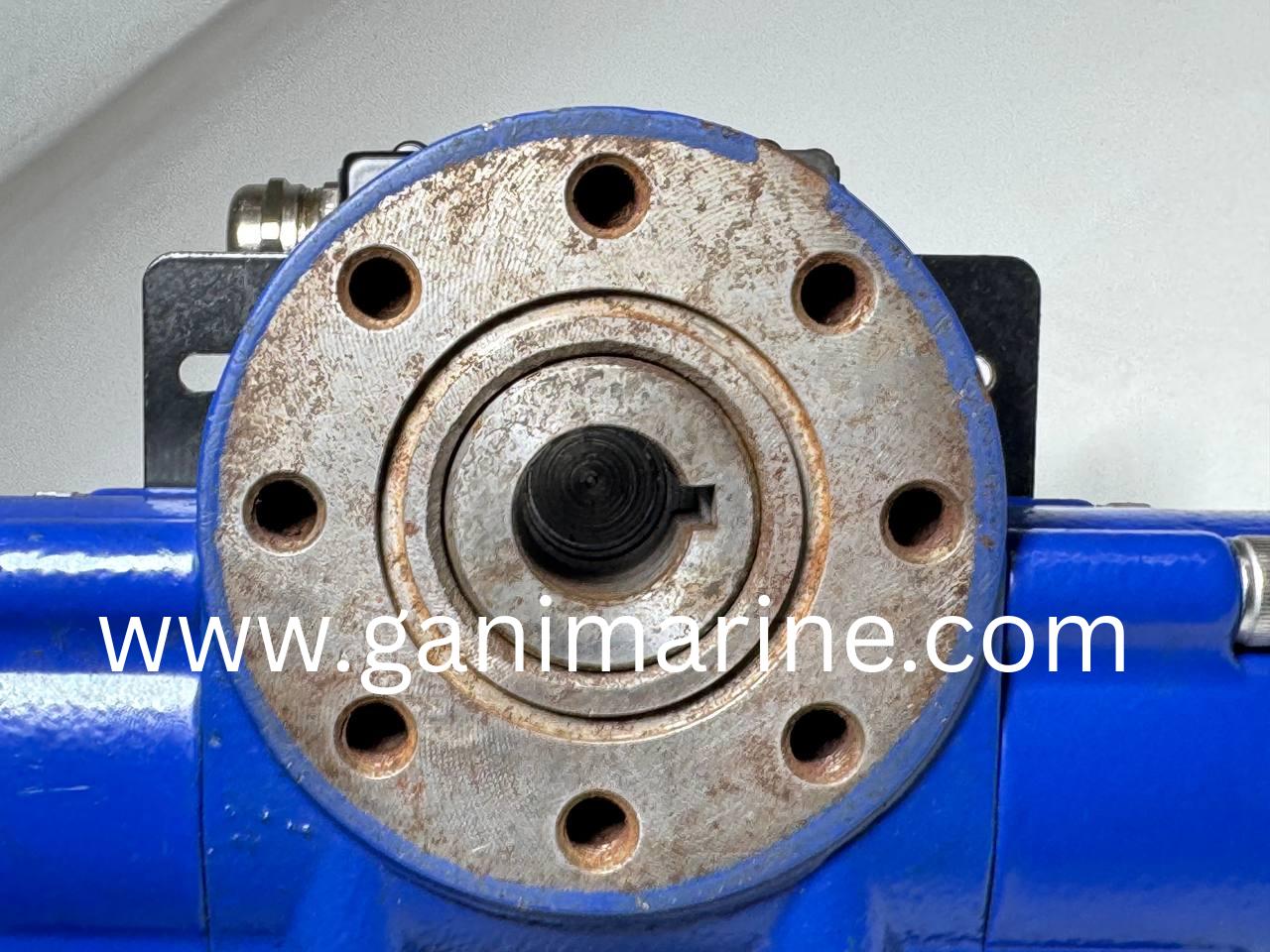

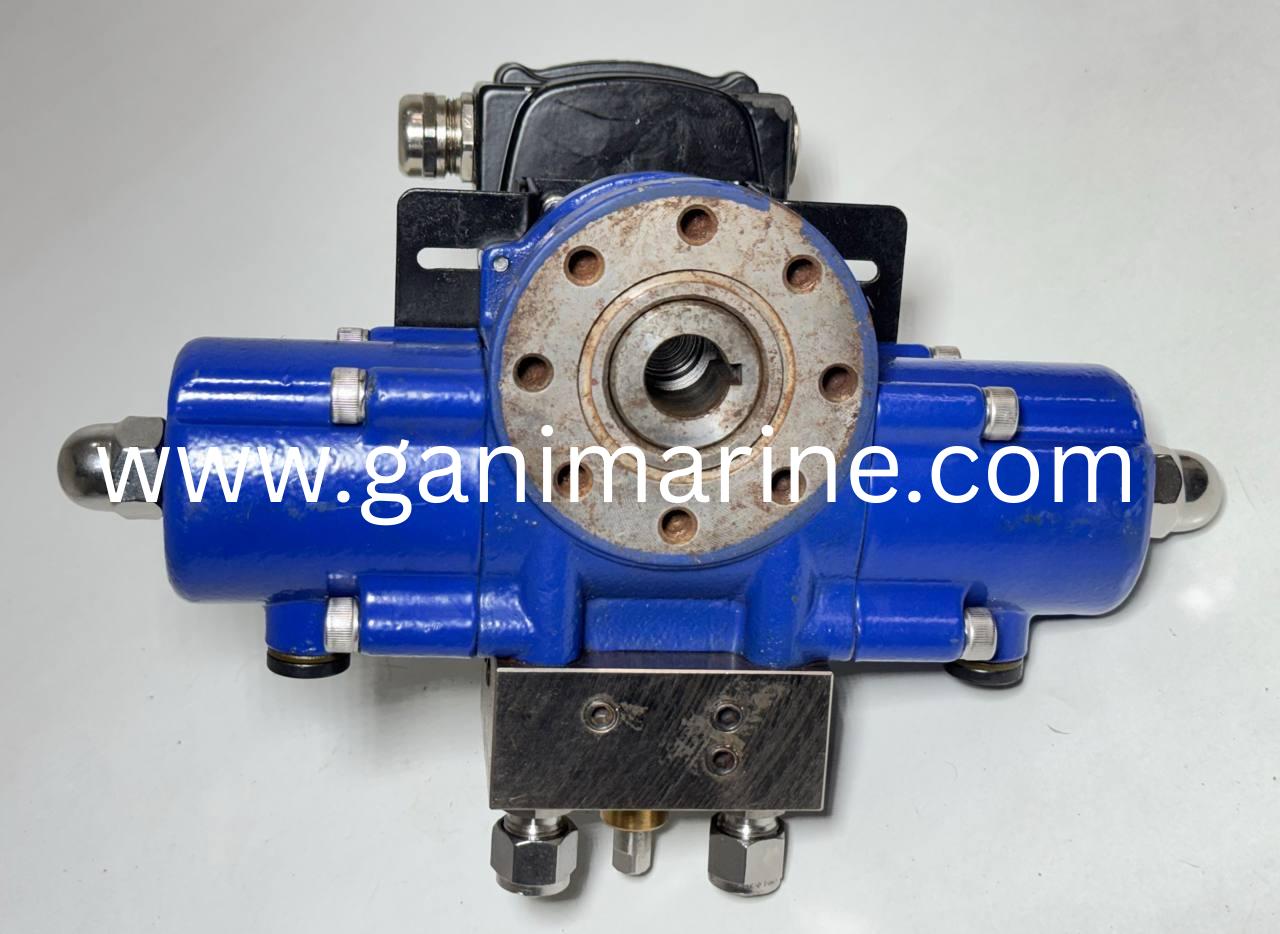

Mounting Flange: ISO 5211 (F05-F07 standard)

Operation: Quarter-turn (0°–90°)

Application: Ball, butterfly, plug valves

---

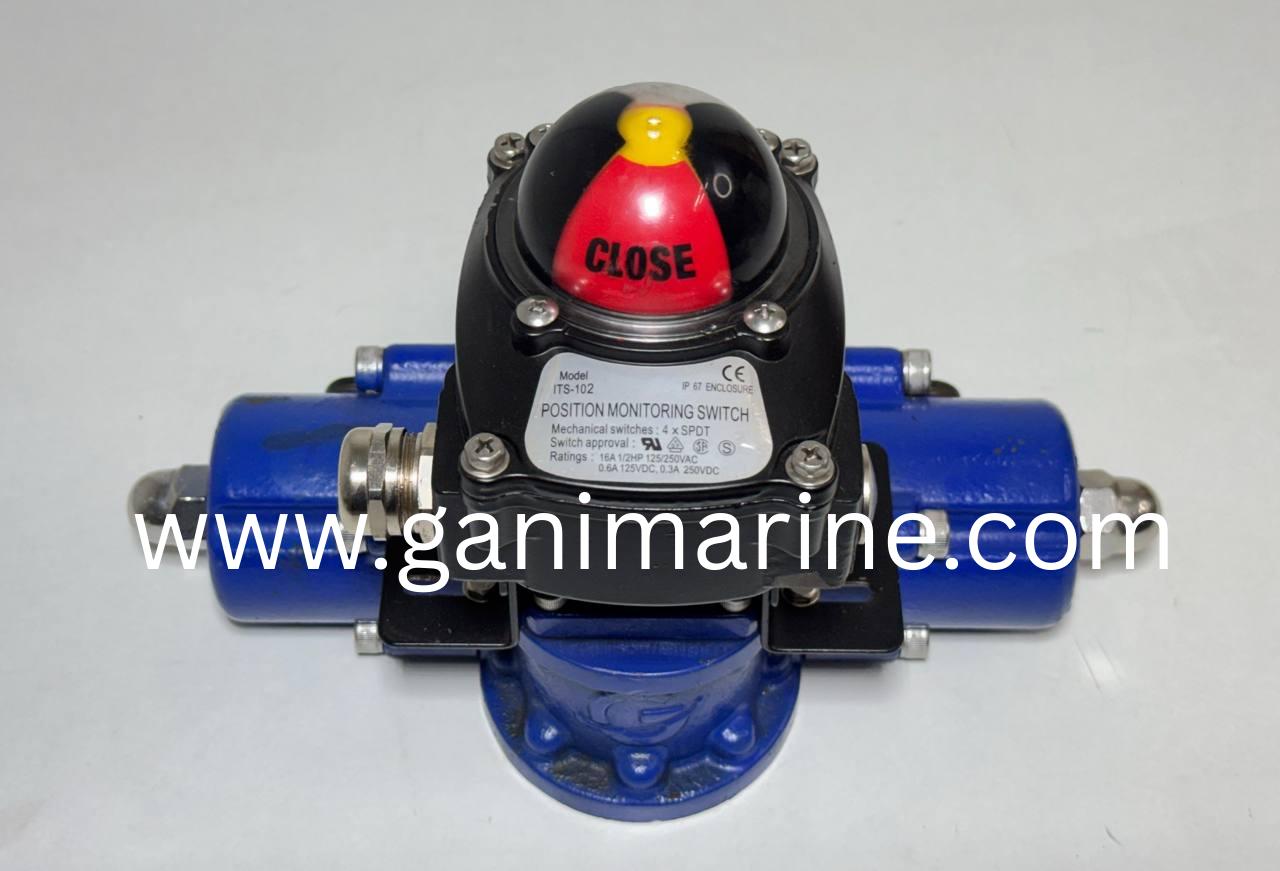

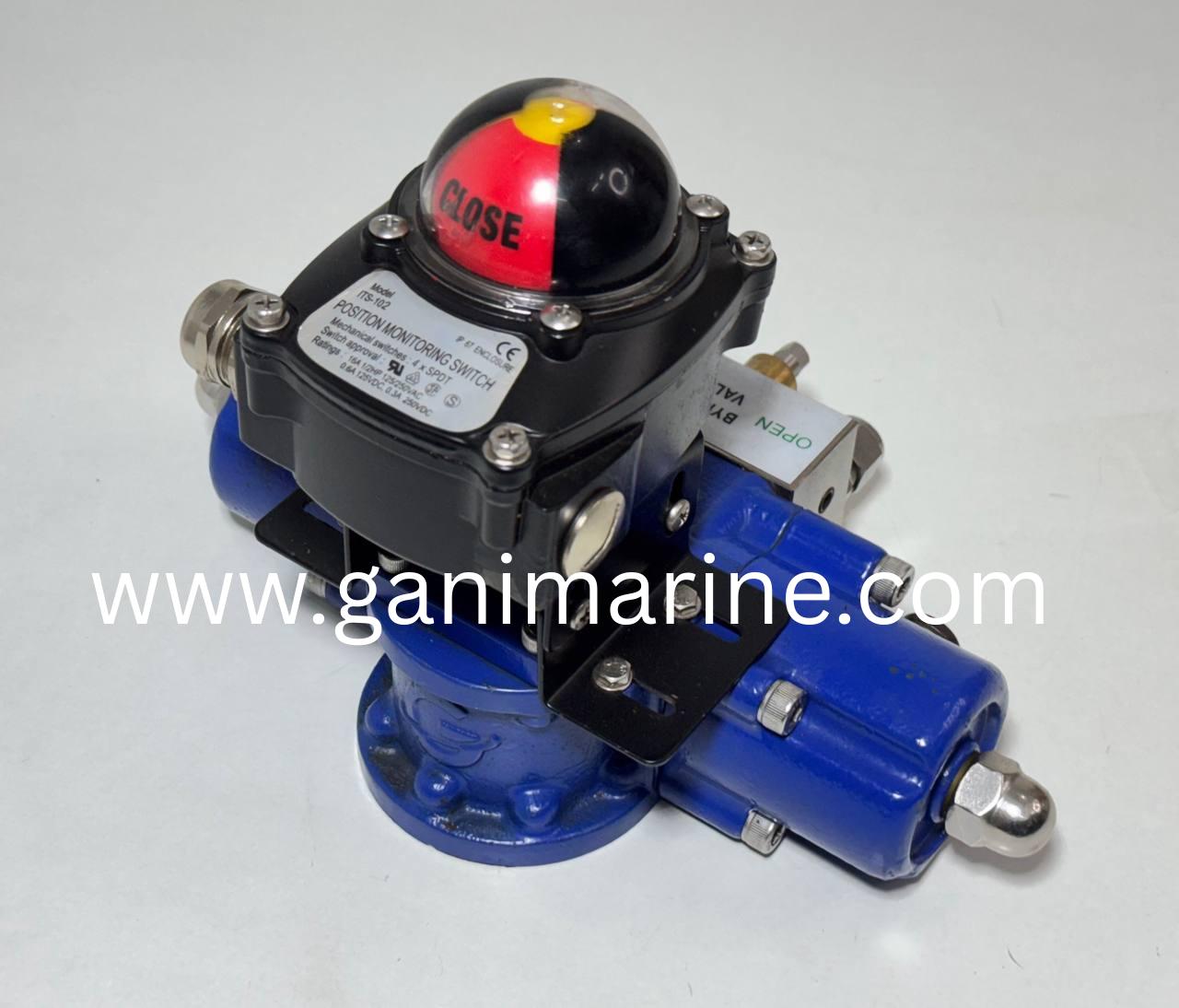

ITS-102 Position Monitoring Switch – Specifications

Switches: 4 × SPDT mechanical (optional sensors: proximity/magnetic)

Electrical Ratings: 16A AC (125/250V), 0.6A DC (125VDC), 0.3A DC (250VDC)

Indicator: Dome-type visual position indicator (0–90° rotation)

Protection Class: IP67 (weatherproof, dust-tight, immersion protected)

Mounting: NAMUR/VDI/VDE3845 bracket standard

---

Applications

Oil & Gas Pipelines – Valve automation for remote and hazardous areas

Marine & Offshore – Reliable hydraulic actuation for critical marine valves

Petrochemical Plants – For automated ball/butterfly valve operations

Water & Wastewater Treatment – Hydraulic control in harsh environments

Power Plants – Steam, cooling water, and process valve automation

---

Product Features

Heavy-duty hydraulic torque output for demanding industrial valves

Quarter-turn actuation with precise 90° movement

Integrated position monitoring with ITS-102 switch (electrical + visual feedback)

High protection (IP67) for outdoor and offshore conditions

ISO 5211 mounting for direct valve compatibility

Fast, accurate, and stable response for automation systems

Suitable for SCADA/DCS integration in automated plants

---
