Parker hydraulic Proportional Control Valve CVG - 32
Parker hydraulic Proportional Control Valve CVG - 32

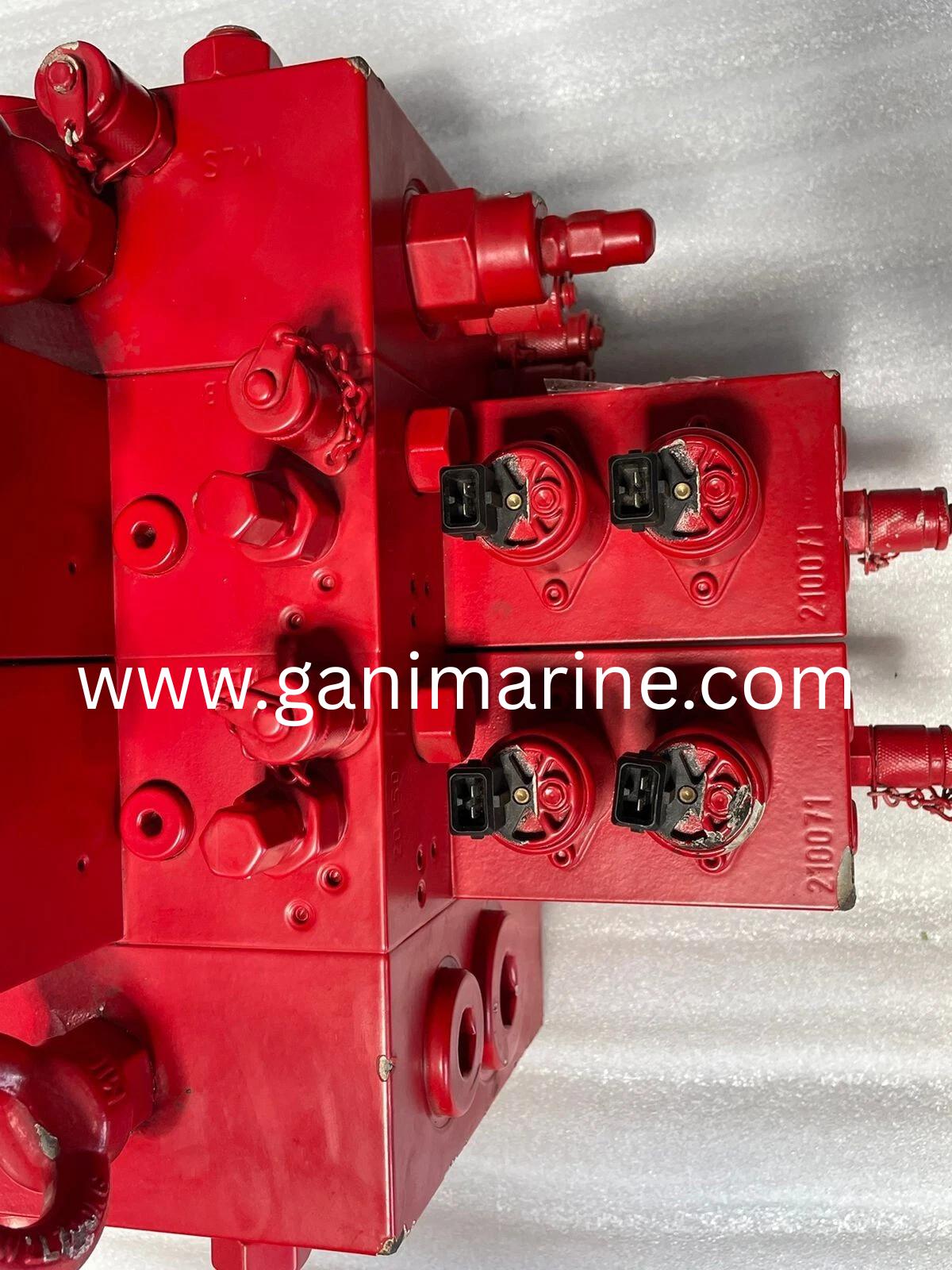

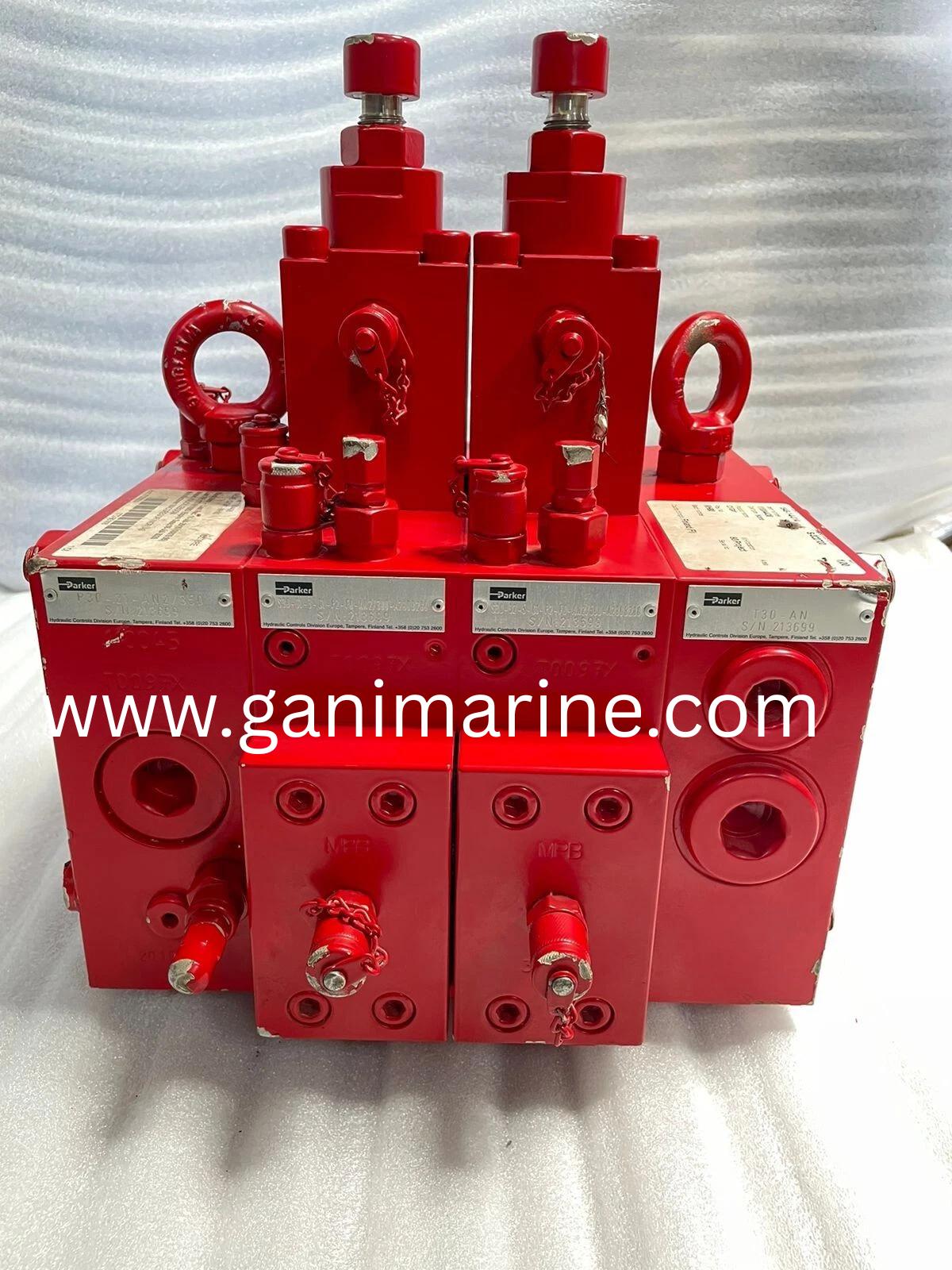

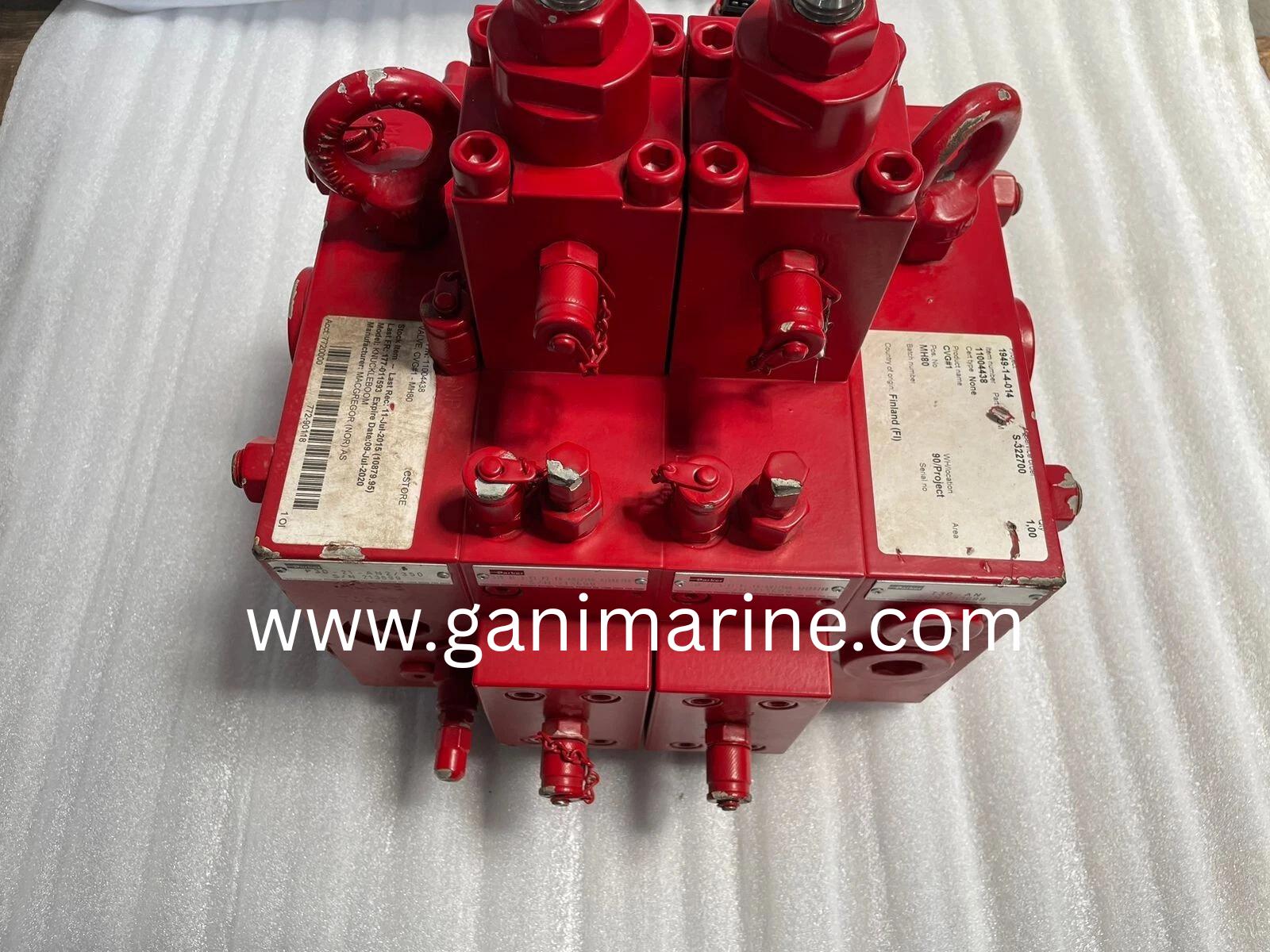

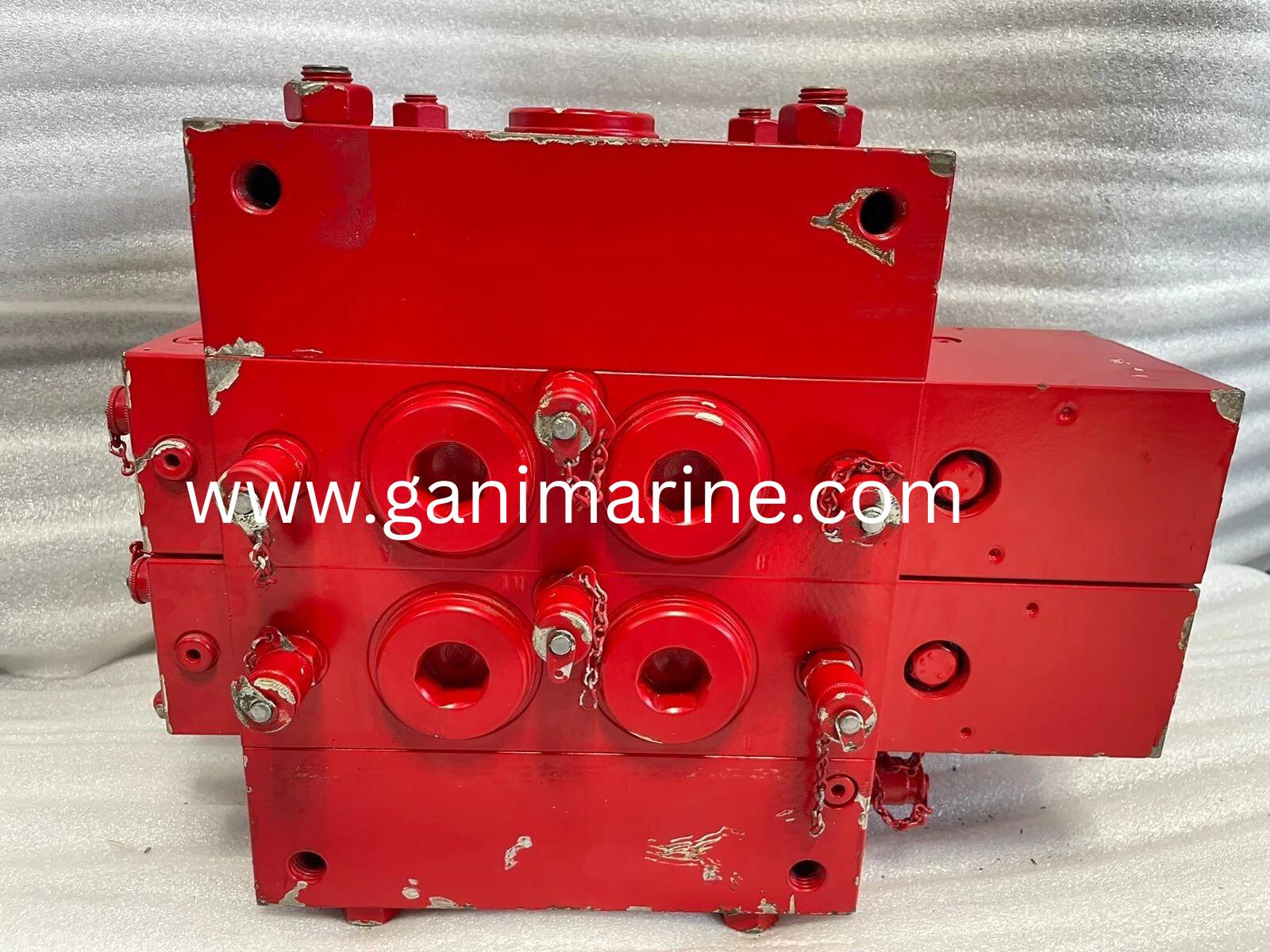

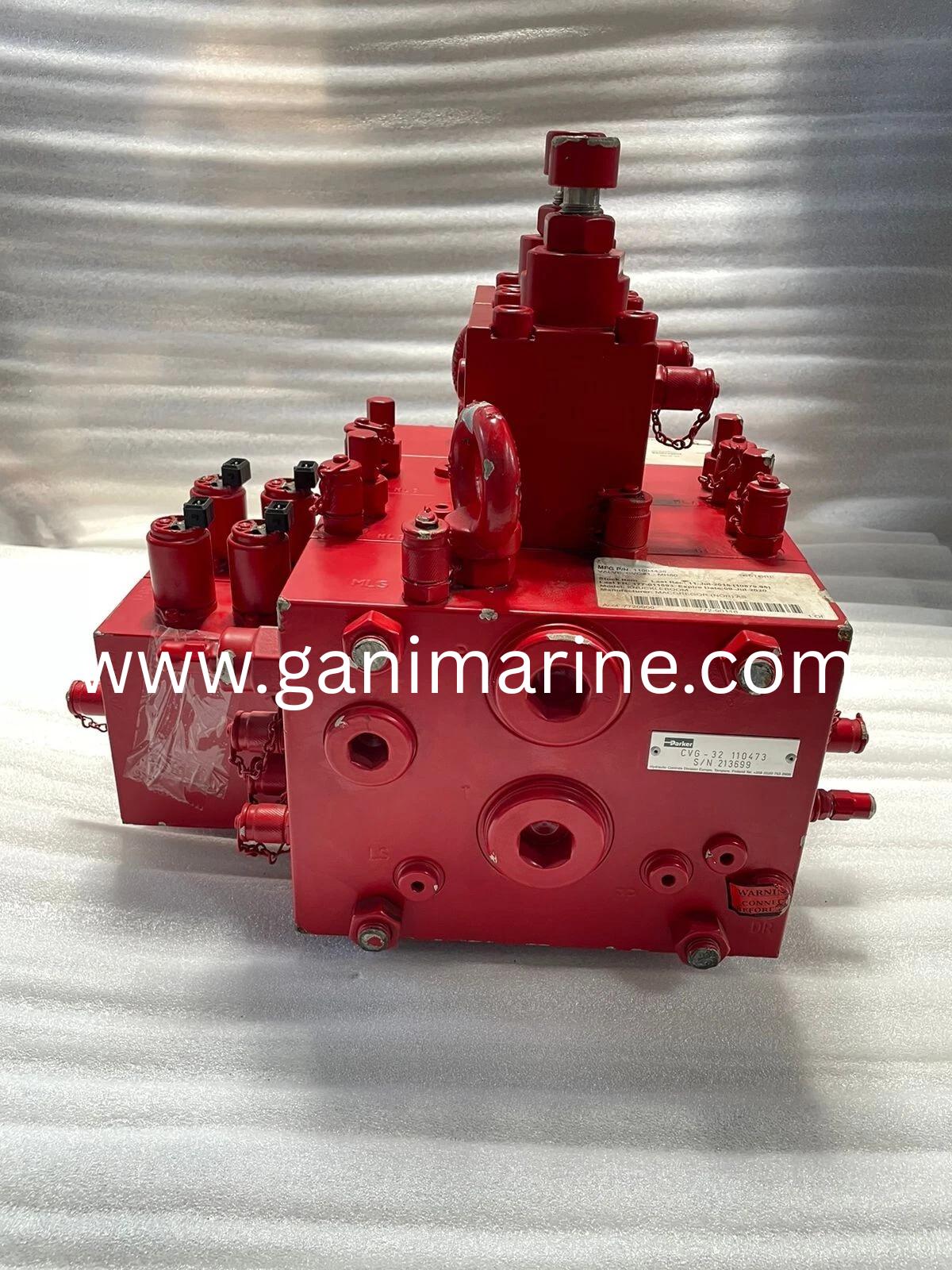

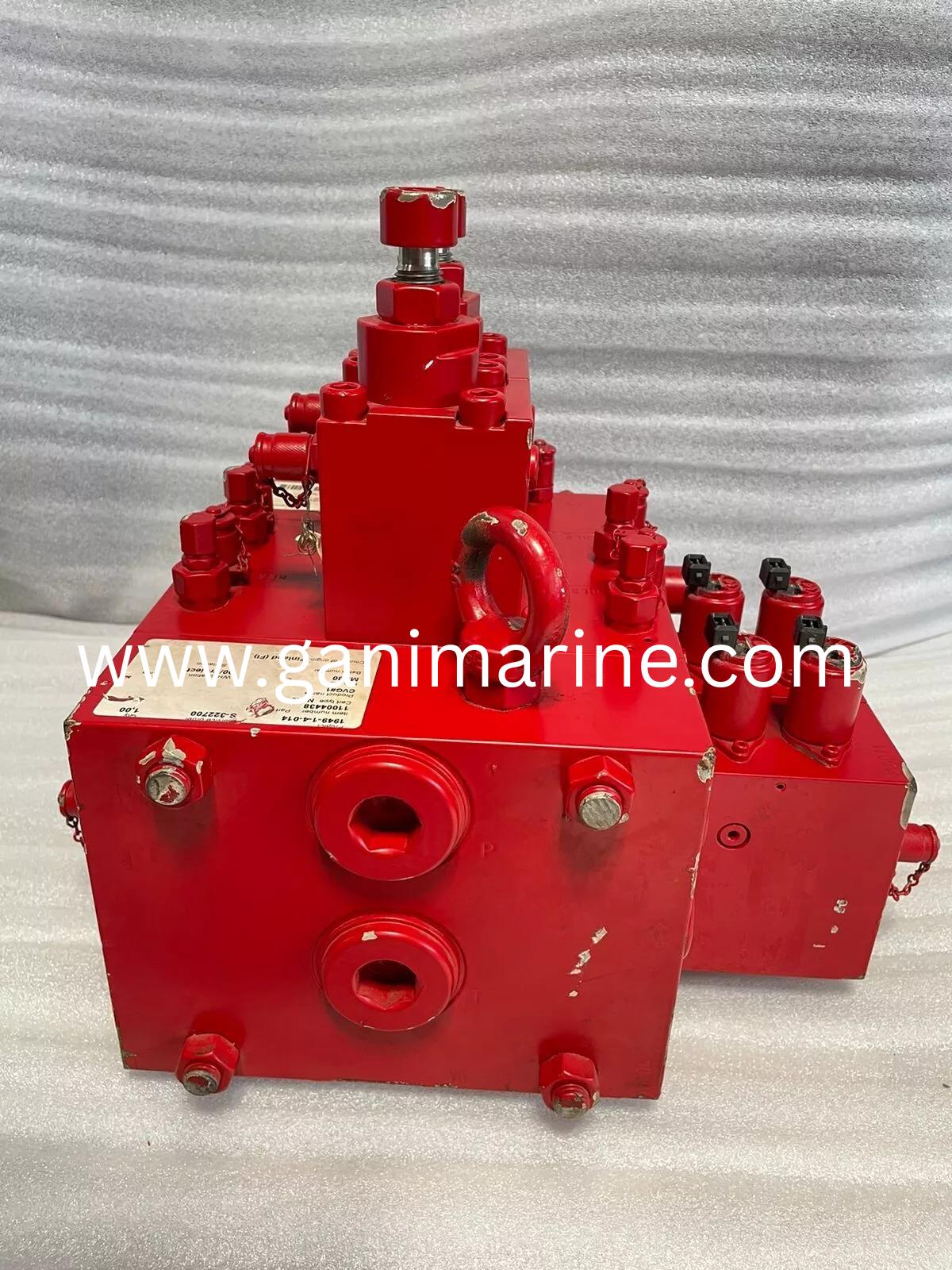

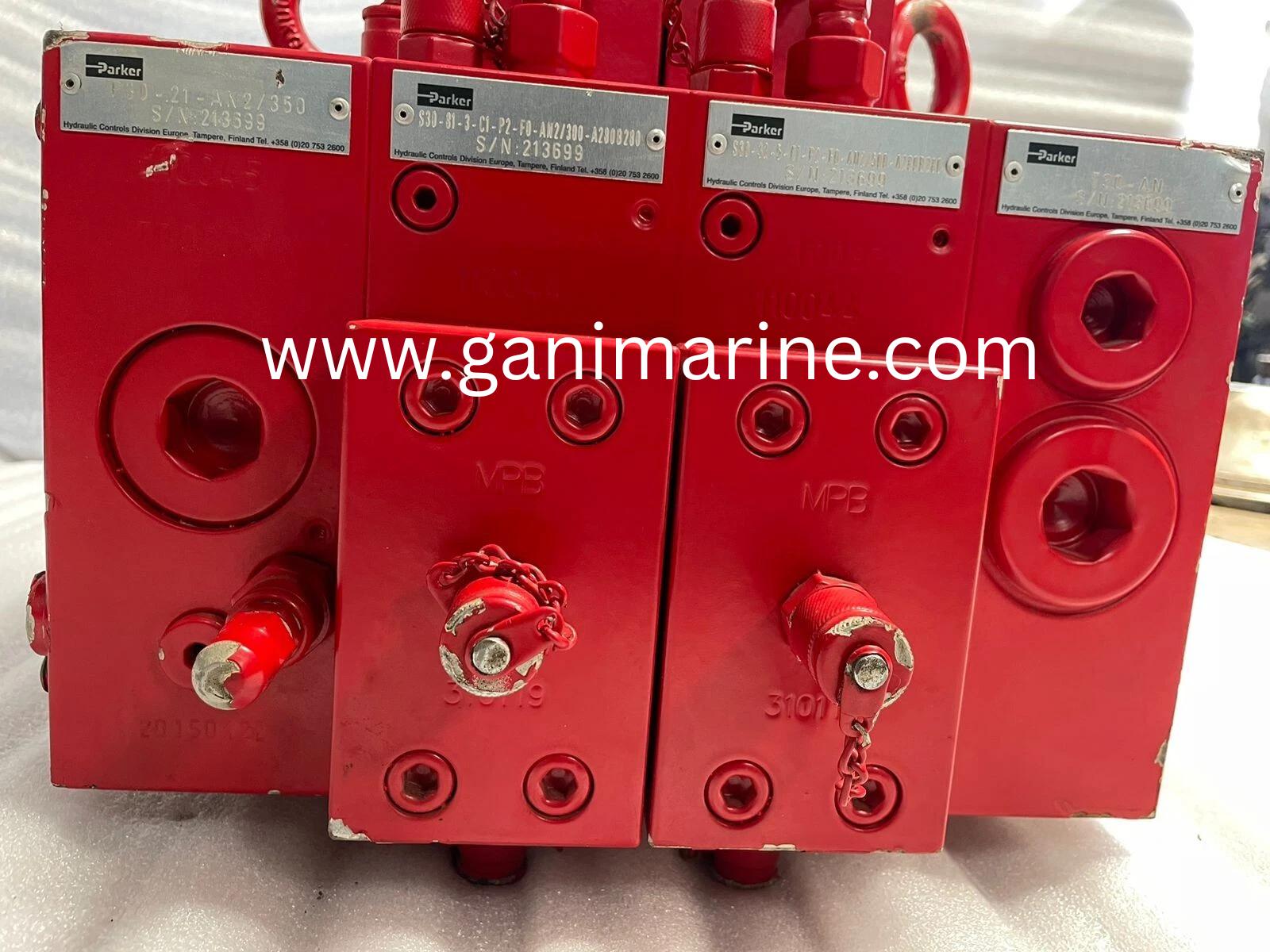

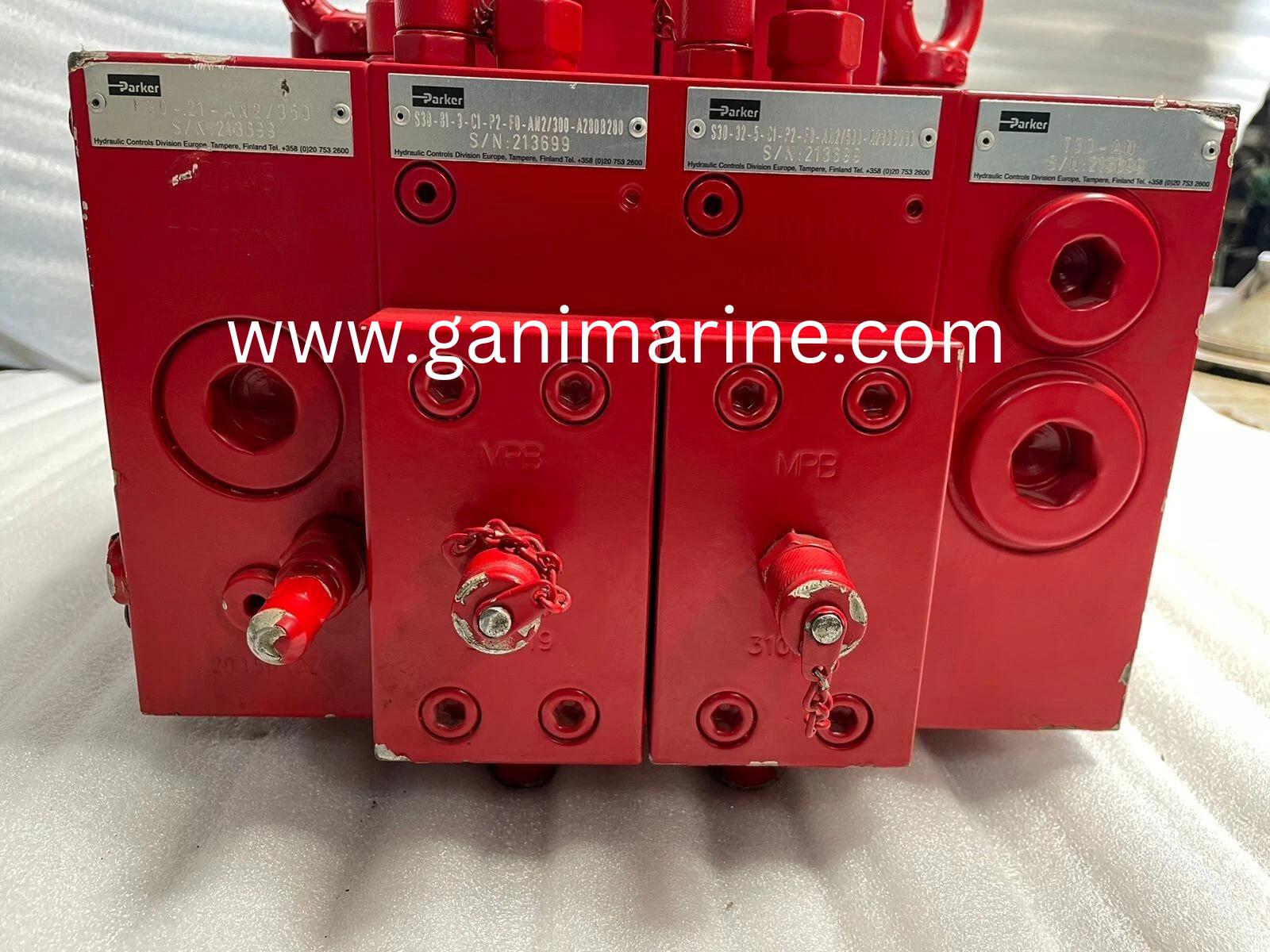

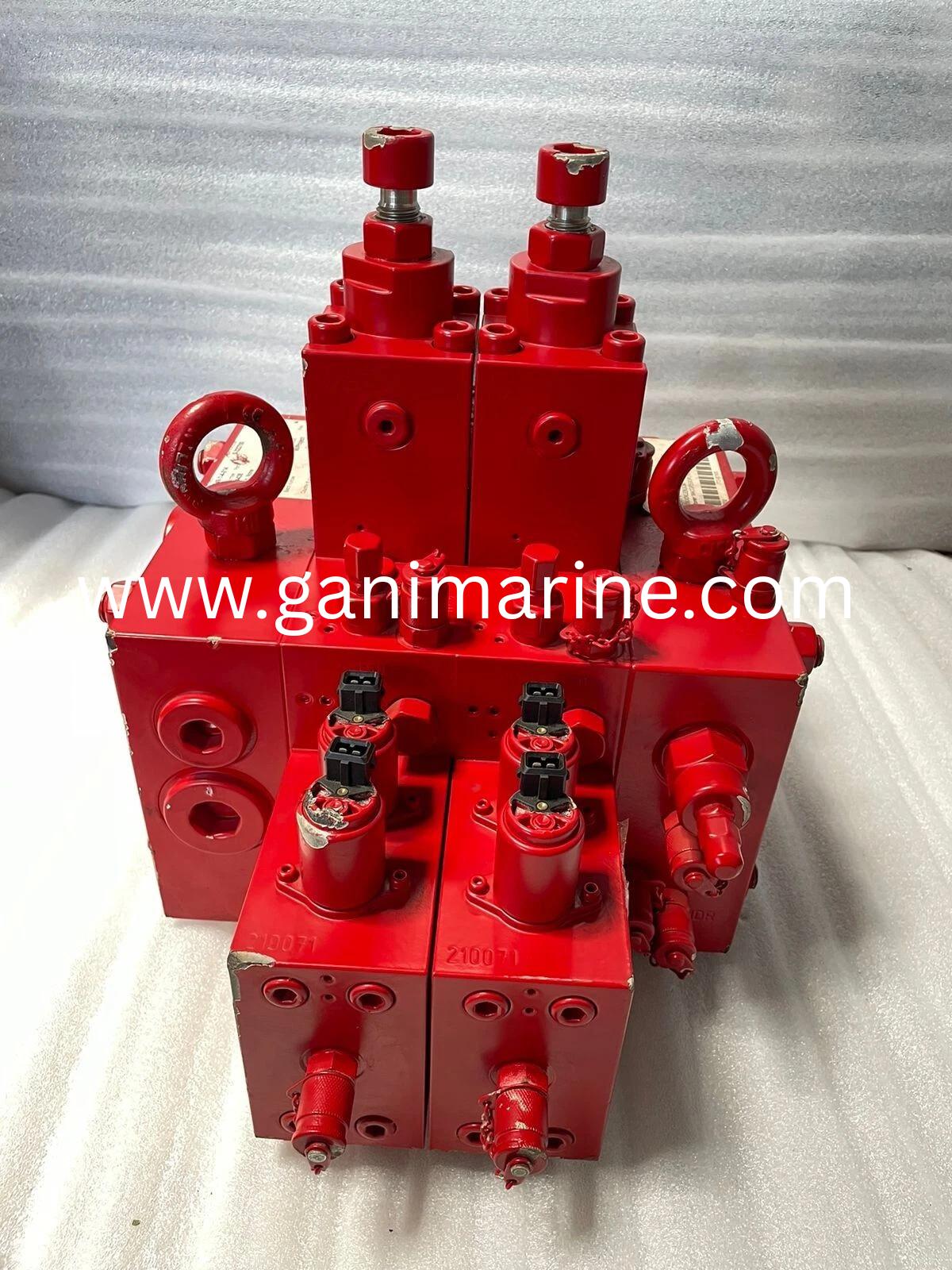

The Parker CVG-32 is a high-performance modular proportional directional control valve assembly from Parker, designed to deliver precise hydraulic flow and direction control in demanding mobile, marine and industrial hydraulic systems. This specific valve is configured with inlet section P-30-21-AN2/350 and control sections S30-81-3-C1-P2-F0-AN2/300-A280B280 and S30-32-5-C1-P2-F0-AN2/500-A280B280 (all serial number 213699) and is ideal for large-flow rate applications up to 500 L/min in CVG30 format.
Built to Parker’s modular CVG range standards, this valve offers excellent controllability, load-sensing compensator design, multiple spool options (spool sizes “81-”, “32-”, etc.), and adaptability for closed-loop proportional control. With a high operating pressure rating and robust construction, the CVG-32 handles challenging environments including marine hydraulics, offshore valves, ship deck machinery, cranes and heavy mobile equipment. ?
Technical Specifications
• Brand / Maker: Parker

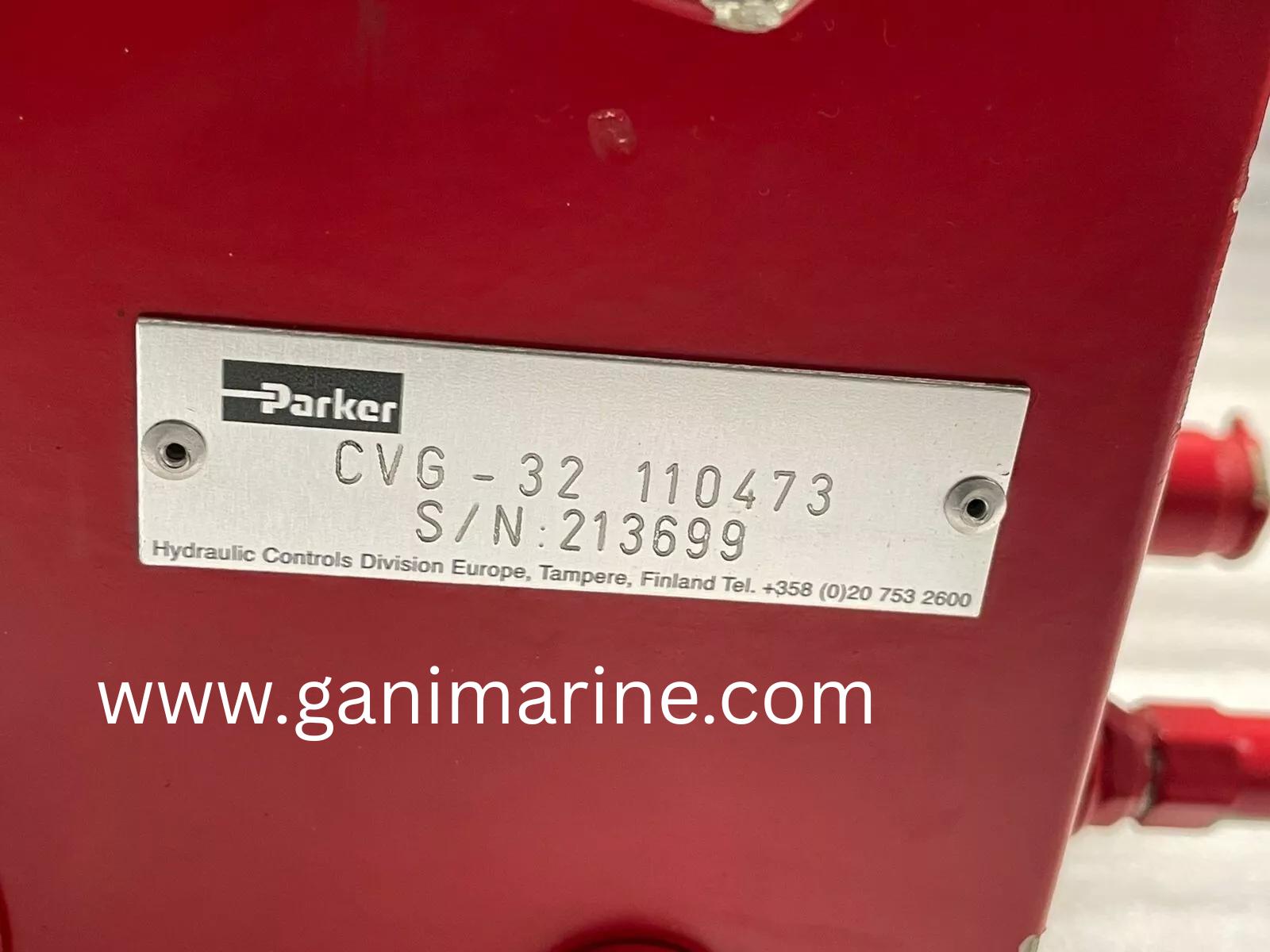

• Model: CVG-32 (Nominal Size CVG30 series)
• Serial Number: 213699

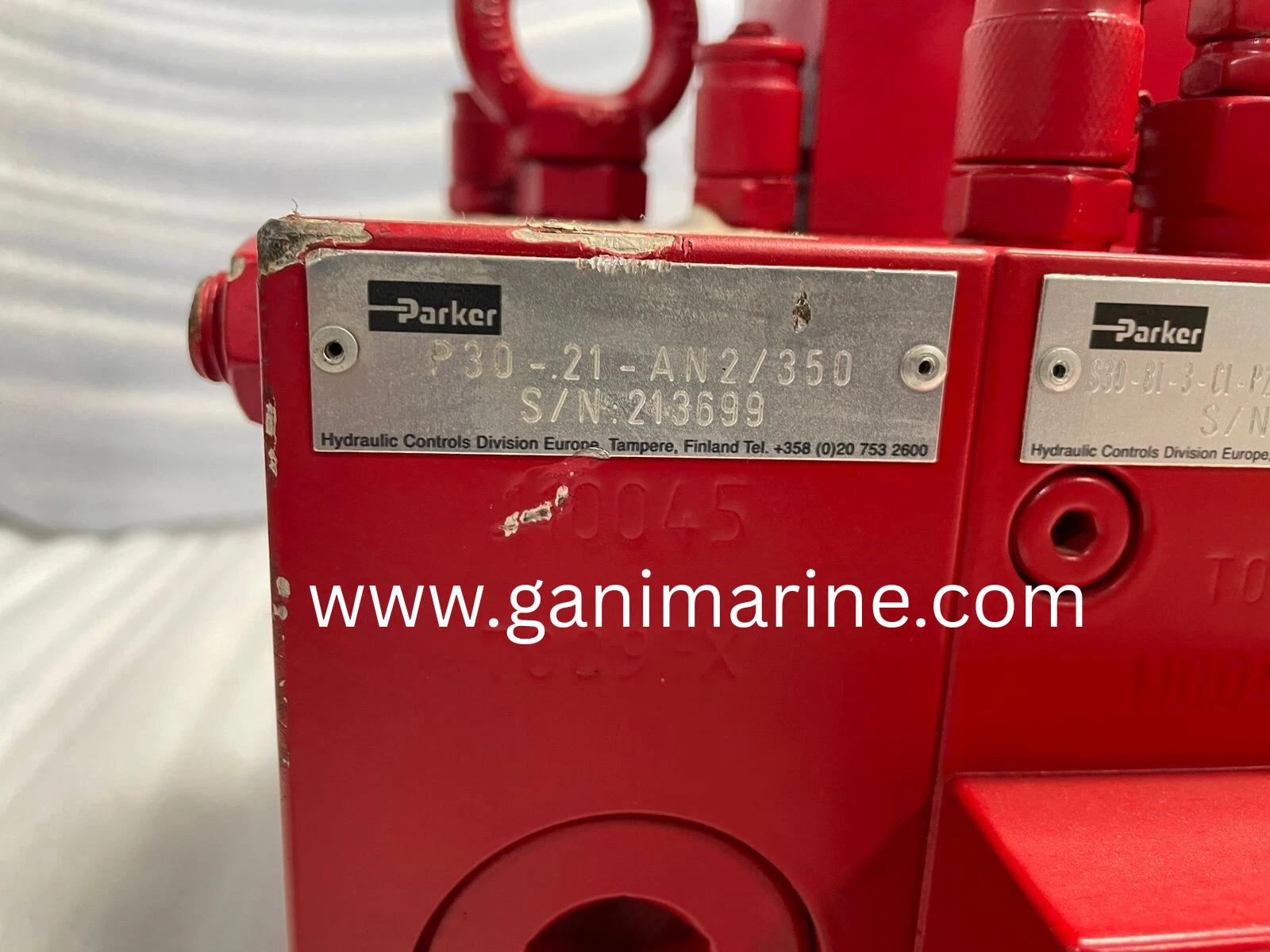

• Inlet Block Model: P-30-21-AN2/350 — Inlet section with pressure relief and pilot oil reducing valve.

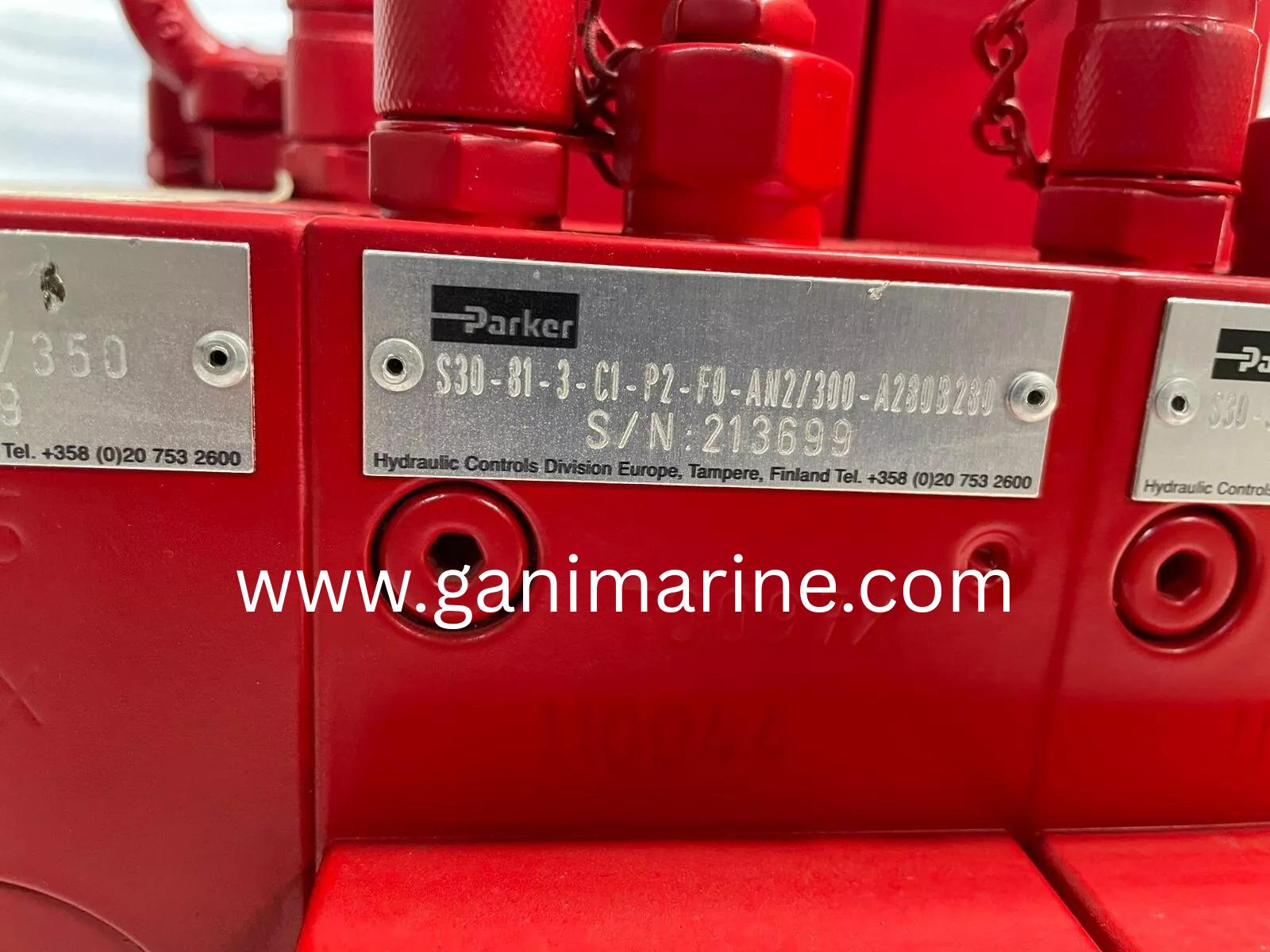

• Control Section 1: S30-81-3-C1-P2-F0-AN2/300-A280B280 — Control spool option “81” for symmetric flow, spool size 03; electro-proportional pilot cover C1; no feedback (F0); flow rated approx 300 L/min.

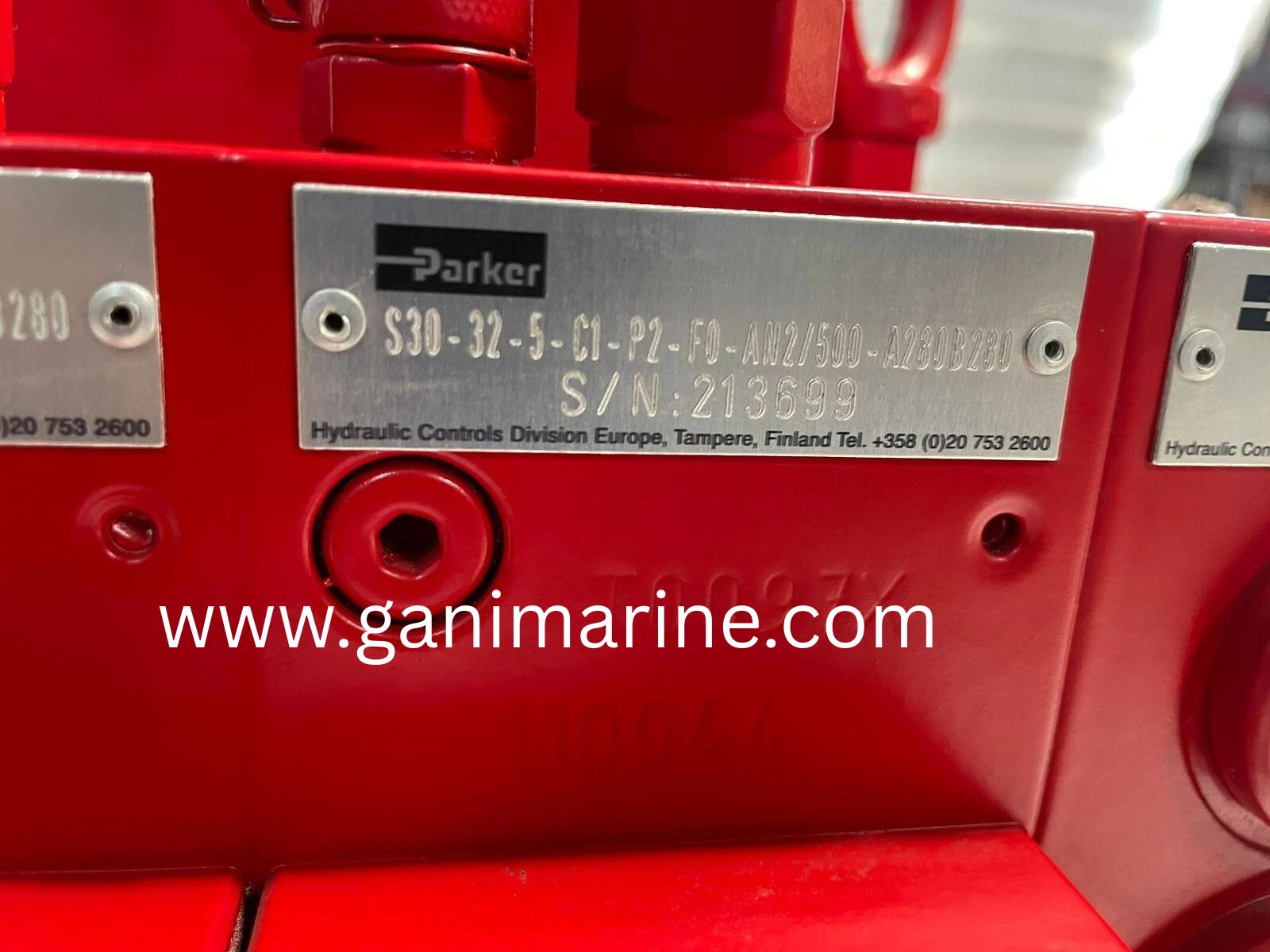

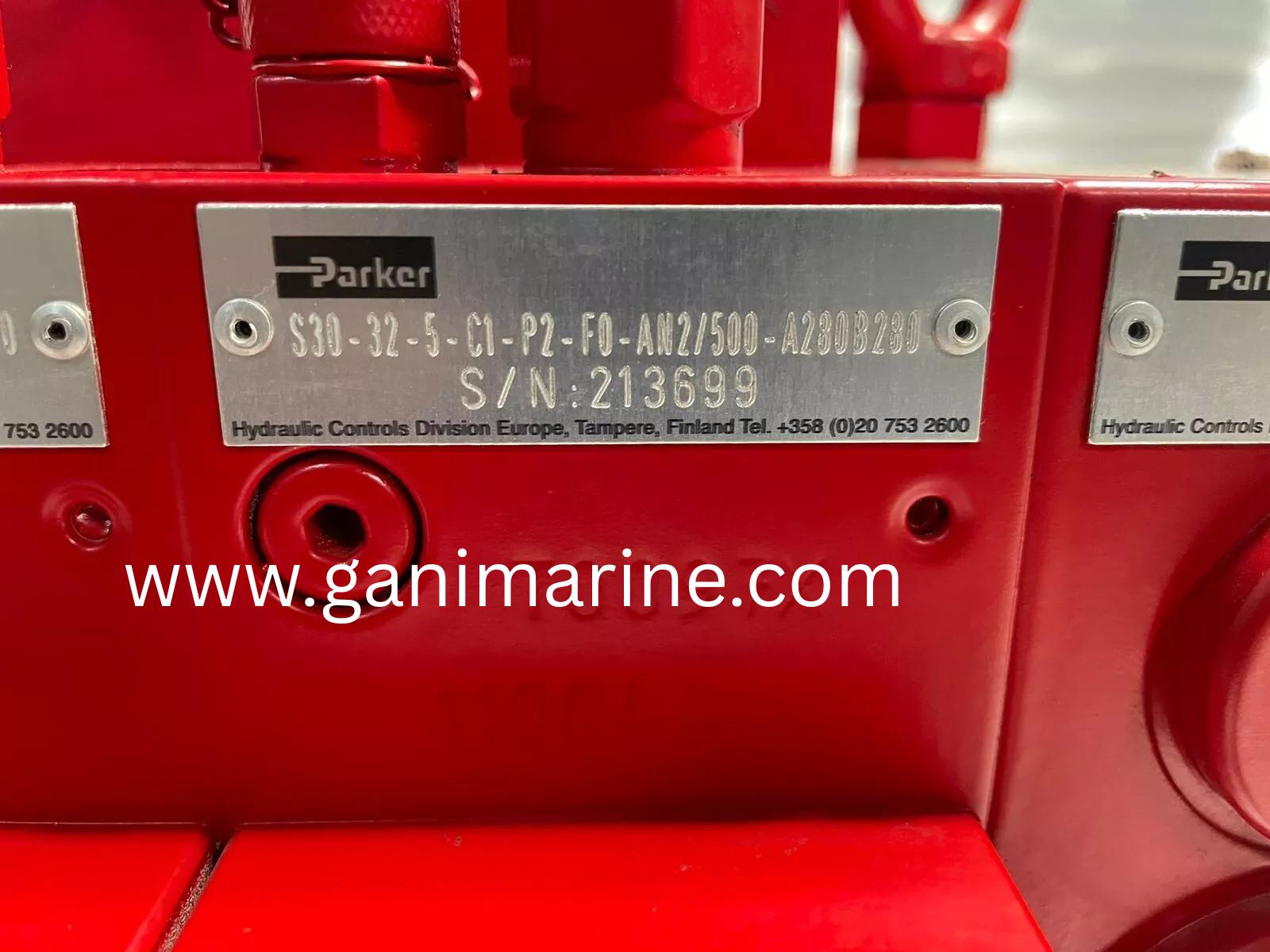

• Control Section 2: S30-32-5-C1-P2-F0-AN2/500-A280B280 — Control spool option “32” for meter-out 03; spool size 05; electro-proportional pilot cover C1; no feedback (F0); flow rated approx 500 L/min (size 30).

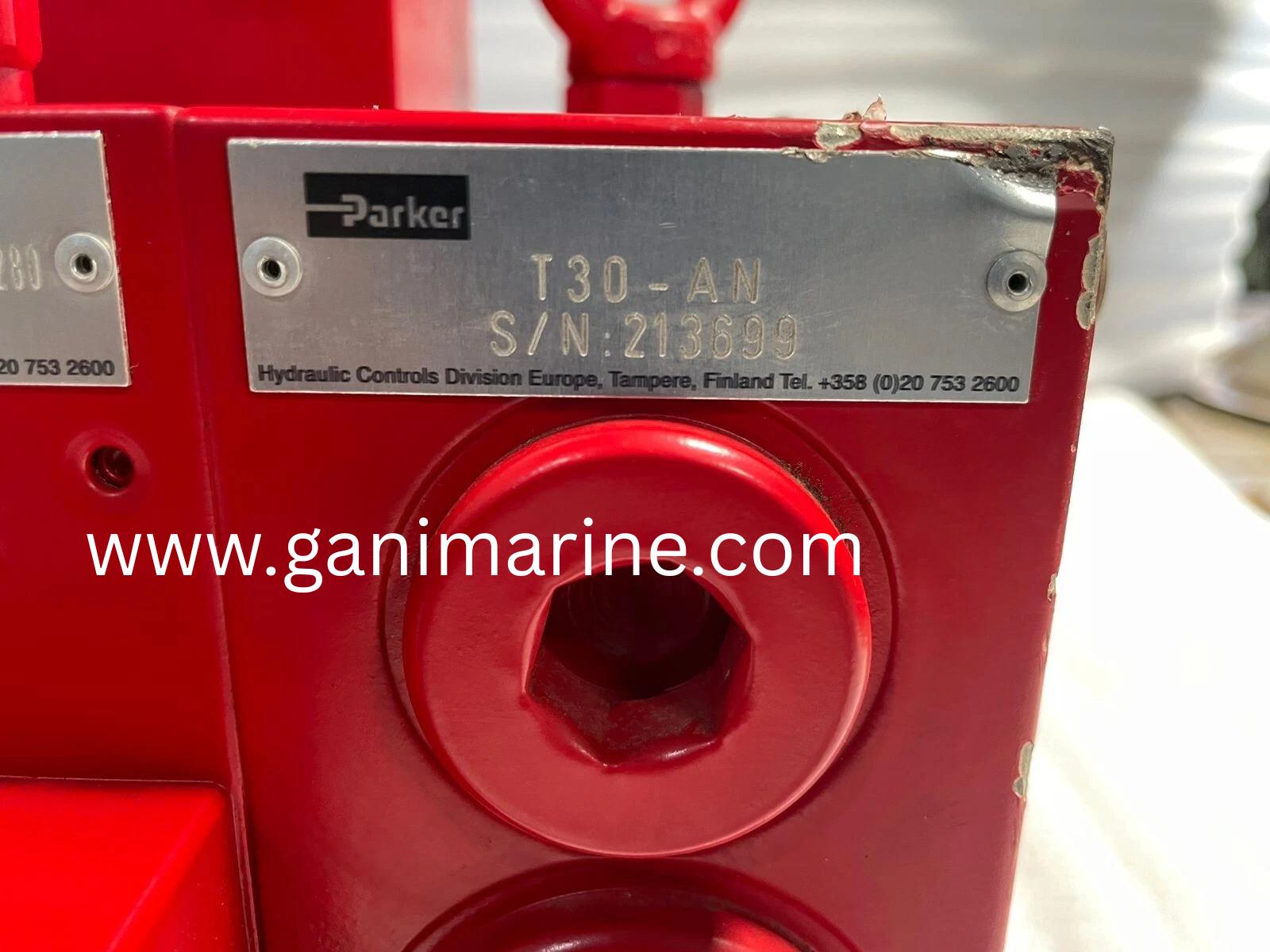

• Outlet/Adapter Section: T30-AN (Outlet section – standard configuration)
• Nominal Size: CVG30 (inlet and control sections)
• Maximum Operating Pressure: Up to 350 bar (peak 420 bar) for CVG series.
• Flow Range: For CVG30 control section – up to 500 L/min; for larger sizes up to 1200+ L/min.
• Pilot Control: Electro-proportional pilot in control sections (C1)
• Feedback: No spool feedback installed (F0) in this configuration
• Modular Design: Stackable control sections, each with independent compensator.
• Fluid Requirements: Mineral hydraulic oil according to DIN 51524/25, viscosity recommended 30-80 cSt.
• Ambient Temperature: ?30 °C to +70 °C typical.
Product Features
• Precision proportional spool control for multi-function hydraulics
• Modular inlet, control and outlet sections – easy to configure for specific requirements
• High flow capability and high operating pressure – suitable for large mobile and marine systems
• Load-sensing compensator design ensures consistent flow regardless of system pressure changes
• Electro-proportional pilot control allows integration with electronic/hydraulic control systems
• Robust construction with marine-capable corrosion-protected components
• Stackable control sections make it service-friendly and configurable for future upgrades
• Designed for demanding offshore, shipboard and industrial hydraulic applications
Applications
• Marine hydraulic control systems – ship deck machinery, winches, cranes
• Offshore hydraulic manifolds and subsea support equipment
• Mobile equipment hydraulics – large excavators, drilling rigs, lifting equipment
• Industrial automation – hydraulic presses, test rigs, material handling
• Directional control for multi-function systems requiring large flow and high precision
