Parker D1VW020HNTWZ-91 Directional Control Solenoid Valve
Parker D1VW020HNTWZ-91 Directional Control Solenoid Valve
The Parker D1VW020HNTWZ-91 (G1621) is a high-performance solenoid-operated directional control valve, engineered for demanding marine, offshore, and industrial hydraulic applications.
Built to Parker’s strict quality standards and manufactured in Korea, this valve provides precise flow control, fast response, and long service life even under high-pressure conditions.
Available globally from Gani Marine Exporter, your trusted source for genuine Parker hydraulic valves and marine automation components.
Technical Specifications
• Brand & Origin: Parker, Made in Korea
• Model Number: D1VW020HNTWZ-91 (G1621)
• Electrical Specifications: 220V AC, 60 Hz, 0.15 A
• Power Consumption: 30 W
• Duty Cycle: 100% continuous (100% DUTY)
• Protection Rating: IP65 (dust-tight and water jet resistant)
• Maximum Pressure:
?• Ports P, A, B: 5000 PSI (350 Bar)
?• Port T (Tank): 1500 PSI (100 Bar)
• Flow Control Type: 4/2 or 4/3 way directional valve
• Mounting: Subplate / manifold mount (ISO 4401 interface)
• Medium: Hydraulic oil (viscosity 15–200 cSt recommended)
• Coil Type: Wet-pin AC solenoid
• Response Time: Approx. 60–80 ms
• Weight: Approx. 3.8 kg
Product Overview
The Parker D1VW020HNTWZ-91 is a solenoid-operated directional control valve that directs hydraulic flow between ports for actuator or motor control.
Its IP65-rated enclosure and high-pressure capacity (up to 5000 PSI) make it ideal for rugged environments such as ship engine rooms, offshore platforms, and industrial hydraulic power units.
The model features a proven Parker valve body and precision-machined spool assembly for stable operation, minimal leakage, and extended service life.
Applications
• Marine Hydraulic Systems – Used in valve control, steering, and deck machinery.
• Offshore & Subsea Equipment – For hydraulic cylinder and winch control.
• Industrial Power Units – Enables proportional or on/off flow control in automation systems.
• Ship Repair & Retrofitting – Ideal for replacement in Parker-based or compatible systems.
• Mobile Machinery & Cranes – For reliable hydraulic actuation under varying loads.
Key Features
• High-pressure rating (up to 5000 PSI) for heavy-duty operations.
• 100% duty cycle for continuous performance in critical systems.
• Dustproof and waterproof design (IP65) for marine and outdoor conditions.
• Parker-engineered solenoid coil ensuring efficient switching and minimal heat build-up.
• 4/2 or 4/3 way configuration for versatile control circuit integration.
• Precision spool design for stable flow and smooth operation.
• Durable construction ensuring long operational life and corrosion resistance.

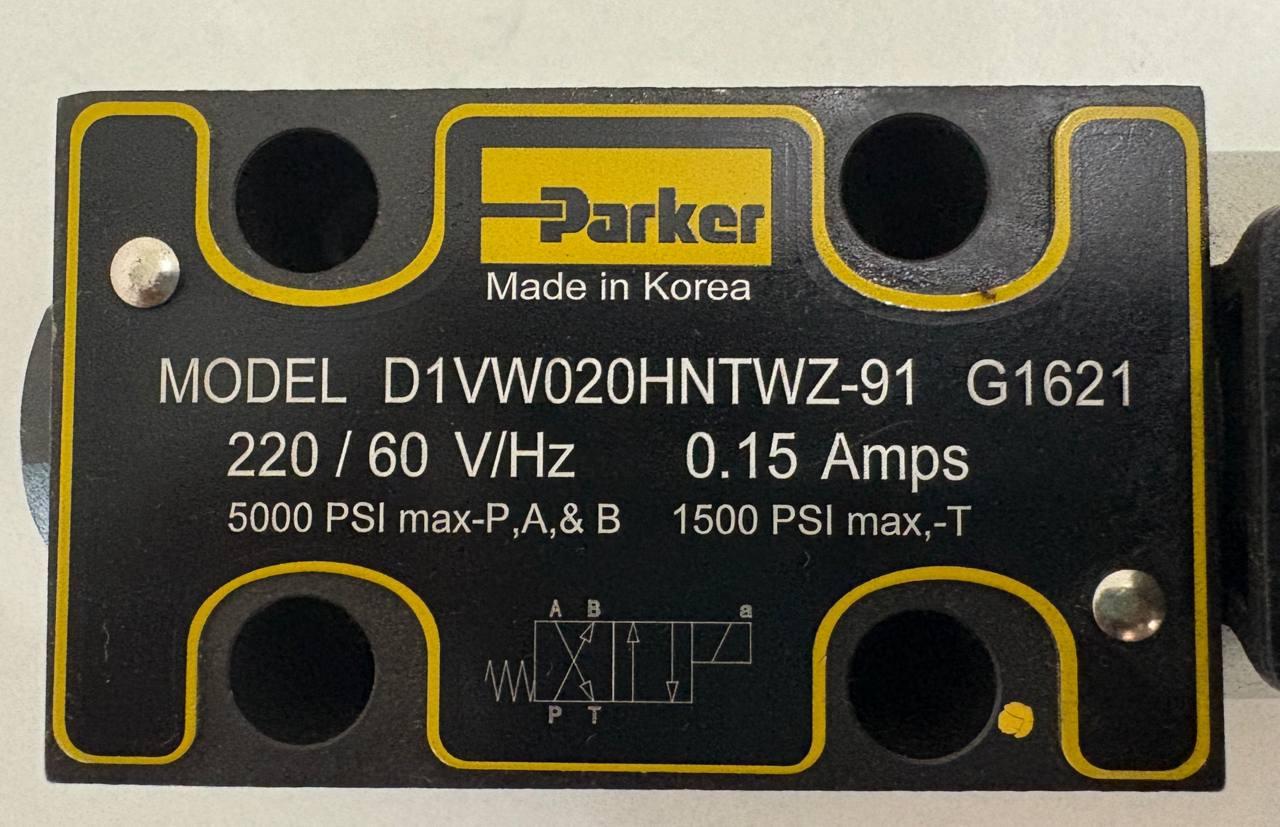

Visual Identification
• Label clearly marked “Parker D1VW020HNTWZ-91 (G1621)”
• Includes schematic diagram symbol for quick circuit identification.
• Housing labeled with electrical and pressure details (220V AC, 60Hz, 30W).
• Coil and connector designed to meet IEC standards for safety and reliability.
Marine & Offshore Application Benefits
The Parker D1VW020HNTWZ-91 directional valve is specifically suitable for marine automation, deck machinery, and engine room hydraulic systems where reliable solenoid actuation is crucial.
It ensures smooth directional switching, high flow efficiency, and safety compliance for ship and offshore platform operations.
