LIQUID METER SZ-PPV 100-16
LIQUID METER SZ-PPV 100-16

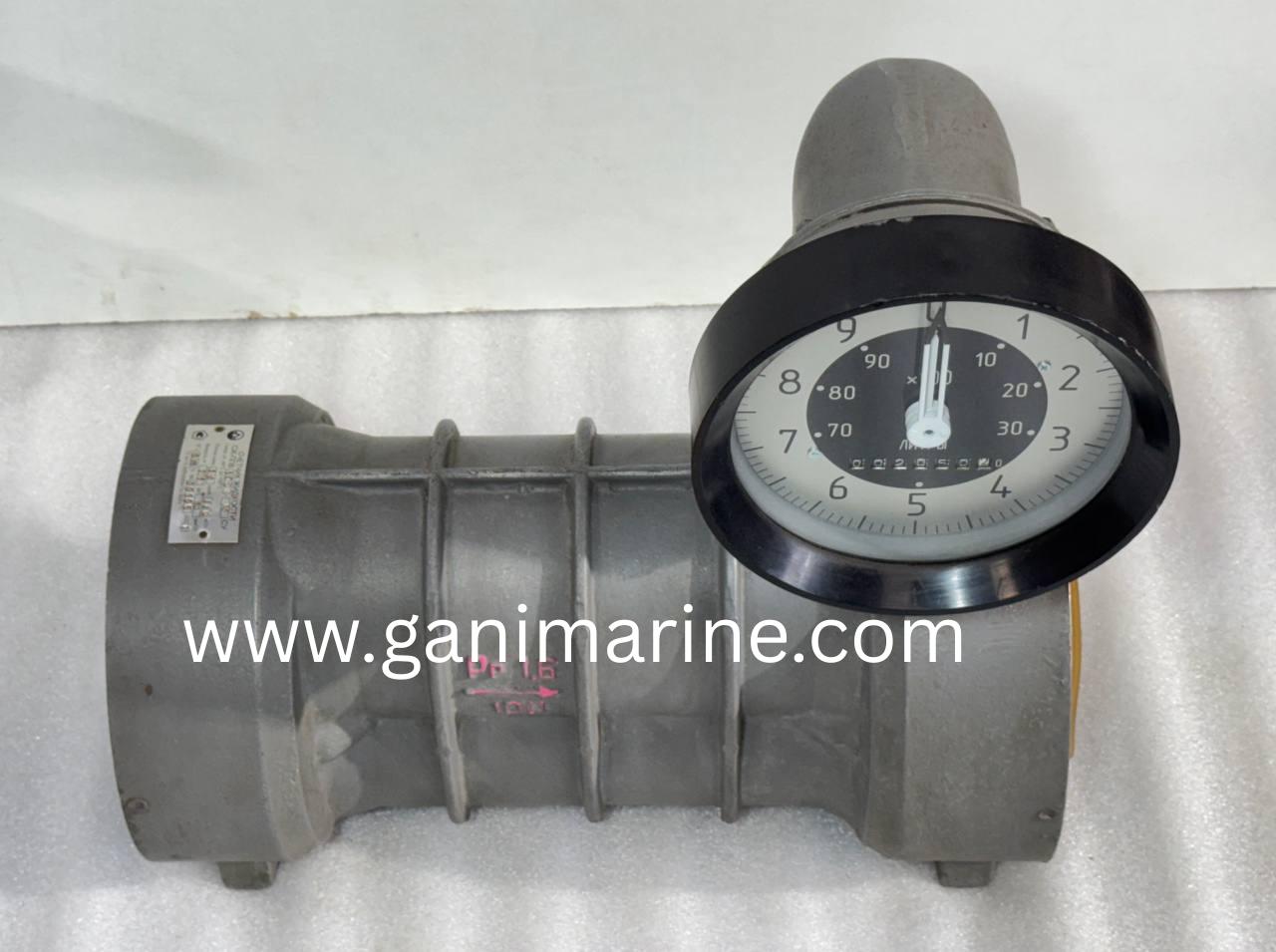

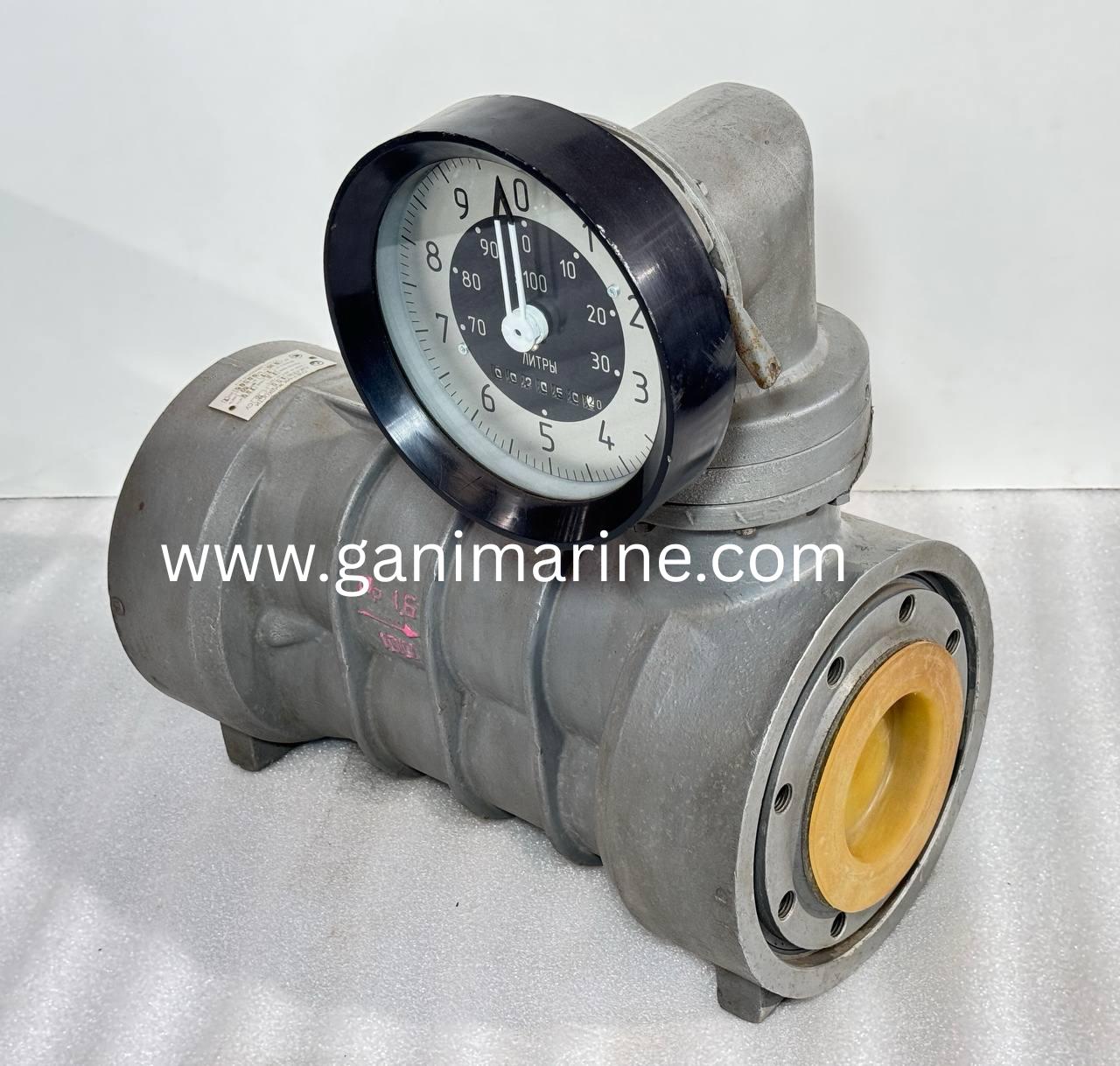

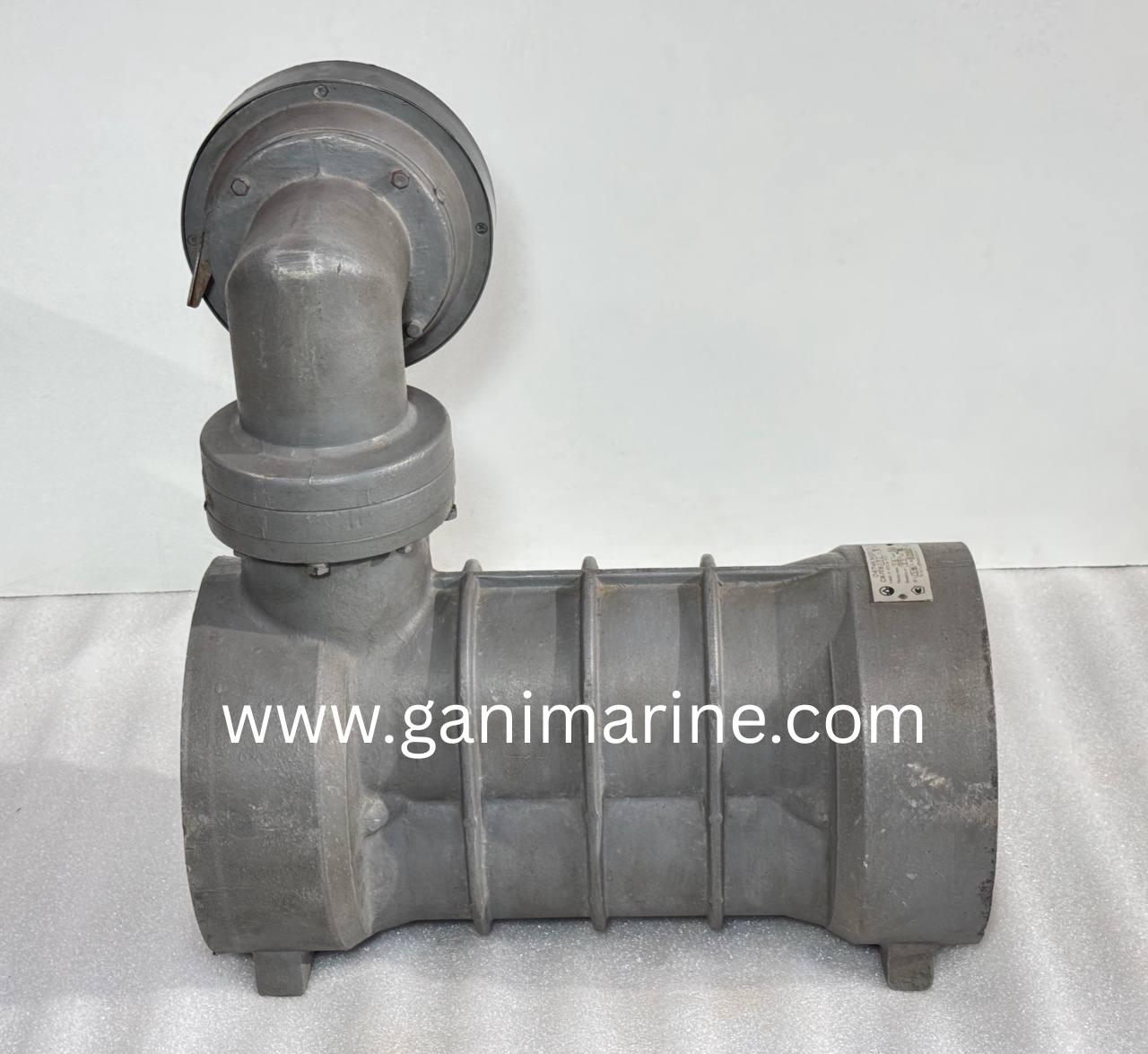

The ??-??? 100-16 (SZ-PPV 100-16) is a rugged, screw-type/mechanical liquid flow meter designed for accurate volume measurement of non-aggressive Newtonian fluids. With a DN 100 (100 mm) nominal diameter, flow range of 18–180 m³/h, and pressure rating up to 16 bar, this meter is ideal for marine, industrial and fuel-handling systems. Supplied globally by GANI MARINE, your trusted supplier for high-grade hydraulic and fluid control instruments.
Technical Specifications

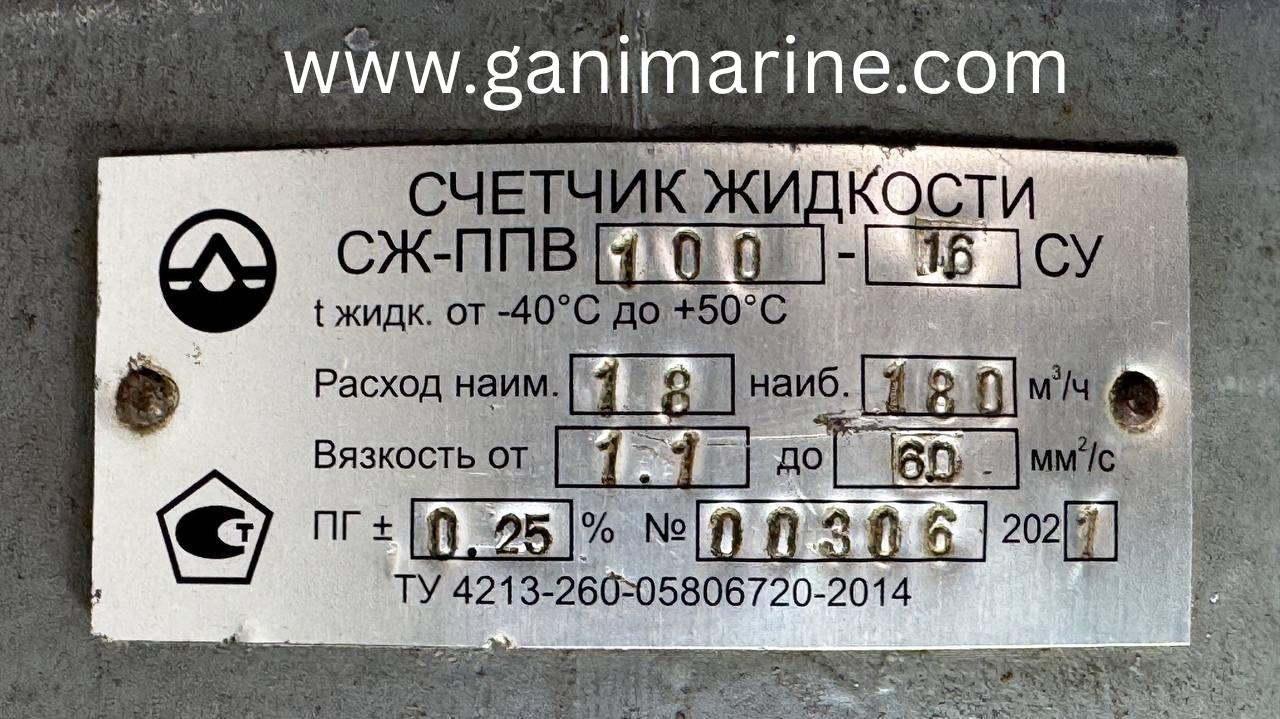

• Type / Model: ??-??? 100-16 (SZ-PPV 100-16)
• Manufacturer: PromPribor / Neftemash (Russian flow meter manufacturer)
• Nominal Diameter (DN): 100 mm
• Max Working Pressure: 1.6 MPa (~16 bar) for model 100-1.6; likely same for “16” version
• Flow Range: 18 … 180 m³/h
• Kinematic Viscosity Range: ~0.55 … 300 cSt (as cited in manual for similar models)
• Accuracy / Measurement Error: ±0.25% (for “SU” version)
• Temperature Range: –40°C … +50°C
• Meter Type / Principle: Screw-type (“????????” flow counter)

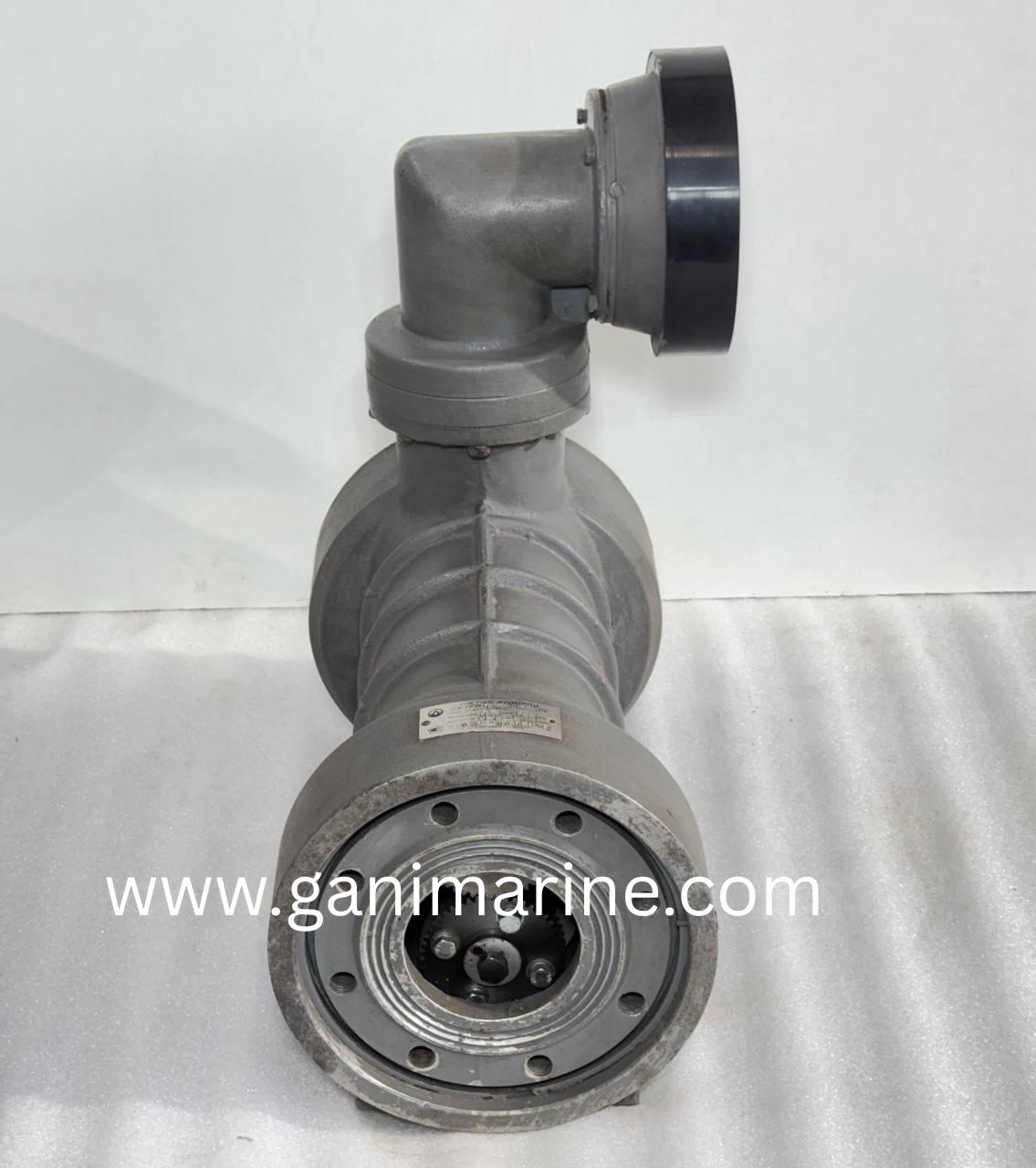

• Connection / Mounting: Flanged connection, DN 100 ?
• Housing Material: Corrosion-resistant alloy (often cast aluminium or similar) as per manufacturer data

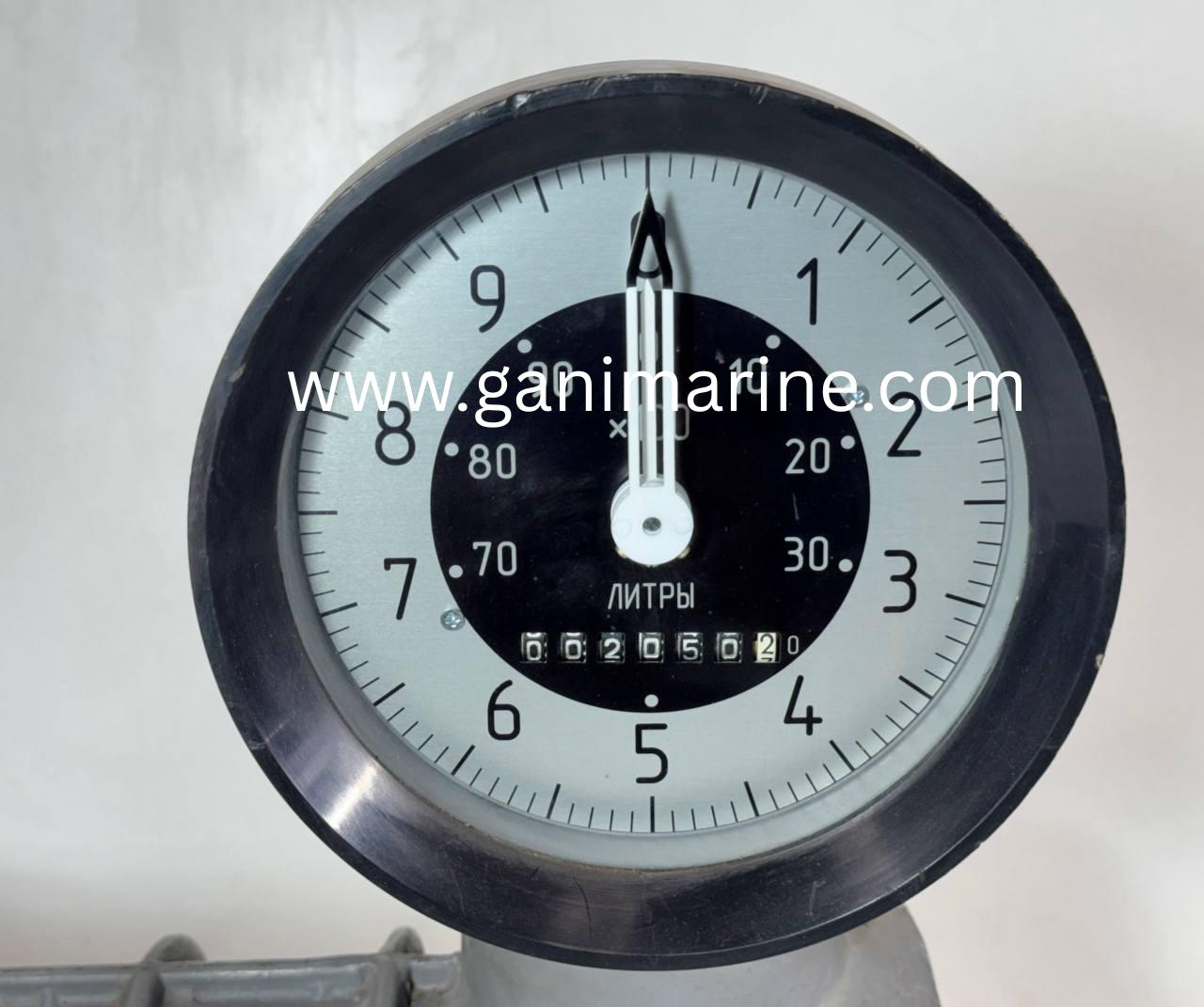

• Register / Display Type: Mechanical (“??” = mechanical counting “??????? ??????????”)
• Installation Note: Requires a strainer / filter before meter; recommended upstream filter mesh size ~0.1 mm
Key Features & Benefits
• Durable and reliable: Uses a screw (twin-screw) mechanism, built to sustain long-term operation in industrial and marine conditions.
• Wide flow range: 18–180 m³/h makes it suitable for large-volume systems.
• High precision: ±0.25% measurement error ensures accurate volume accounting, especially useful in custody transfer, fuel bunkering, and metering stations.
• Harsh environment capable: Operational from –40 °C to +50 °C, suited for cold climates.
• Robust pressure tolerance: Rated up to 16 bar, adequate for many process and hydraulic systems.
• Low maintenance: Mechanical counter (“SU”) is simple and reliable.
• Non-aggressive fluid compatibility: Works with Newtonian liquids like diesel, oil, fuel, light hydrocarbons.
• Global Supply: Available via GANI MARINE, enabling supply to marine, offshore, and industrial clients.
Applications
• Marine bunkering and fuel oil transfer systems
• Deck machinery / vessel fuel and lube oil metering
• Industrial fluid handling — oils, fuels, process liquids
• Onshore fuel terminals or storage depots
• Hydraulic / power units where fluid consumption monitoring is needed
• Mobile refuelling trucks or portable fuel metering stations
Global Export – GANI MARINE
GANI MARINE is a global hydraulic equipment and instrumentation supplier, offering genuine flow meters like the ??-??? 100-16 (SZ-PPV 100-16) with full export support, calibration certificates, and documentation
