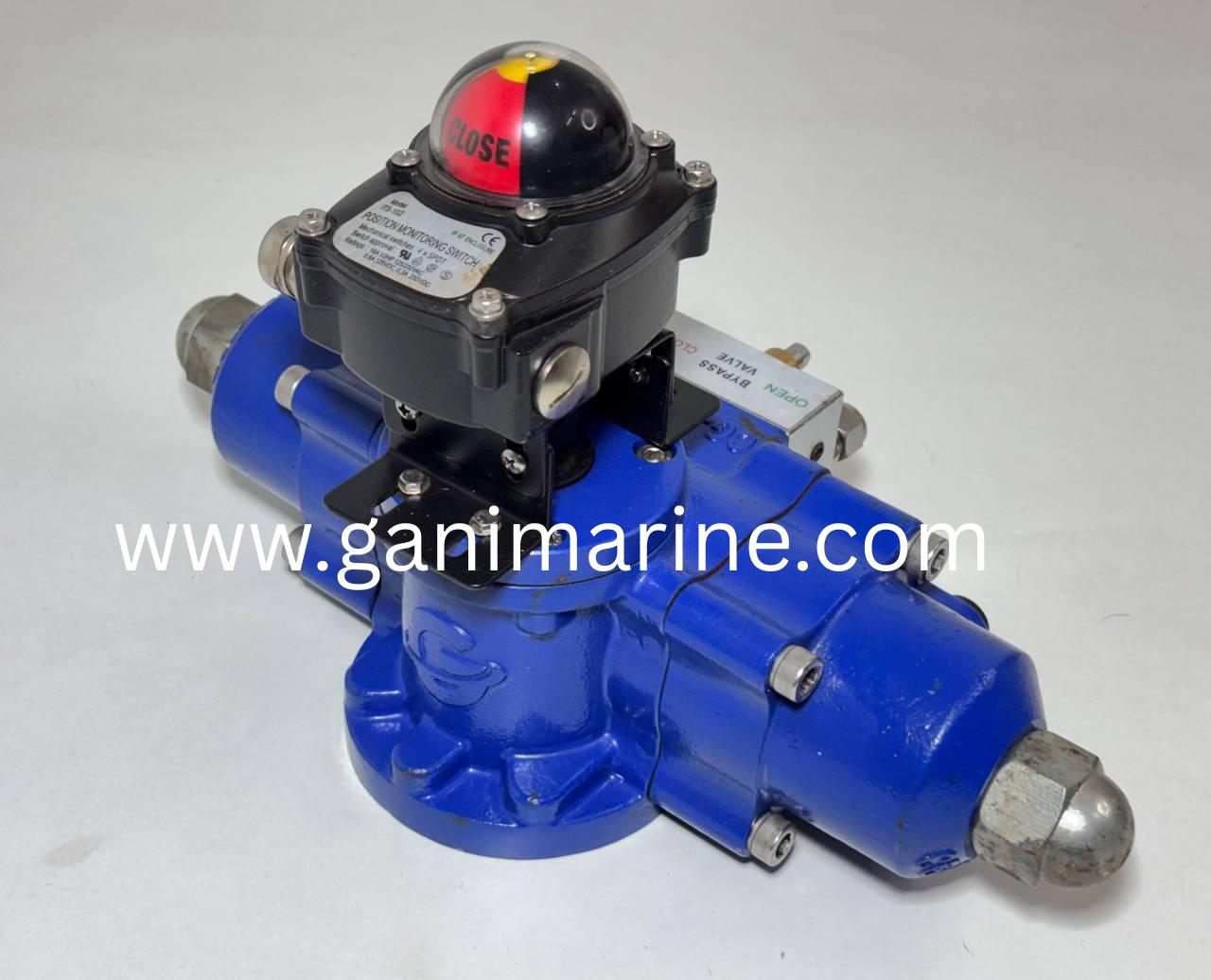

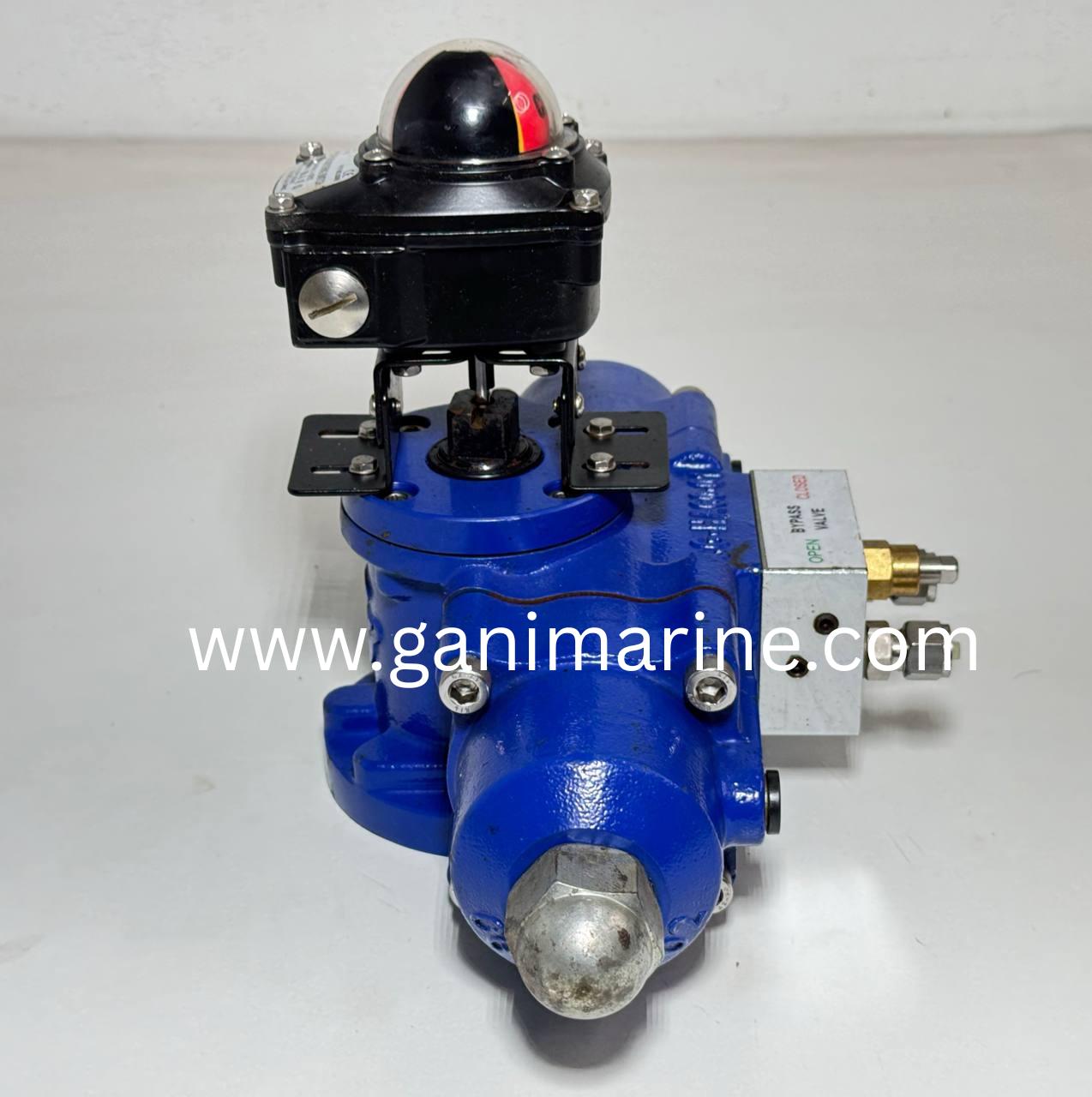

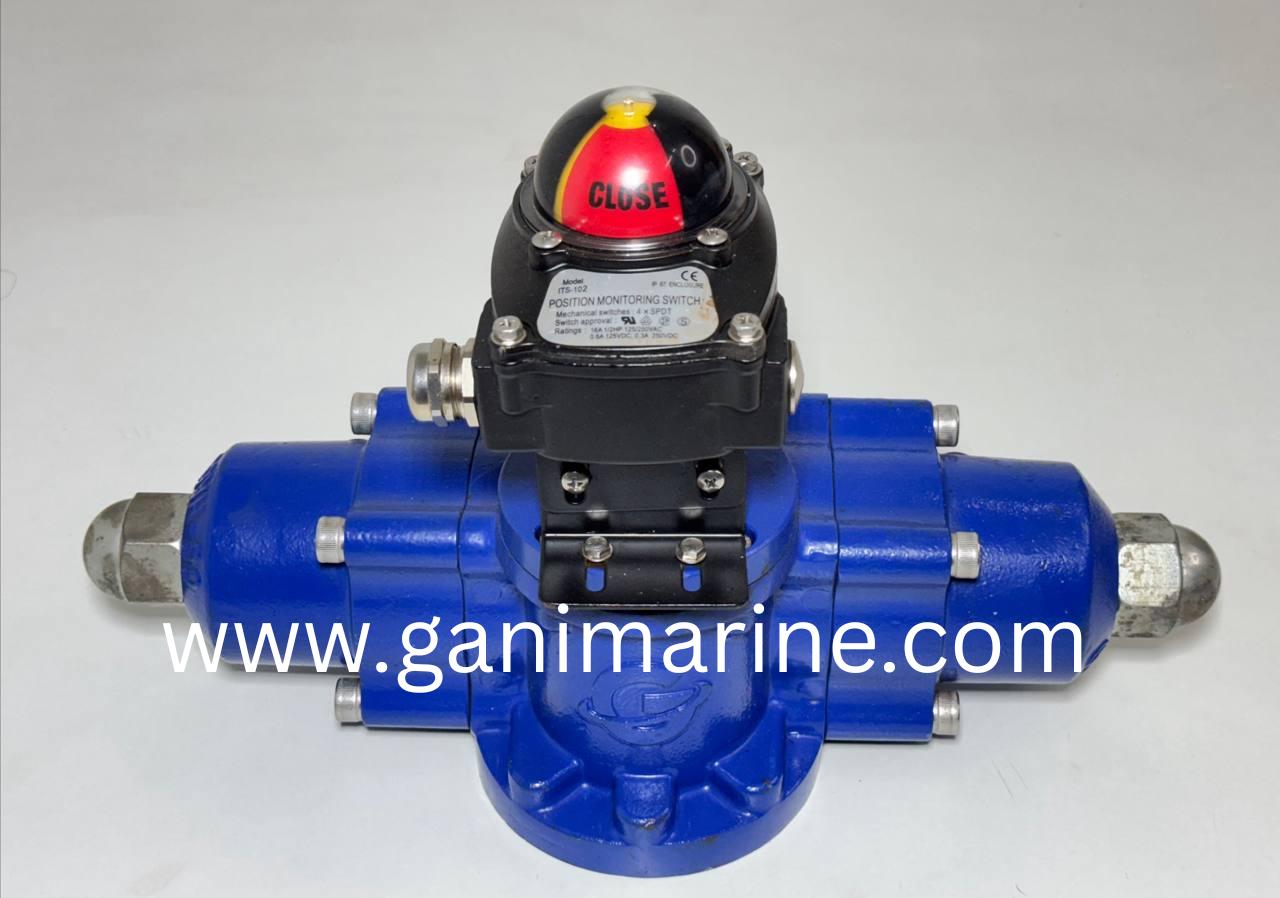

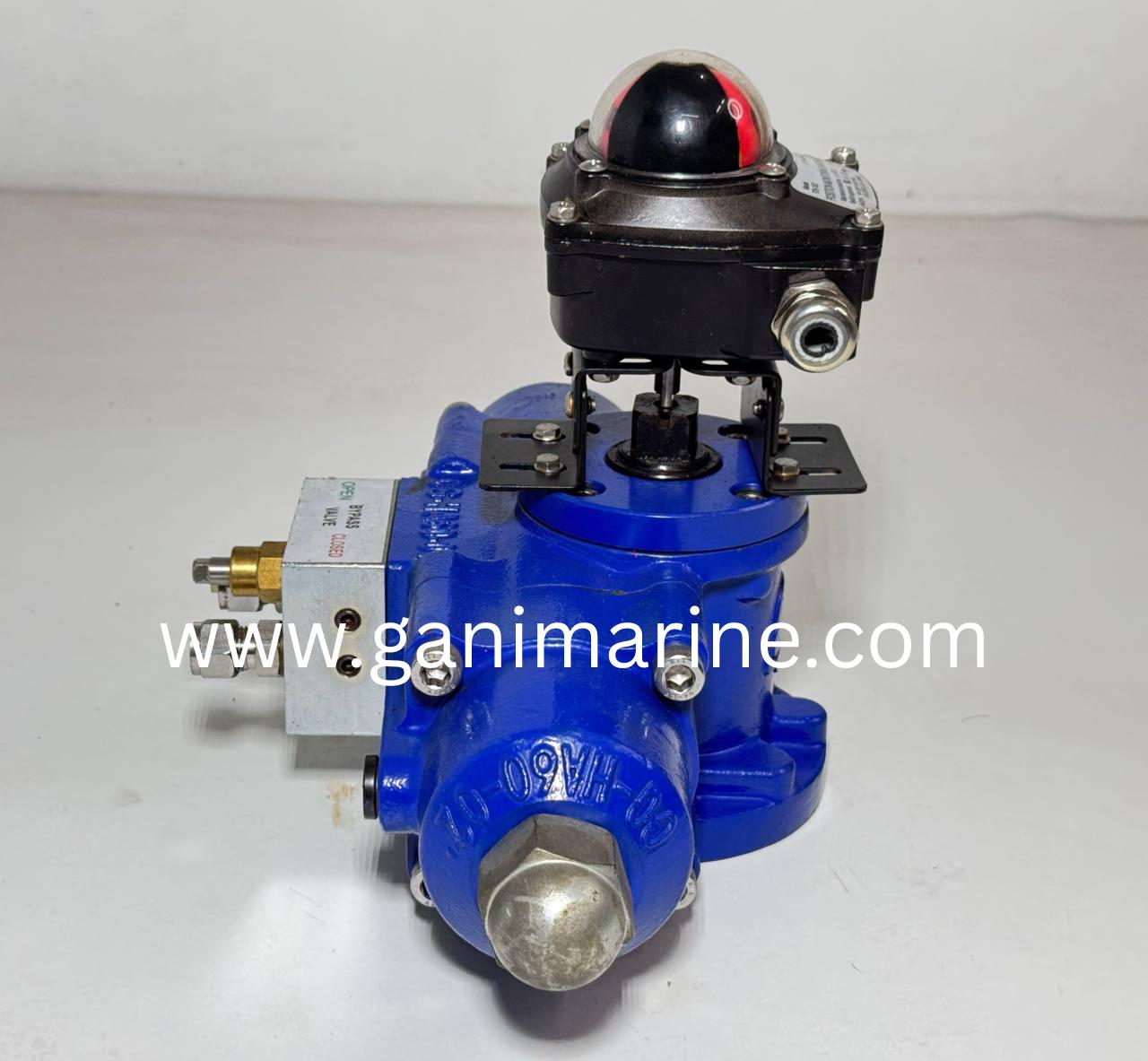

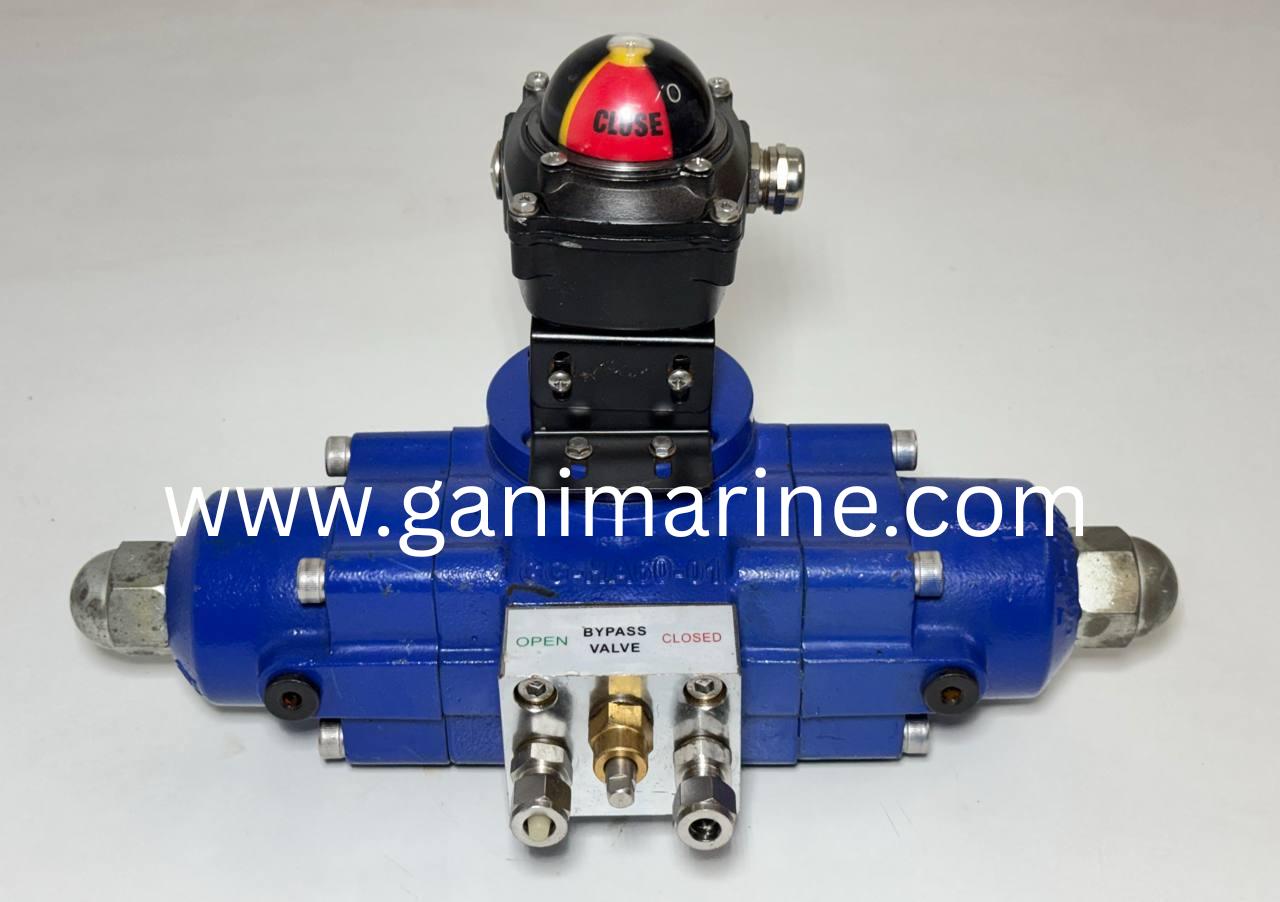

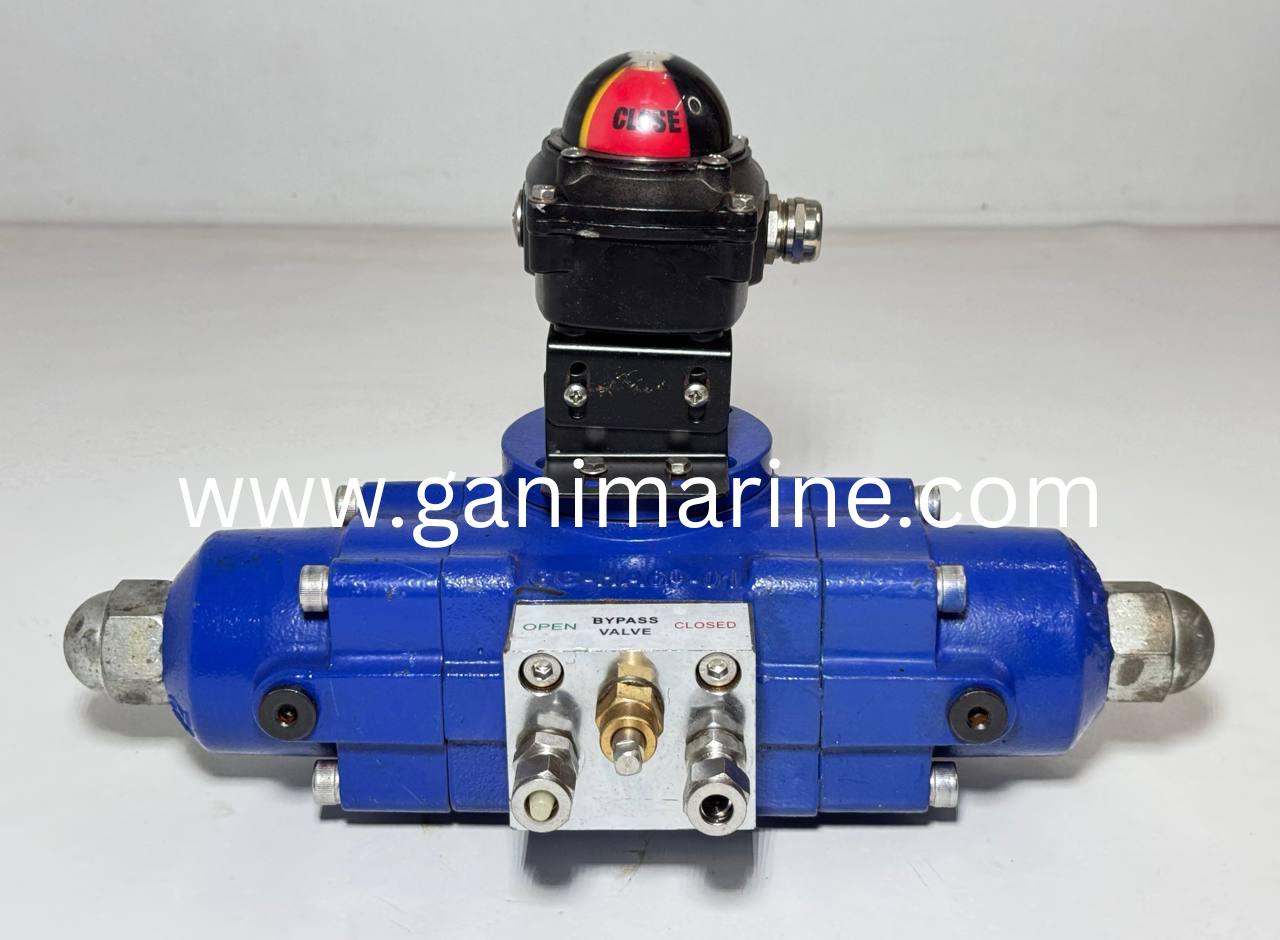

ITS-102 Position Monitoring Switch CG-HA60-01 Actuator

The TS-102 Position Monitoring Switch with CG-HA60-01 Hydraulic Actuator is an industrial-grade valve automation solution designed for precise quarter-turn valve control and monitoring. The switch provides visual (dome indicator) and electrical feedback using 4 × SPDT switches, while the actuator delivers high torque (up to 690 Nm) for reliable valve operation under demanding conditions. Built with IP67 protection, ISO mounting flanges, and wide temperature tolerance (-20°C to +80°C), this combination is ideal for oil & gas, petrochemical, marine, power plants, and water treatment industries.

---

Technical Specifications

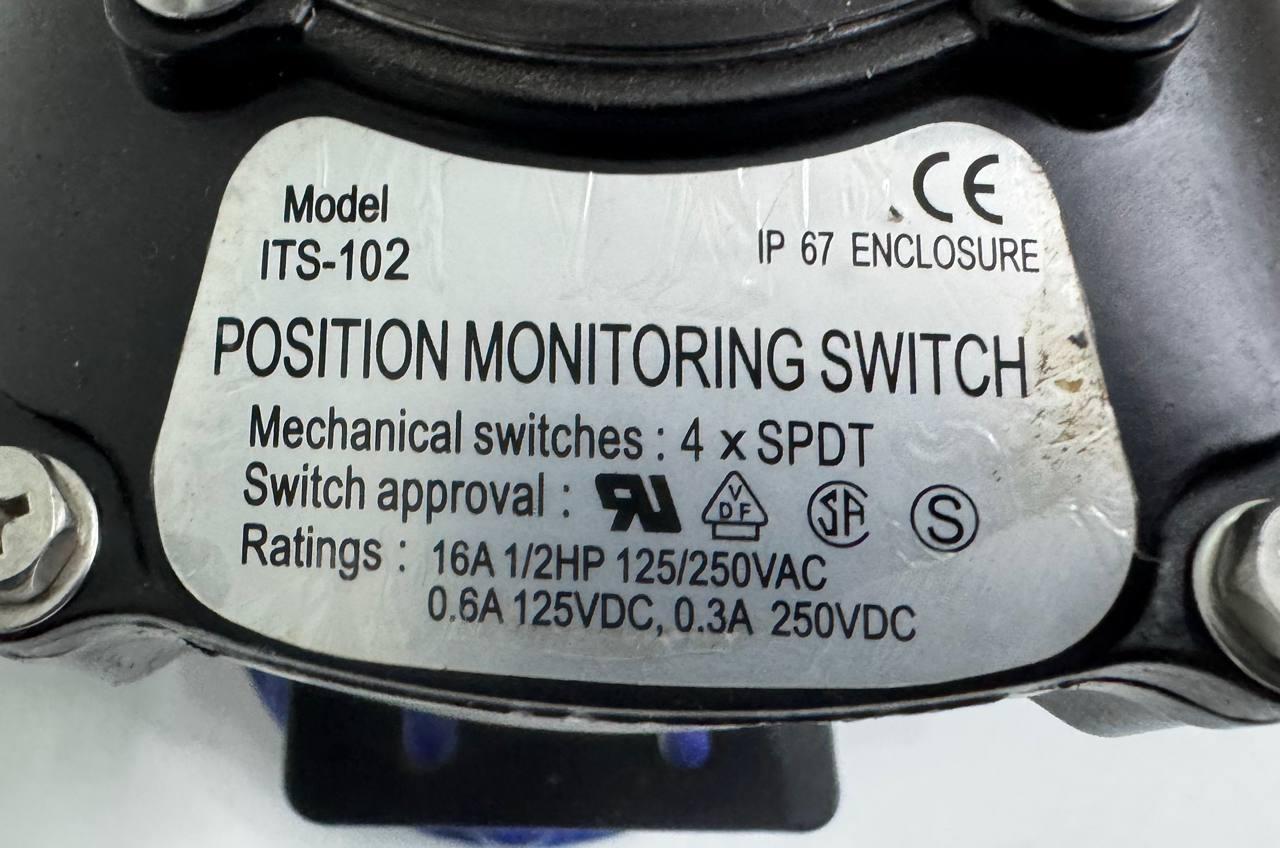

TS-102 Position Monitoring Switch

Switches: 4 × SPDT mechanical switches

Enclosure Protection: IP67, epoxy-polyester coated

Switch Ratings:

16A 1/2HP at 125/250VAC

0.6A at 125VDC

0.3A at 250VDC

Mounting: NAMUR / VDI / VDE3845 compatible

Indicator: Dome type, 0–90° rotation

Terminal Block: 8 strips (6 for switches, 2 for solenoid valve power)

Temperature Range: -20°C to +80°C

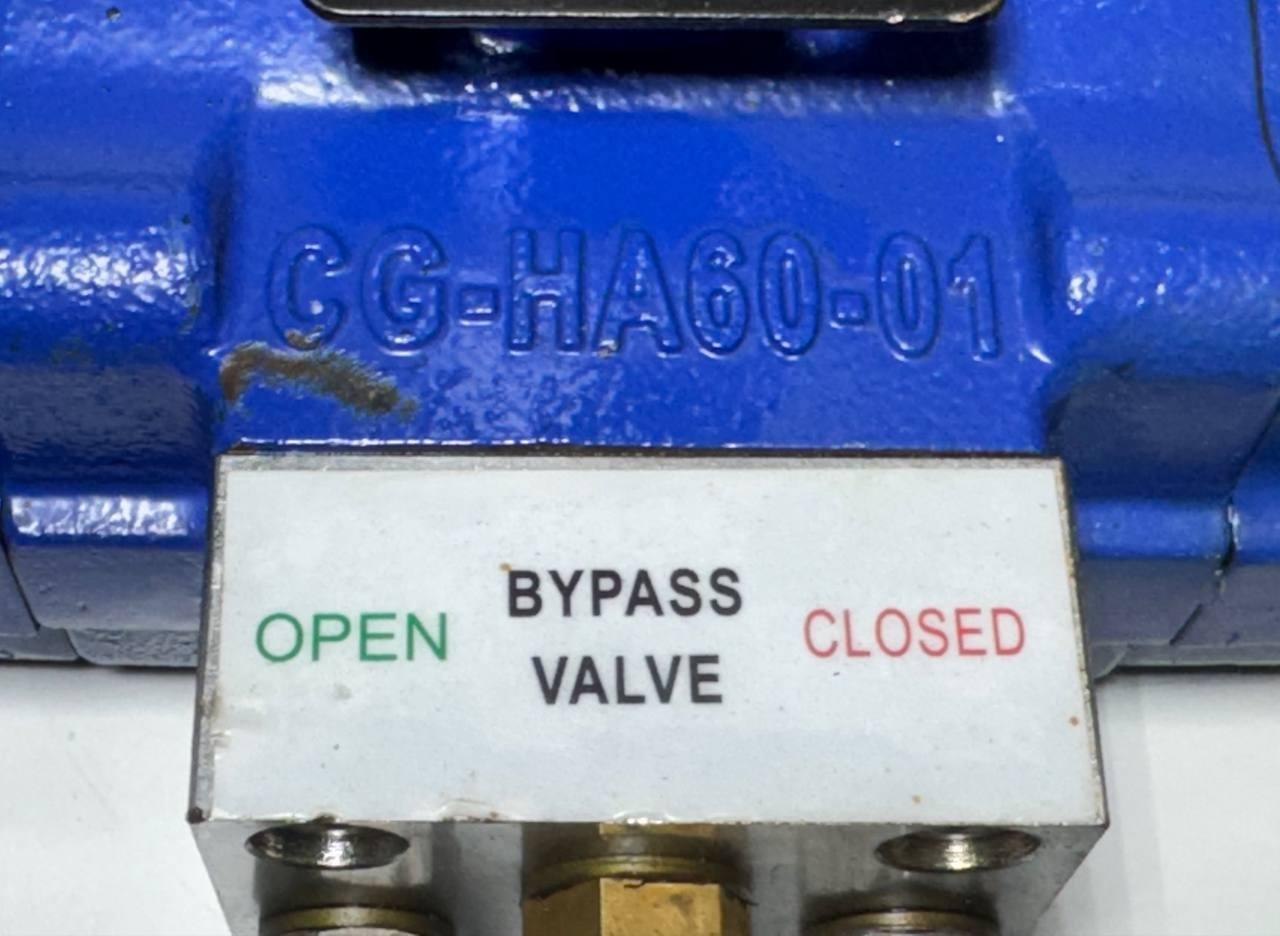

CG-HA60-01 Hydraulic Actuator

Type: Hydraulic quarter-turn actuator

Working Pressure: Up to 11 MPa

Max Torque: 690 Nm

Rotation Angle: 90° ± 5°

Mounting Flange: ISO F10 – F12

Ambient Temperature: -20°C to +80°C

---

Applications

Oil & Gas Pipelines – Valve automation and position monitoring

Petrochemical Plants – Reliable quarter-turn valve actuation

Marine & Offshore – Hydraulic valve control in harsh environments

Power Plants – Automated valve operations with safety feedback

Water Treatment – Remote monitoring and control of valve systems

Industrial Automation – Integration with DCS/SCADA systems

---

Product Features

Dual functionality: Actuation + Position Monitoring

High torque output (690 Nm) for heavy-duty valves

Weatherproof IP67 enclosure for outdoor and offshore environments

ISO/NAMUR compatible mounting for easy integration

Visual + electrical feedback for operator safety and automation

Designed for continuous, high-cycle operations in demanding industries

---
