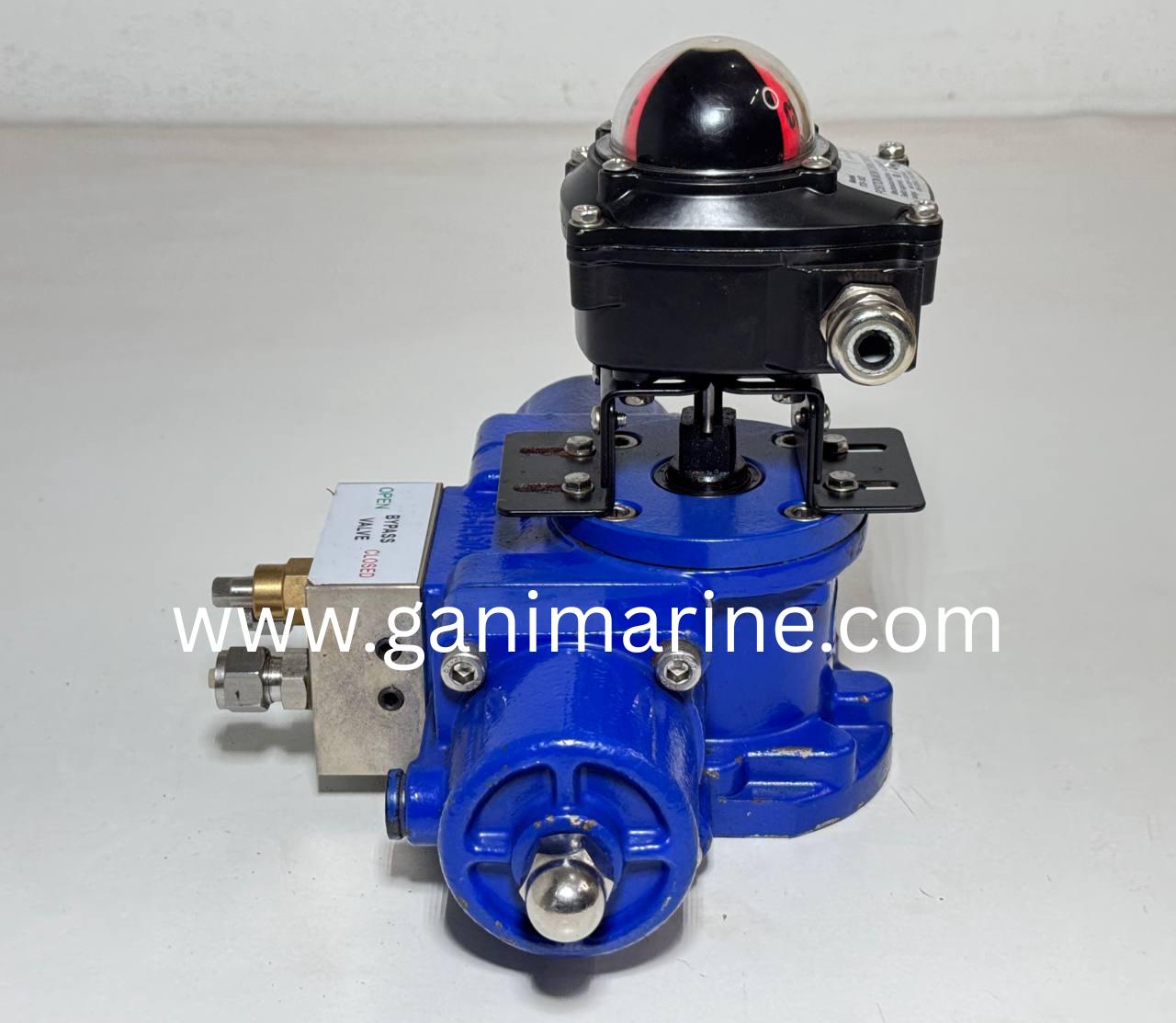

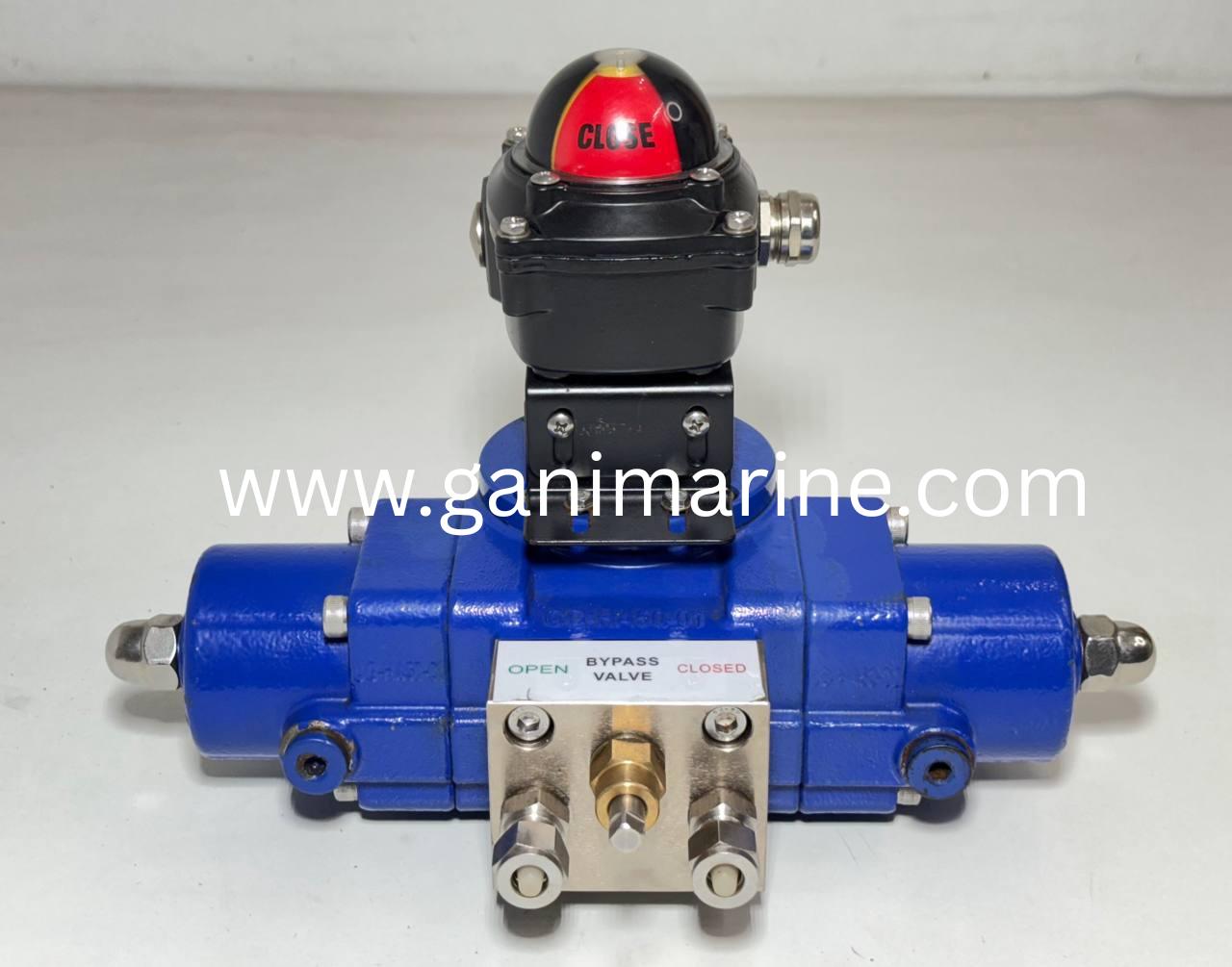

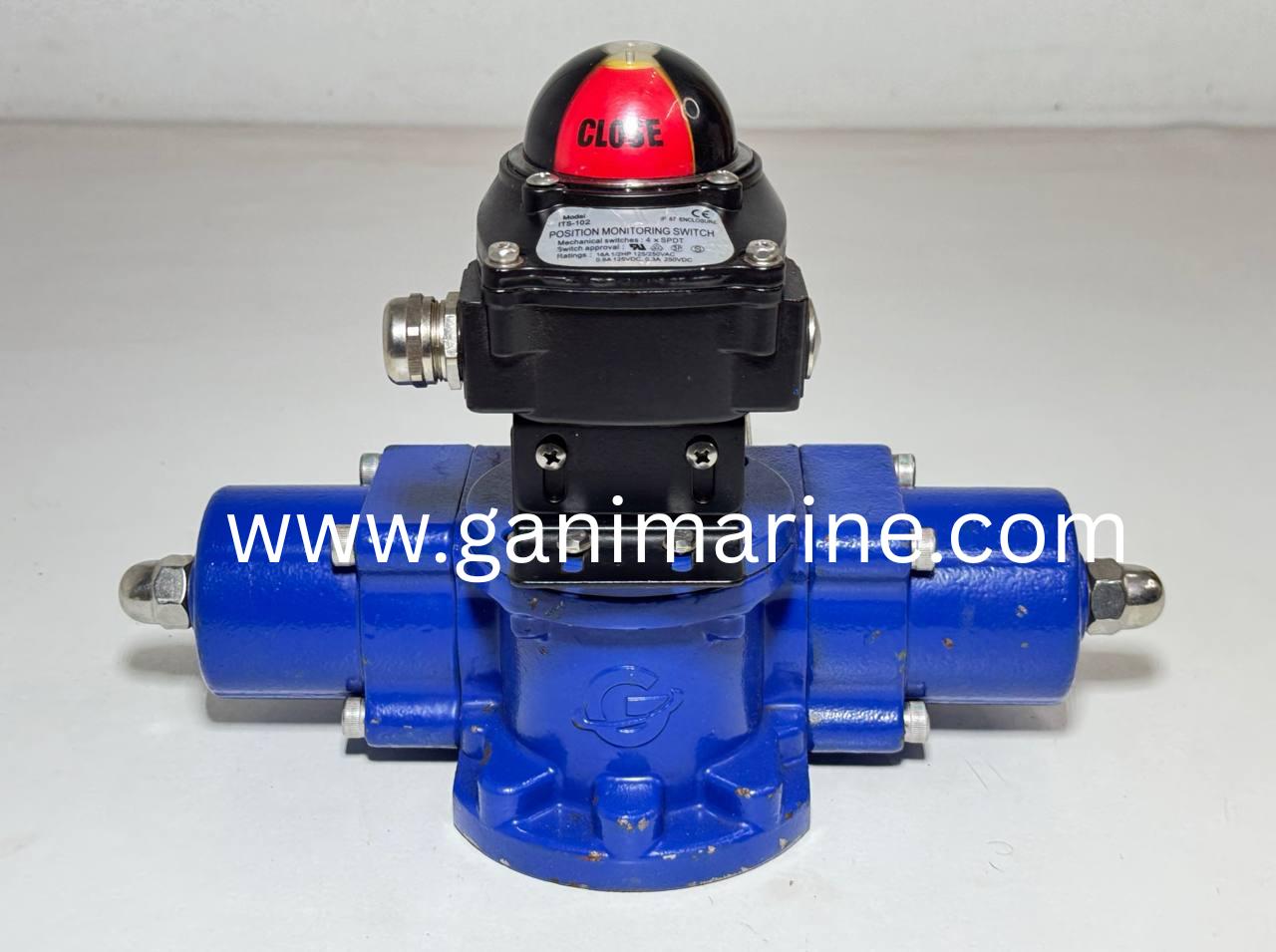

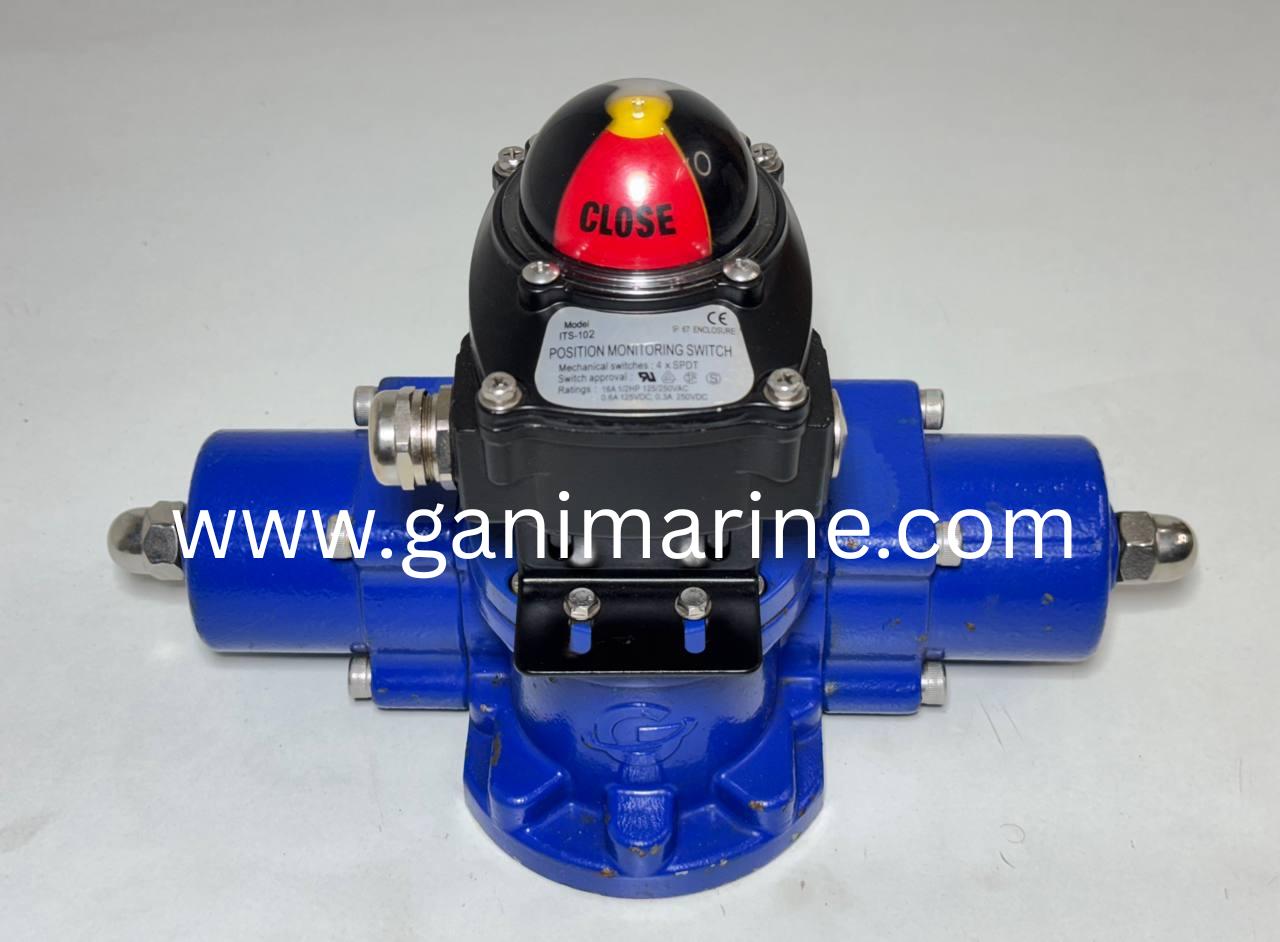

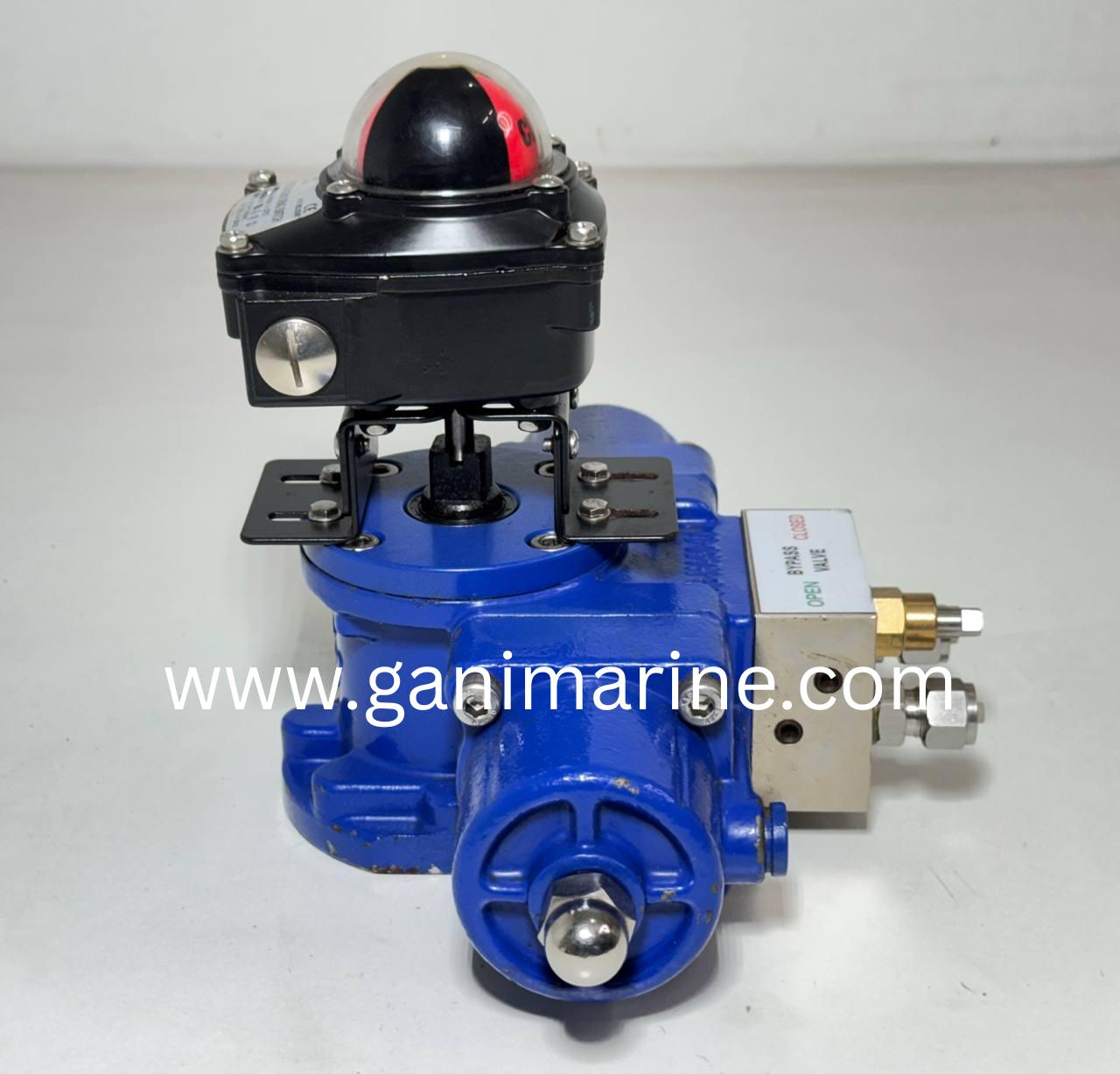

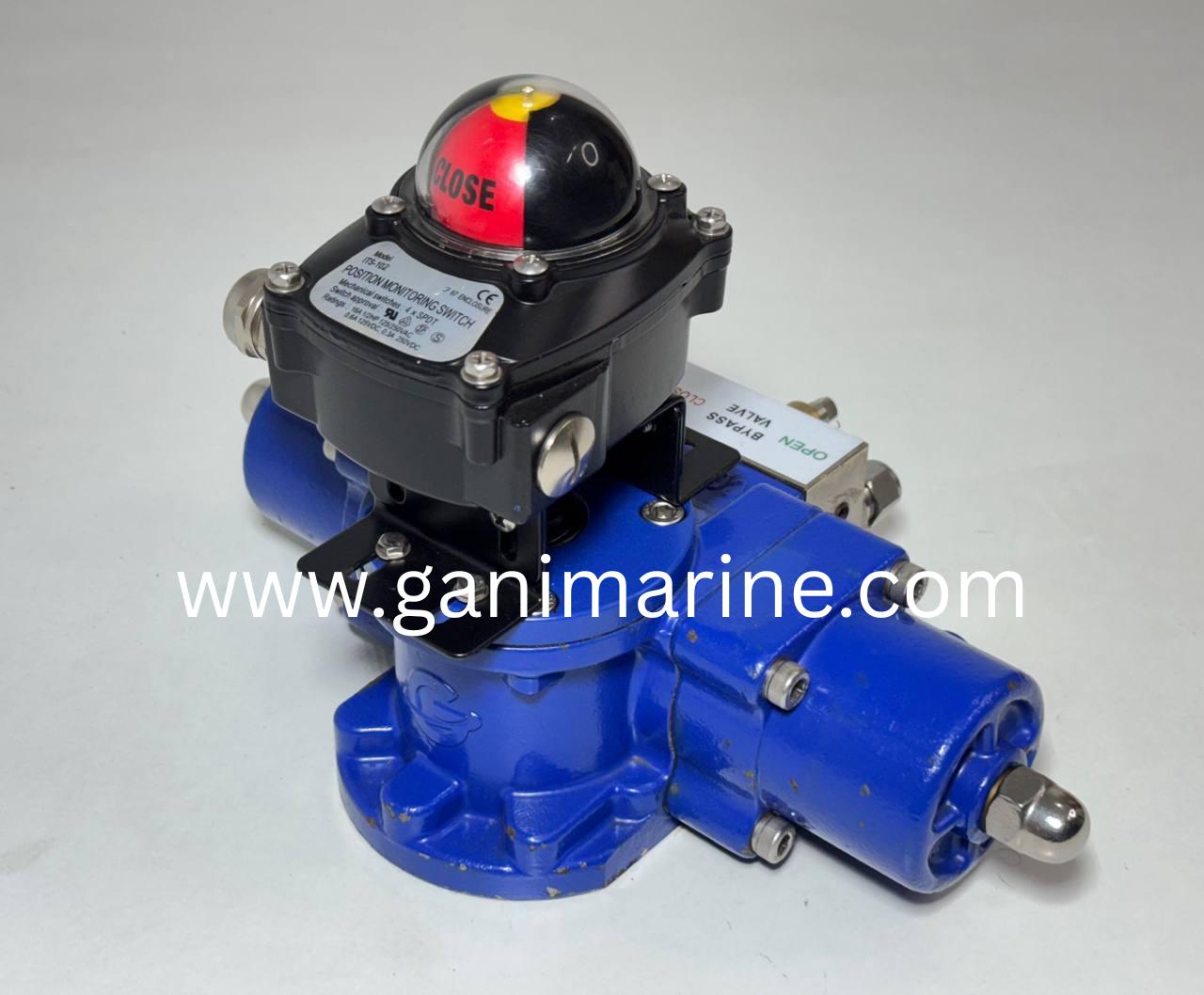

ITS-102 Position Monitoring Switch CG-HA50-01 Actuator

The ITS-102 Position Monitoring Switch combined with the CG-HA50-01 Pneumatic Actuator provides a complete solution for automated quarter-turn valve operations. This assembly ensures reliable valve actuation with precise position feedback, making it ideal for industries where safety, accuracy, and automation are critical.

The ITS-102 offers both visual indication (dome display) and electrical feedback (SPDT switches or sensors), while the CG-HA50-01 Actuator delivers powerful, rotary motion to control industrial valves. Together, they enhance operational efficiency and system reliability.

---

ITS-102 Position Monitoring Switch – Key Specifications

Switch Type: Up to 4 × SPDT mechanical switches (optional proximity or magnetic sensors)

Electrical Ratings: 16A 1/2HP 125/250VAC, 0.6A 125VDC, 0.3A 250VDC

Enclosure: IP67 waterproof and dustproof housing

Indicator: Dome-type, color coded (0°–90° rotation status)

Mounting: NAMUR/VDI/VDE3845 standard brackets

Application: Remote valve position feedback for DCS, SCADA, and safety systems

---

CG-HA50-01 Pneumatic Actuator – Technical Specifications

Type: Pneumatic quarter-turn rotary actuator

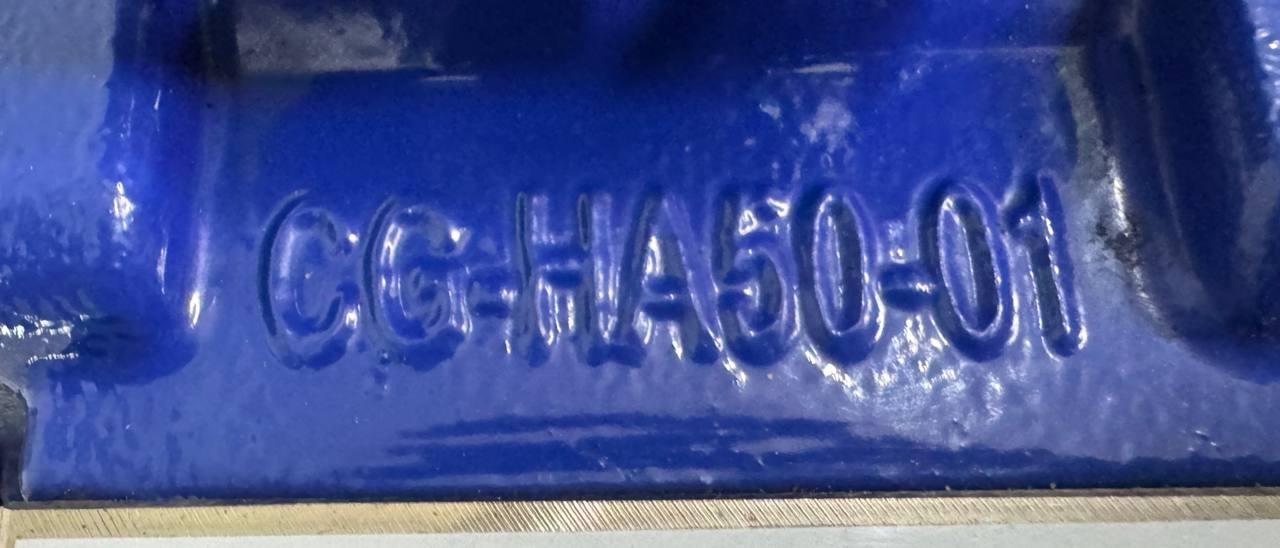

Model: CG-HA50-01

Torque Output: Designed for high torque requirements (model-specific, typically up to 300 Nm)

Operating Pressure: 0.4 – 0.8 MPa (typical for pneumatic actuators)

Rotation Angle: 90° ± 5°

Mounting Flange: ISO standard (F05-F07)

Temperature Range: -20°C to +80°C

Construction: Corrosion-resistant housing, compact and durable design

Application: Operates ball, butterfly, and plug valves in automated systems

---

Typical Applications

Oil & Gas: Valve automation with real-time monitoring for pipelines and offshore rigs

Water Treatment Plants: Automated flow control and feedback for SCADA integration

Chemical & Process Industries: Safe and precise actuation of critical process valves

Marine & Offshore: Rugged solution for shipboard valve control systems

---

Product Features

Rugged IP67 enclosure for harsh environments

High torque, quarter-turn operation suitable for multiple valve types

NAMUR mounting compatibility for easy installation with actuators

Visual and electrical feedback for enhanced safety and monitoring

Reliable automation for continuous duty in industrial applications

---
