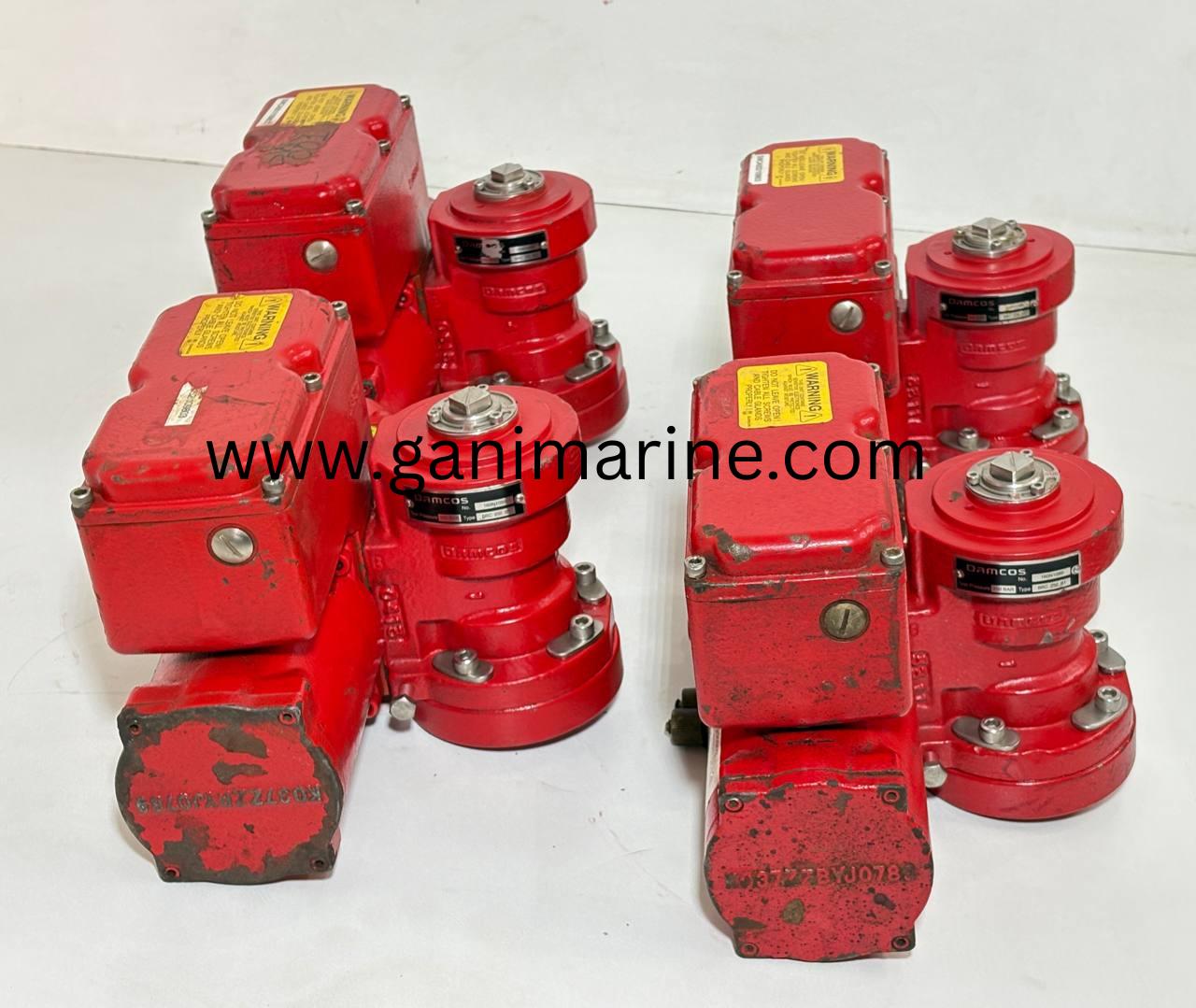

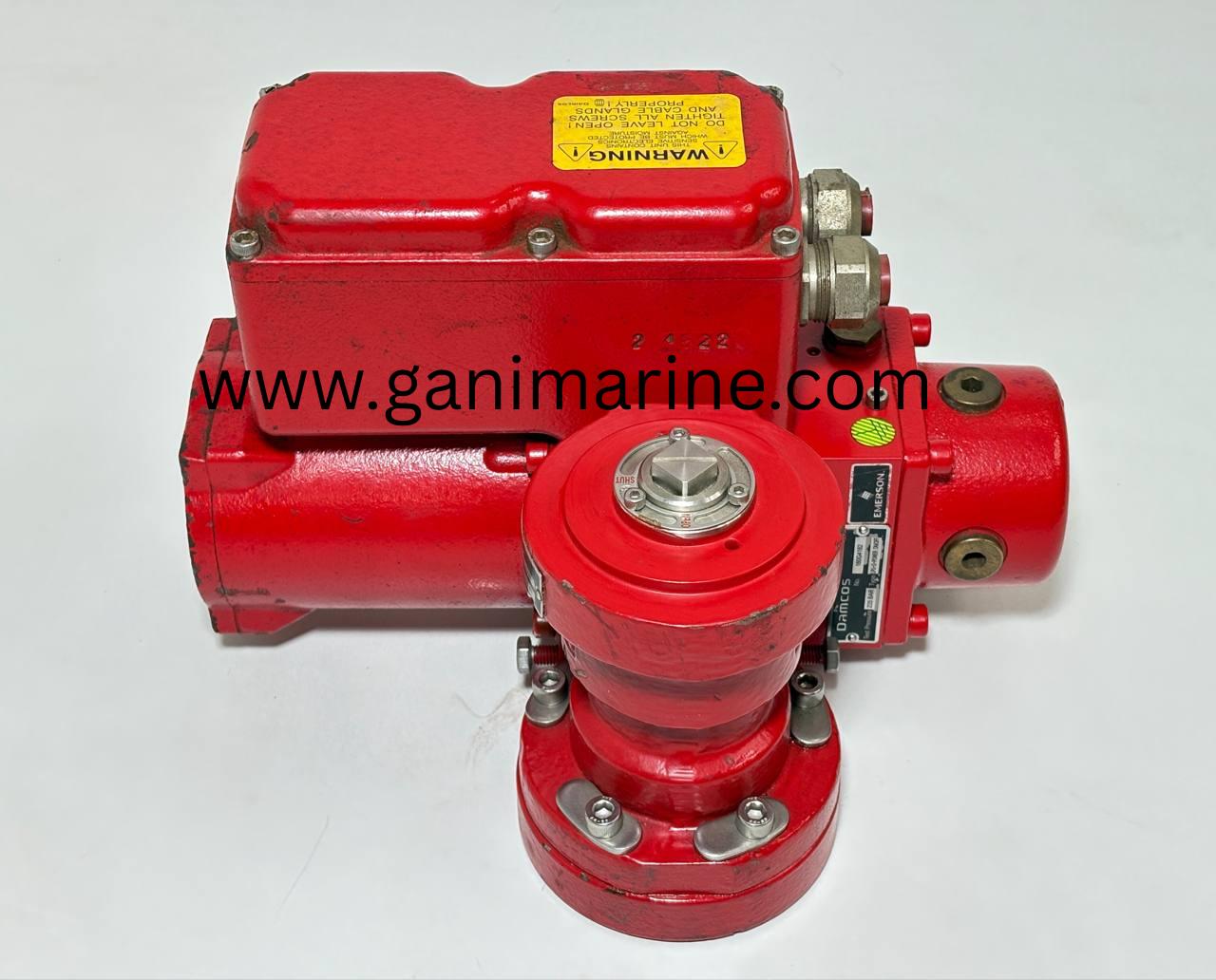

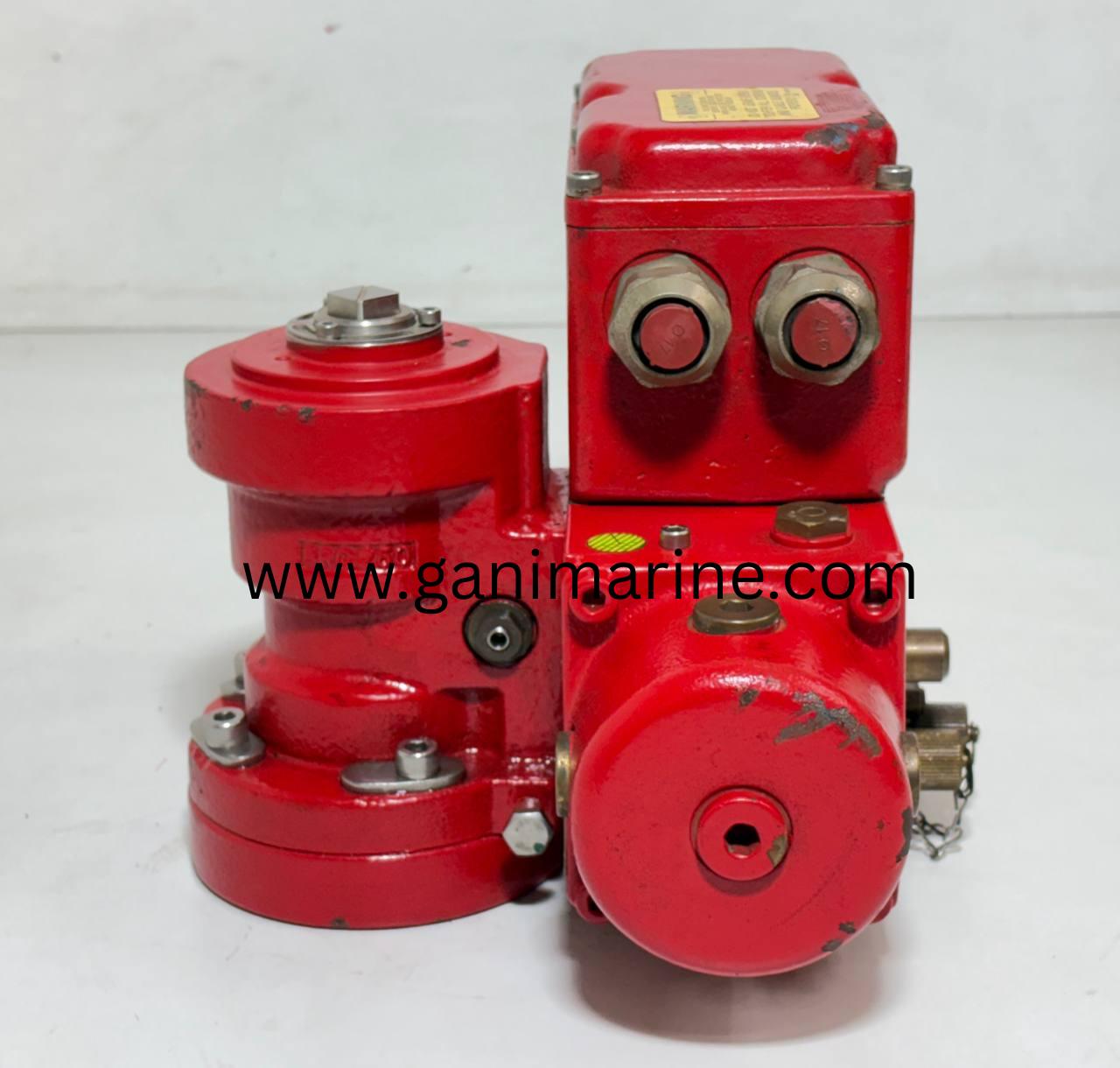

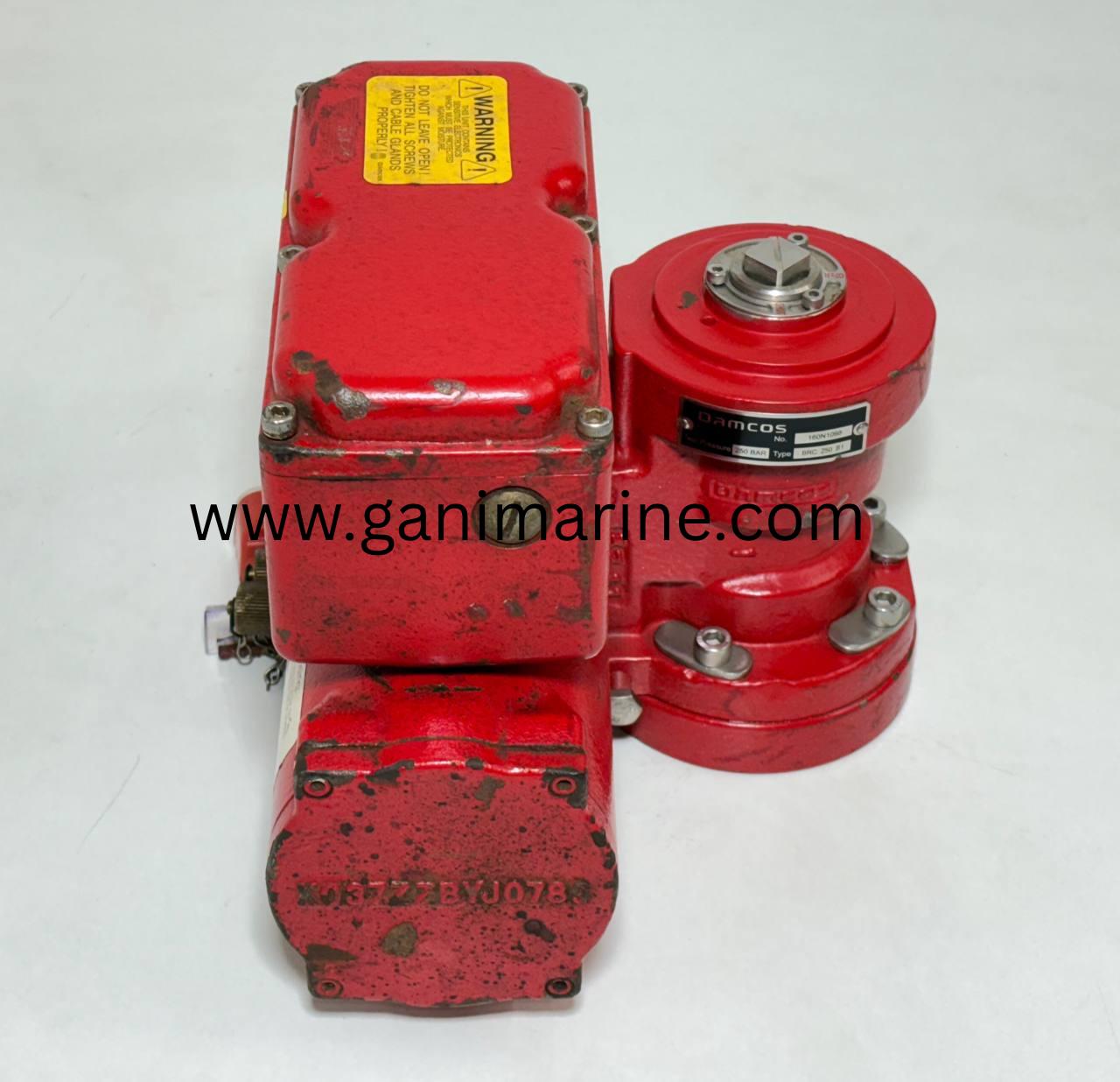

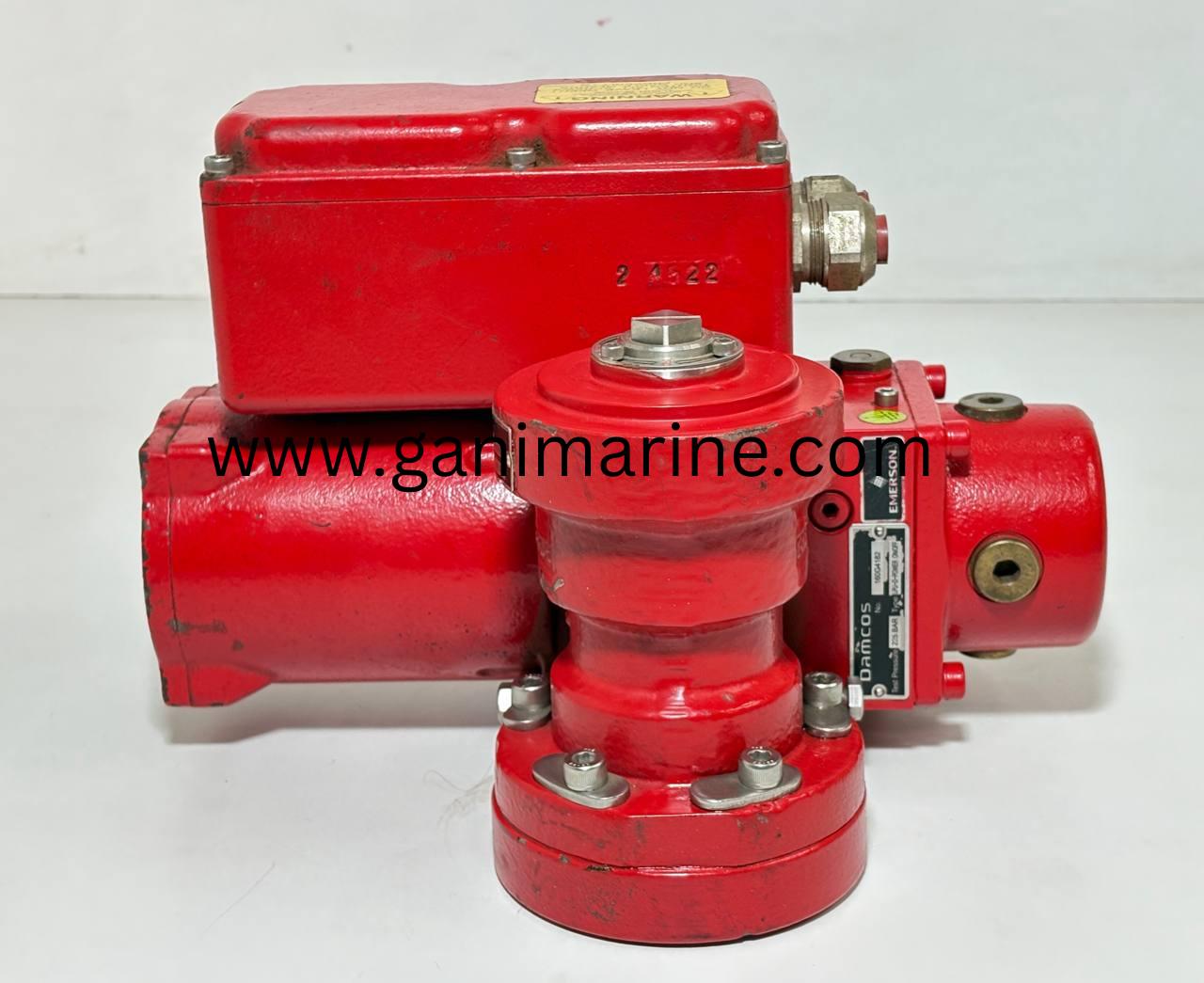

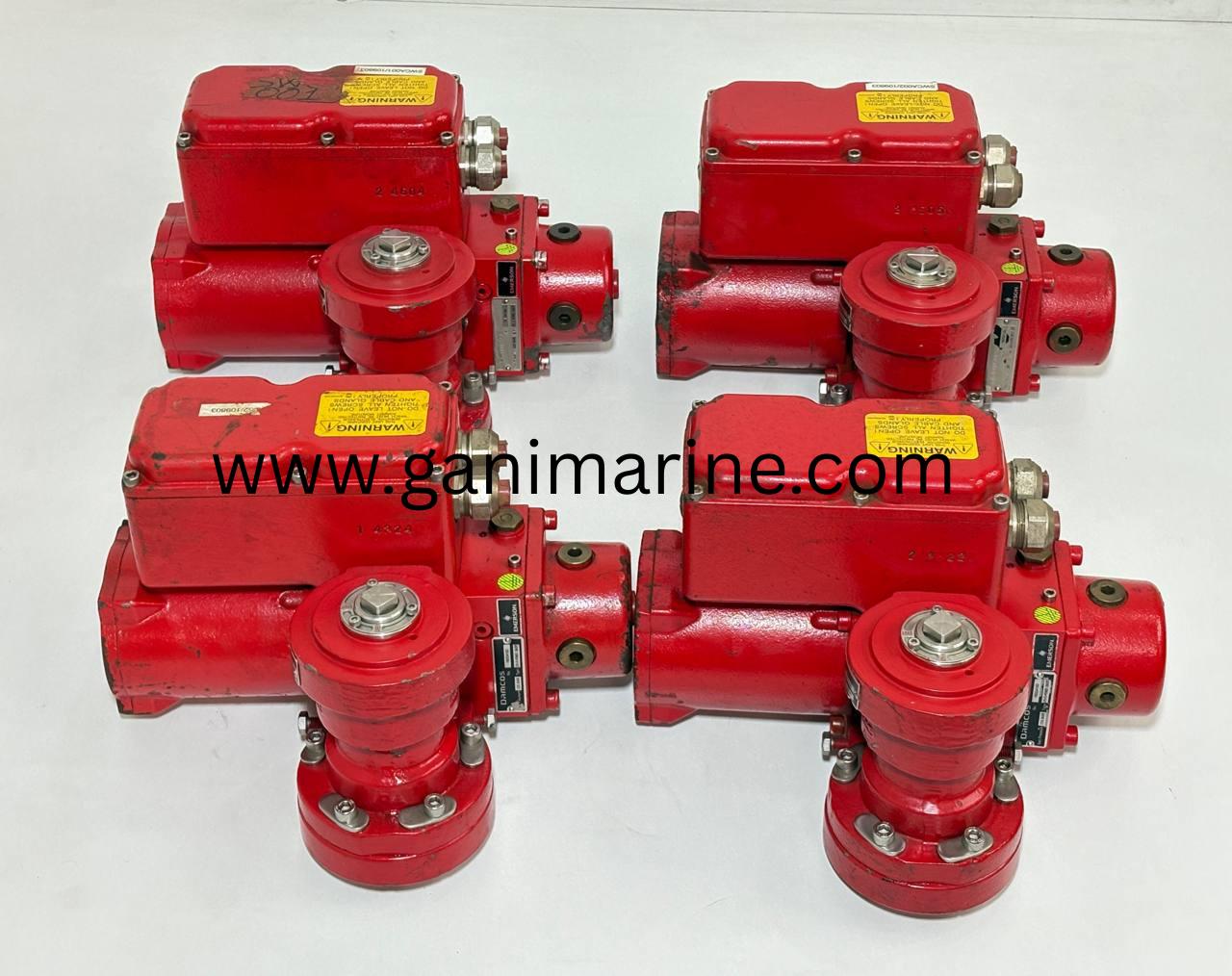

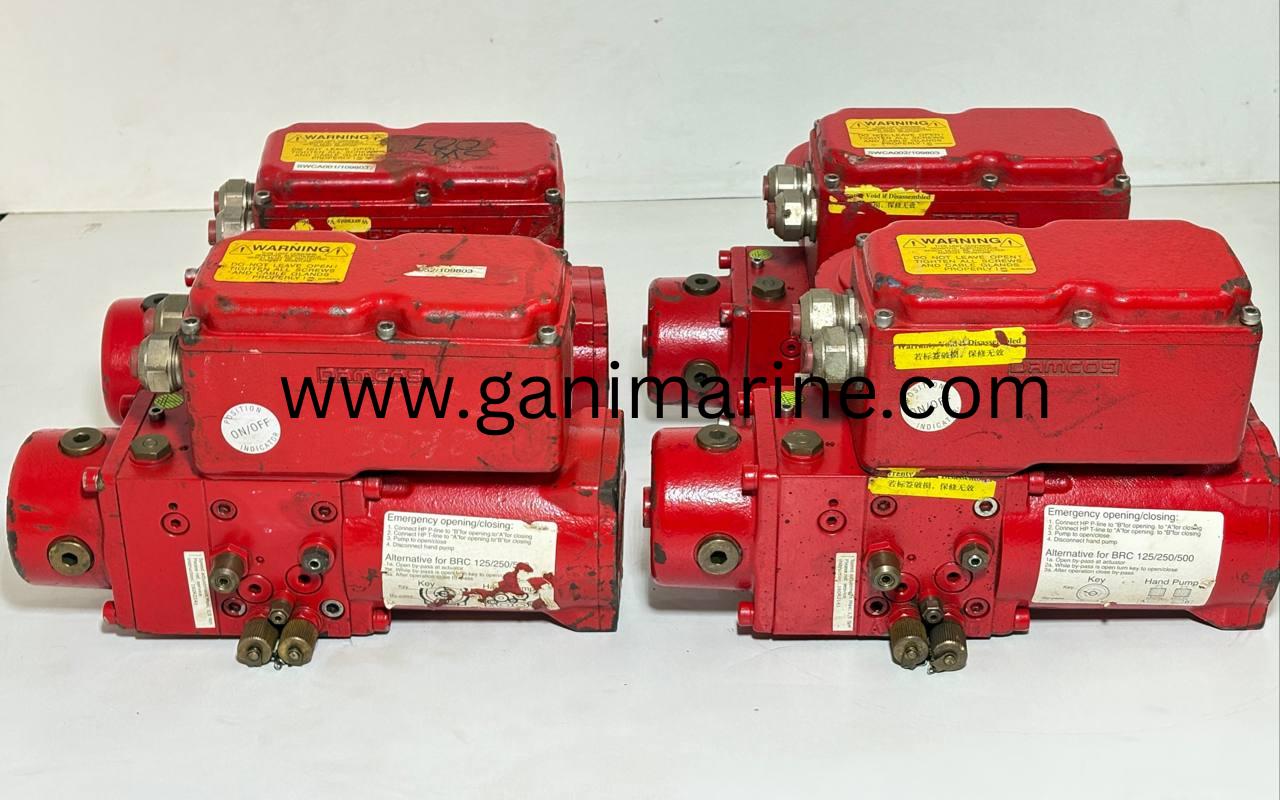

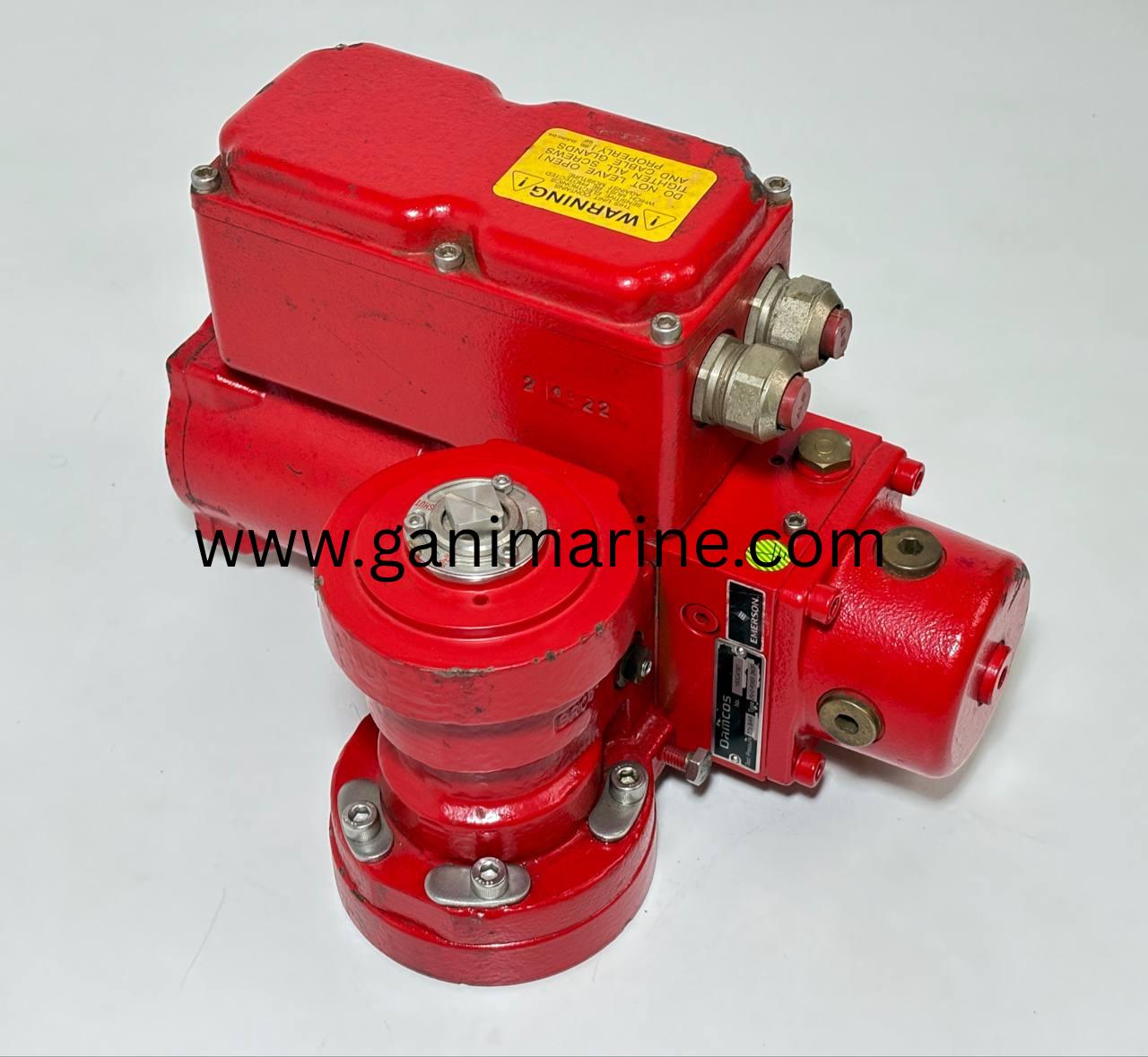

DAMCOS LPU D POWER ON/OFF 160G4182 WITH DAMCOS BRC 250 B1 HYDRAULIC ACTUATOR
DAMCOS LPU D POWER ON/OFF 160G4182 WITH DAMCOS BRC 250 B1 HYDRAULIC ACTUATOR
The DAMCOS BRC 250 B1 Hydraulic Double-Acting Balanced Rotary Actuator paired with the LPU-D Local Power Unit (ON/OFF) is a precision-engineered marine hydraulic valve control system designed for reliable and efficient remote valve operation.
Manufactured by DAMCOS (part of Emerson), this actuator system ensures fail-safe control, durable performance, and full compatibility with marine automation and offshore valve control applications.
The BRC 250 B1 Actuator provides a 90° (quarter-turn) movement for valve operation, offering high torque, balanced performance, and zero backlash. The LPU-D Local Power Unit, attached to the actuator, allows for remote or manual valve operation — even under emergency or power-failure conditions via a hand pump or manual key.
Engineered for harsh marine environments, the system features rugged hydraulic construction, corrosion-resistant materials, and tested reliability at 225–250 bar.
Technical Specifications

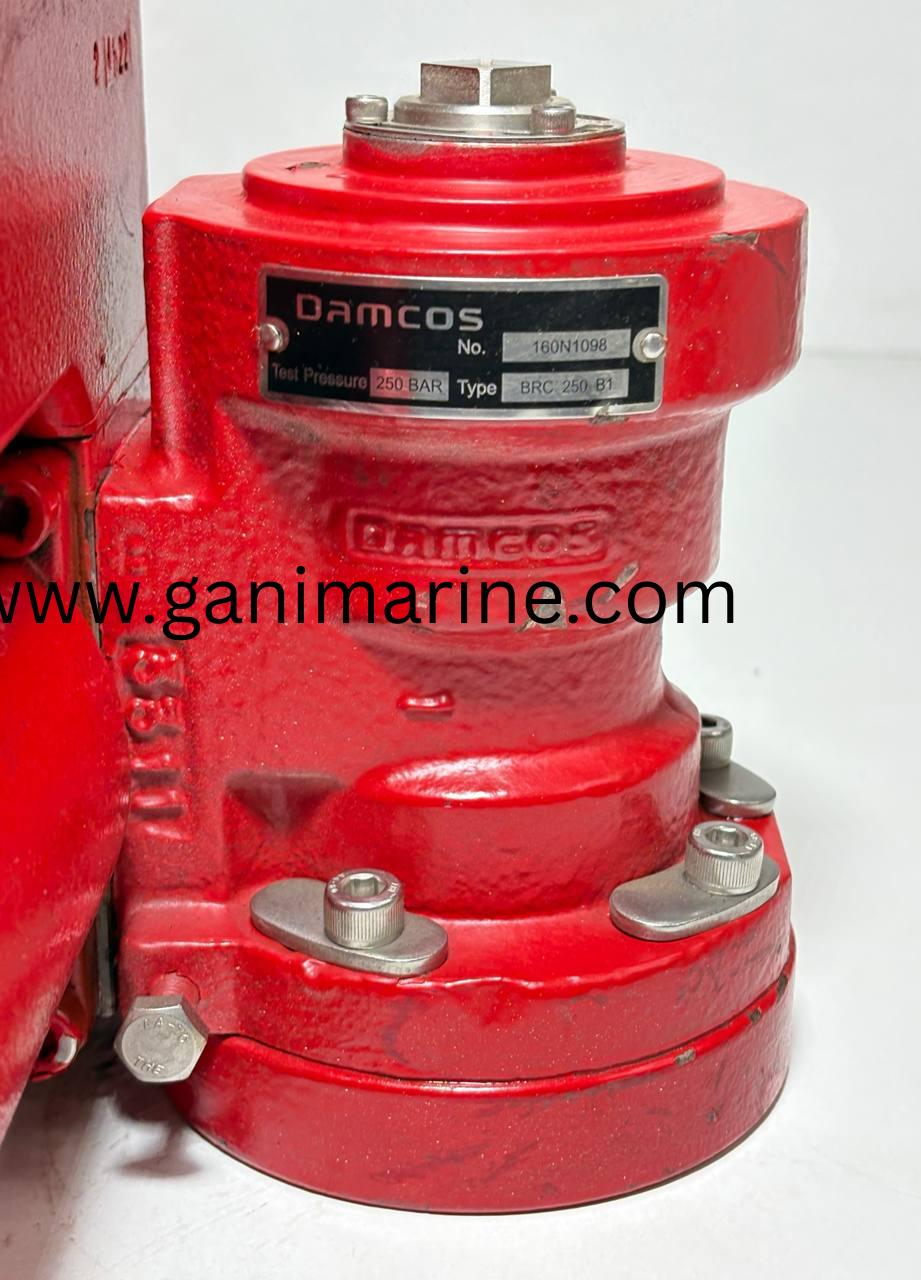

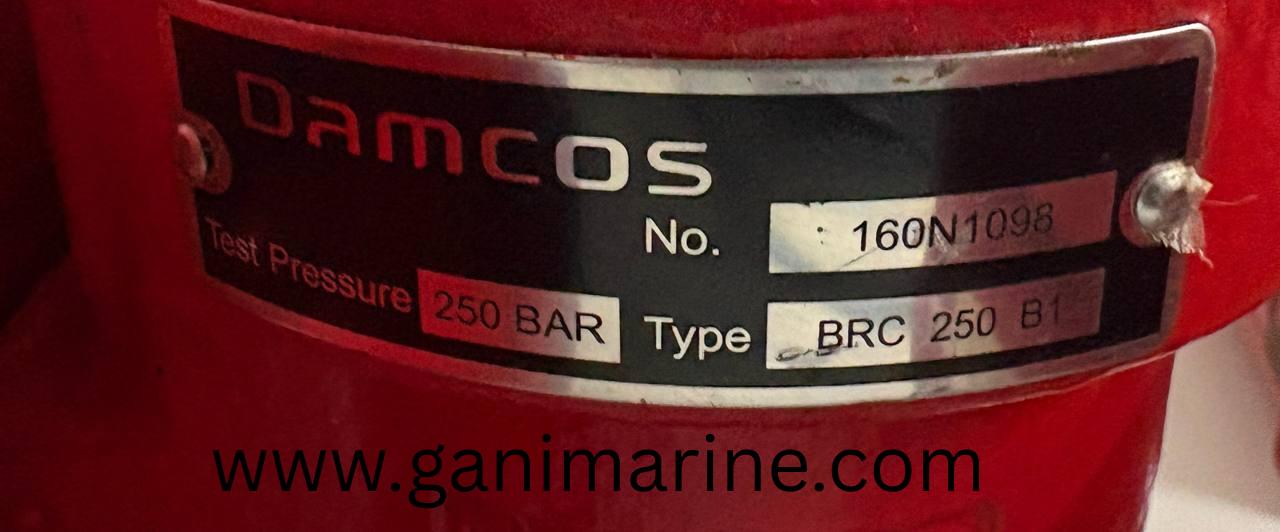

Actuator: DAMCOS BRC 250 B1
• Manufacturer: DAMCOS (EMERSON Marine Systems)
• Model / Type: BRC 250 B1
• Part Number: 160N1098
• Actuation Type: Hydraulic, Double-Acting, Balanced Rotary Actuator
• Rotation: 90° (Quarter-turn)
• Test Pressure: 250 bar
• Recommended Working Pressure: 30–135 bar
• Oil Displacement: 0.050 liters per operation
• Operation: Hydraulic pressure required for both open and close
• Construction: Marine-grade alloy housing with balanced piston design
• Mounting: ISO-standard flange interface
• Torque Range: Suitable for small-to-medium valve sizes
• Media: Mineral oil or equivalent (viscosity 15–200 cSt)
• Weight: Compact and lightweight, suited for limited-space installations

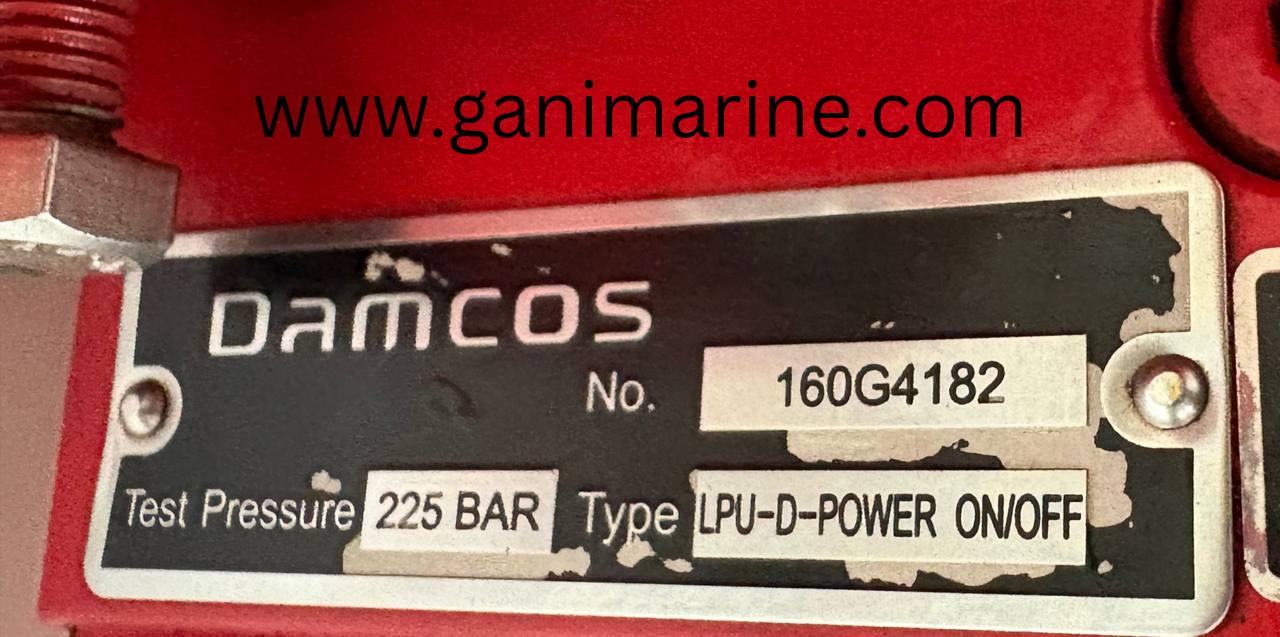

LPU-D Local Power Unit (Power ON/OFF Type)
• Manufacturer: DAMCOS (EMERSON)
• Type: LPU-D (Designed for Double-Acting Actuators)
• Part Number: 160G4182
• Test Pressure: 225 bar
• Function: Local and remote hydraulic control for valve actuation
• Operation: ON/OFF control through hydraulic signals
• Ports: A and B ports for actuator control with quick hydraulic couplings

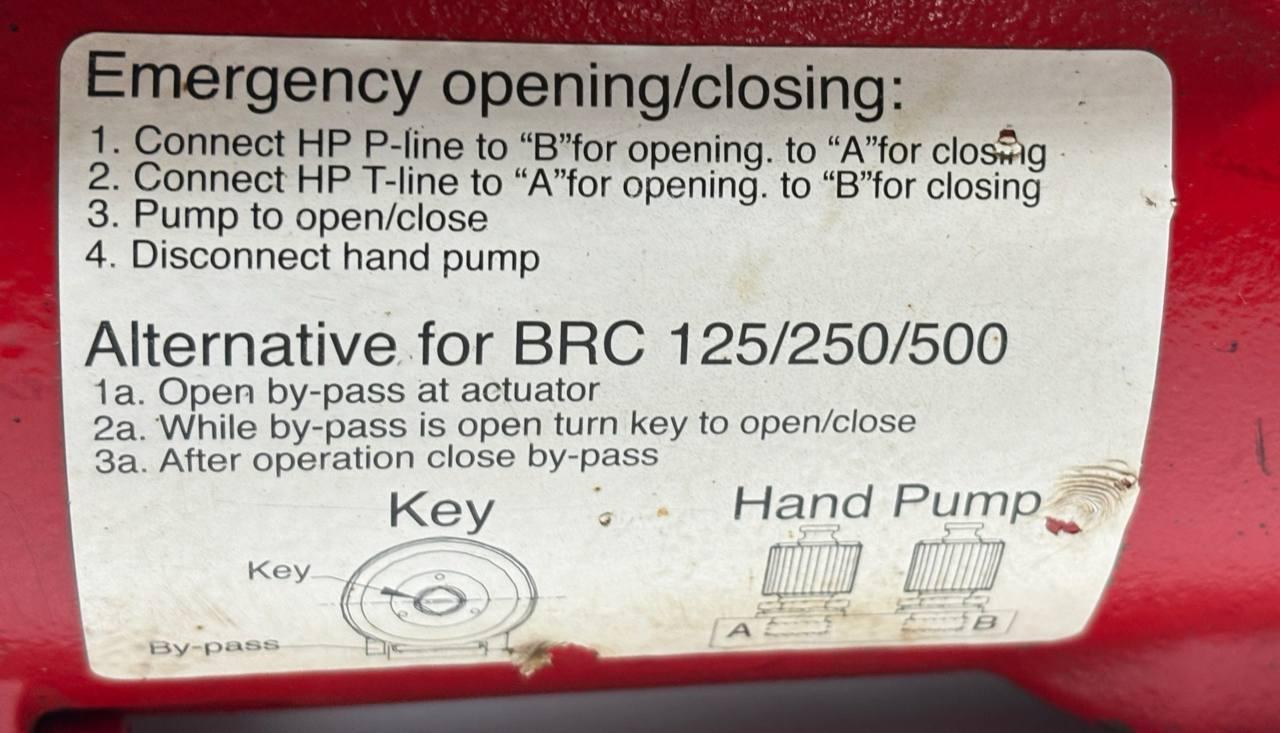

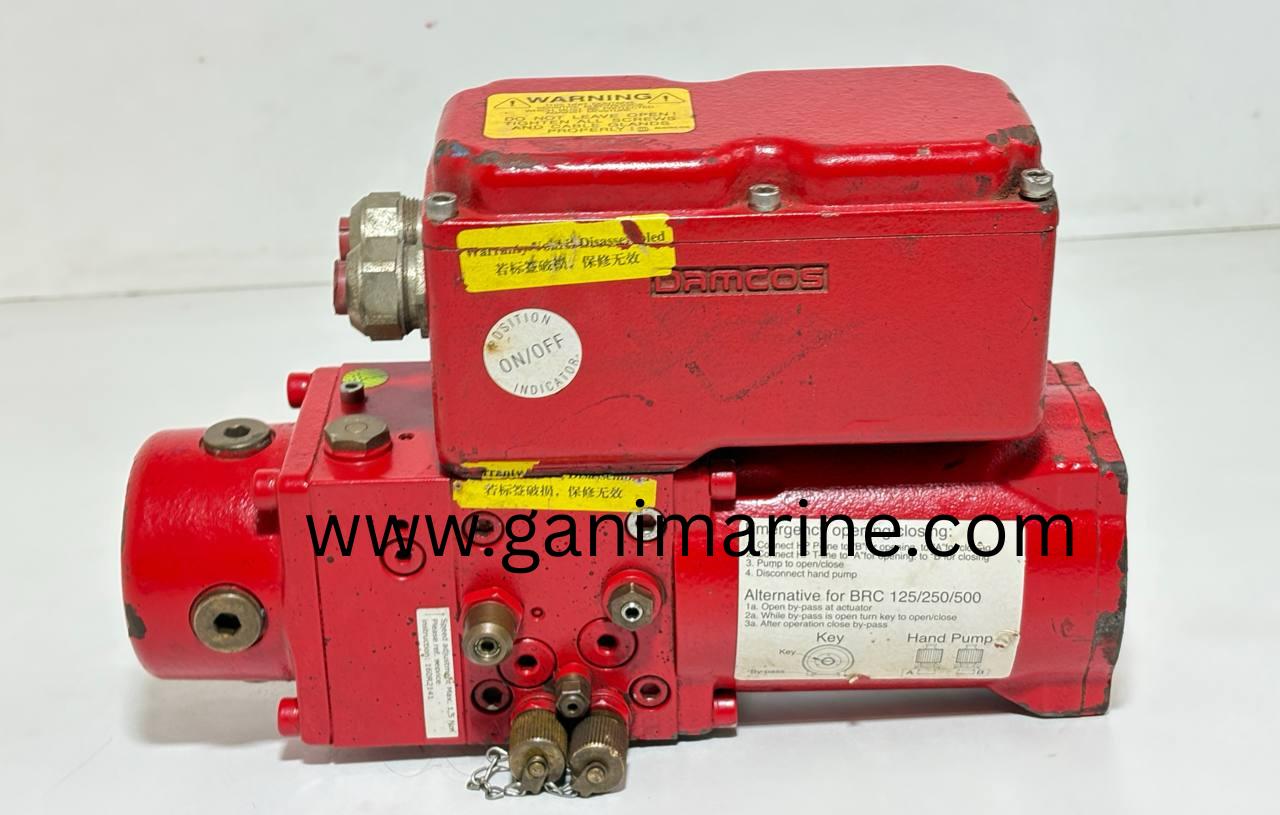

• Emergency Operation:
• Hand Pump Operation:
• To Open: Connect HP pressure line to port B, HP return (T-line) to A.
• To Close: Connect HP pressure line to port A, HP return (T-line) to B.
• Manual Key Operation (for BRC 125/250/500):
• Open the actuator bypass.
• Use the manual key to open or close the valve.
• Close the bypass after operation.
• Build: Steel and aluminum modular construction, corrosion-protected
• Compatibility: For all double-acting actuators (BRC 125–500 range)
Product Features
• Robust hydraulic actuator and control unit combination for precision valve automation
• Double-acting system ensures full hydraulic control in both directions
• Balanced rotary design delivers smooth, consistent motion
• Manual and hand-pump emergency operation for safety-critical marine applications
• Marine-grade corrosion resistance for long life in offshore environments
• Compatible with remote control systems, LPU networks, and integrated PLCs
• Tested pressure integrity up to 250 bar
• Compact, service-friendly design ideal for confined shipboard spaces
Applications
• Marine valve control systems (butterfly, ball, and plug valves)
• Offshore platforms and FPSO hydraulic systems
• Shipboard remote valve control networks (RVC systems)
• Subsea and topside hydraulic automation
• Industrial hydraulic power packs
• Emergency safety shutoff systems
Global Supply by GANI MARINE EXPORTER
GANI MARINE EXPORTER is a leading global supplier of DAMCOS / EMERSON BRC actuators and LPU-D Local Power Units for marine, offshore, and ship repair industries.
We offer tested, genuine, and fully functional Damcos hydraulic control assemblies ready for integration or retrofit projects.
Our inventory includes BRC 125, BRC 250, BRC 500, BRCF 2000 series actuators, and LPU-D ON/OFF or PLUS-DD models — available for immediate shipment worldwide.
