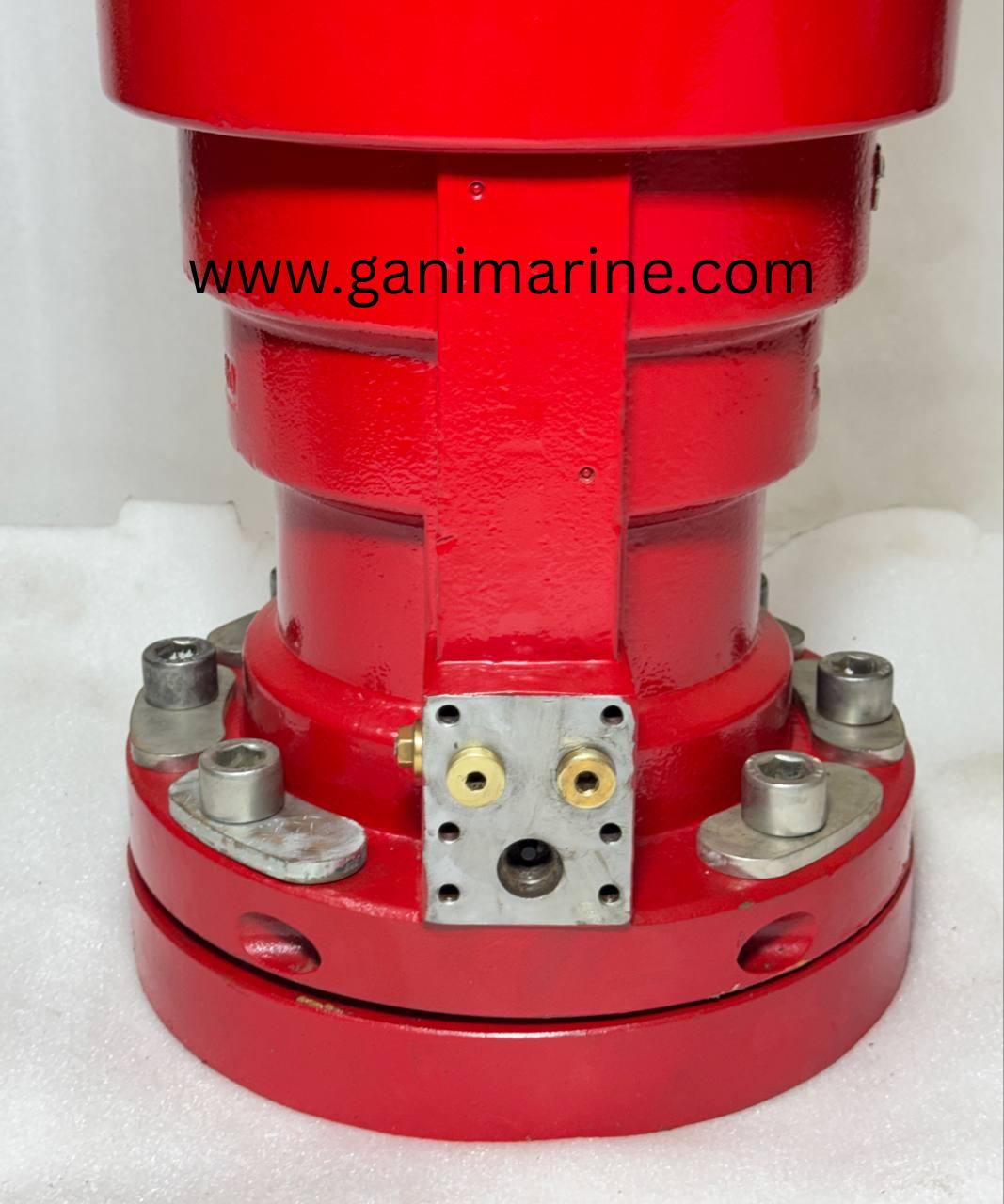

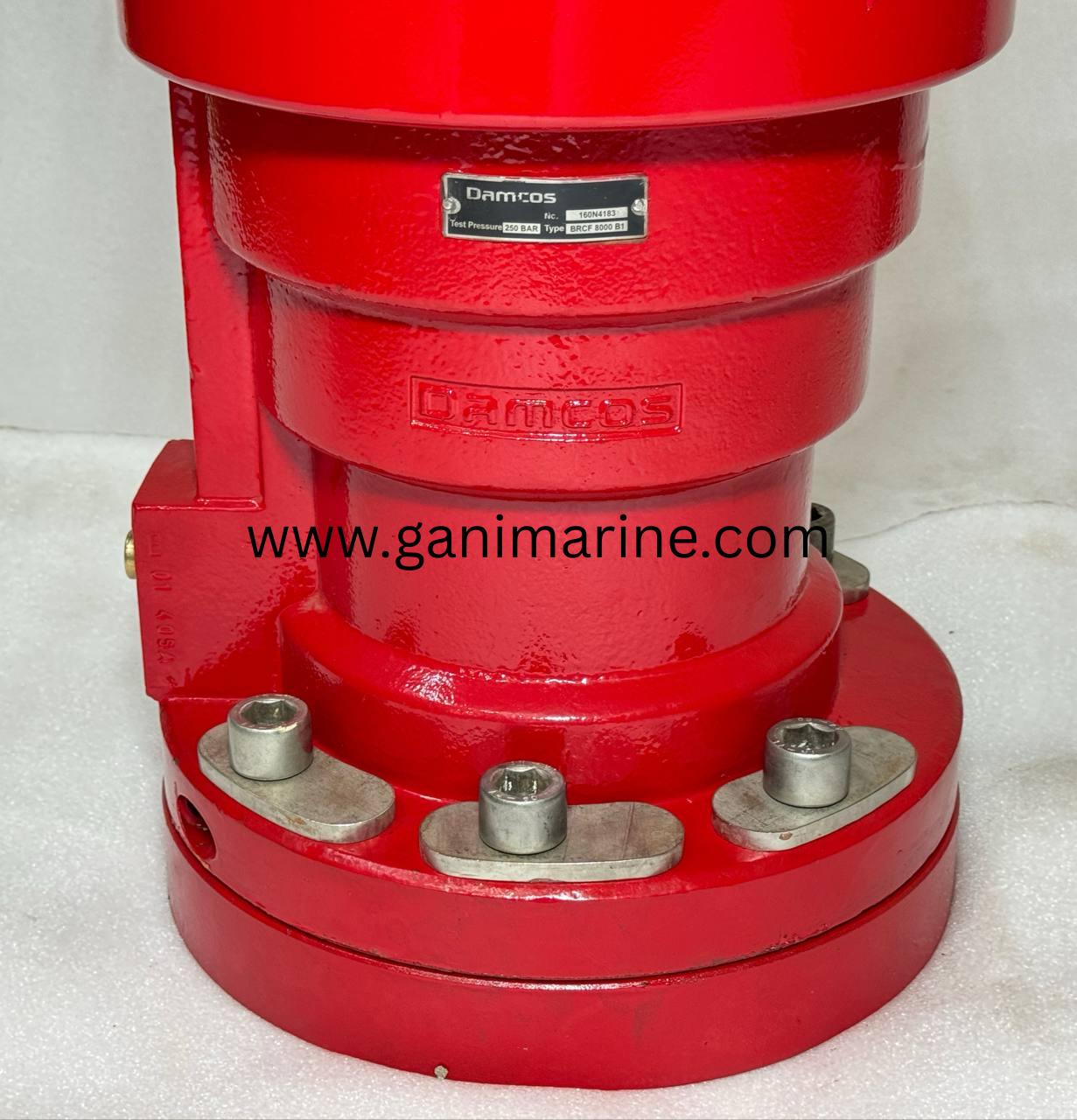

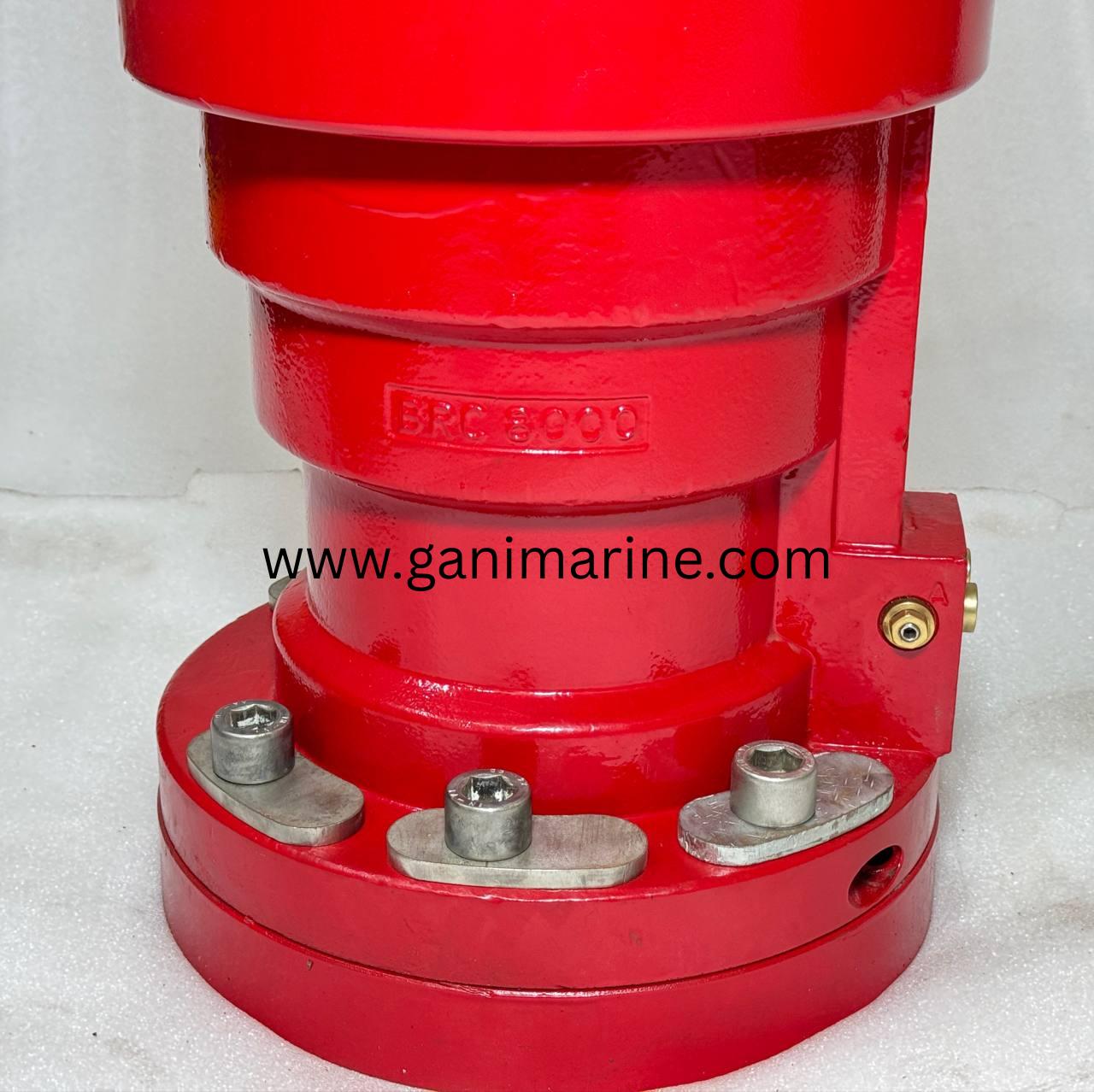

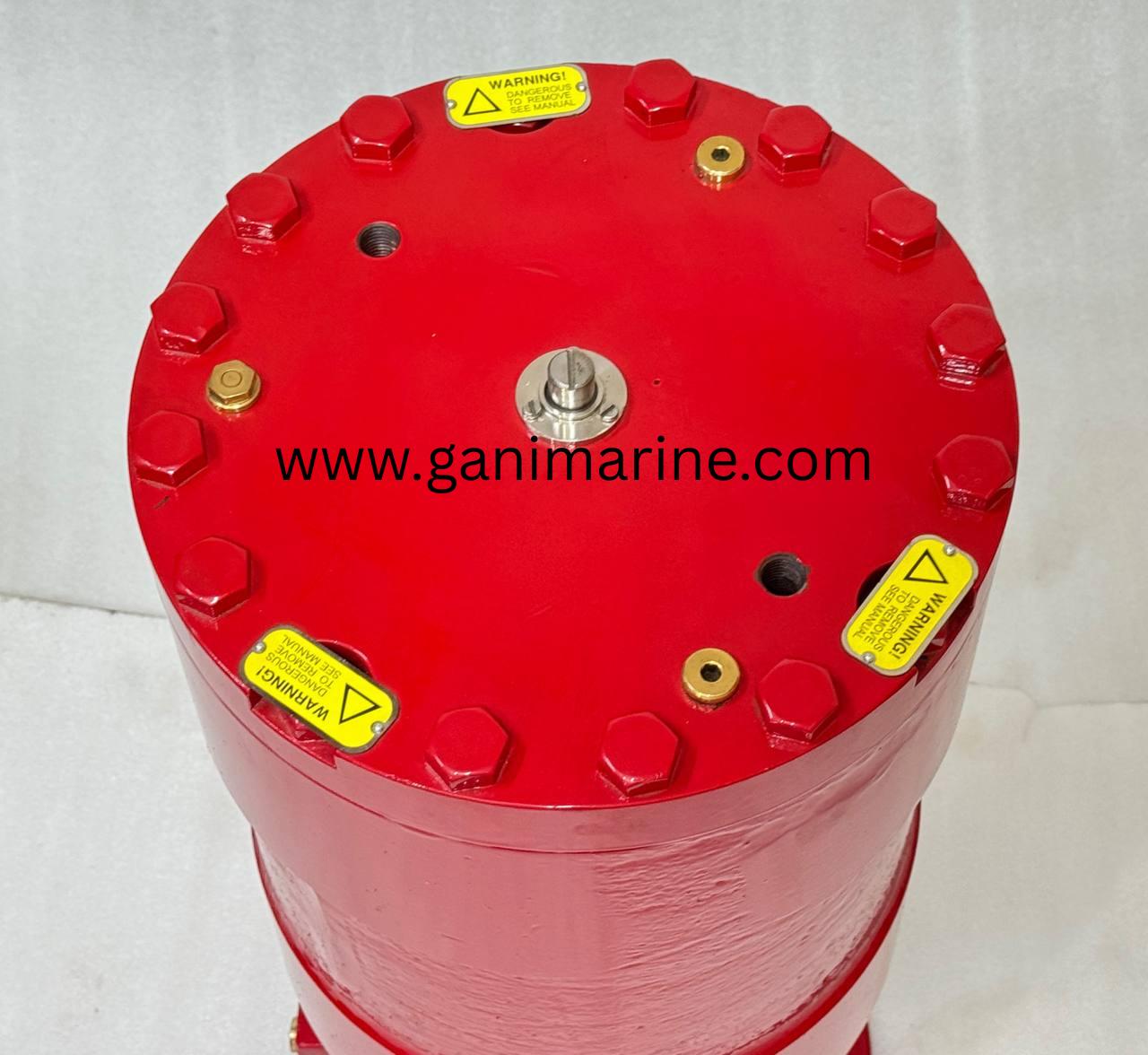

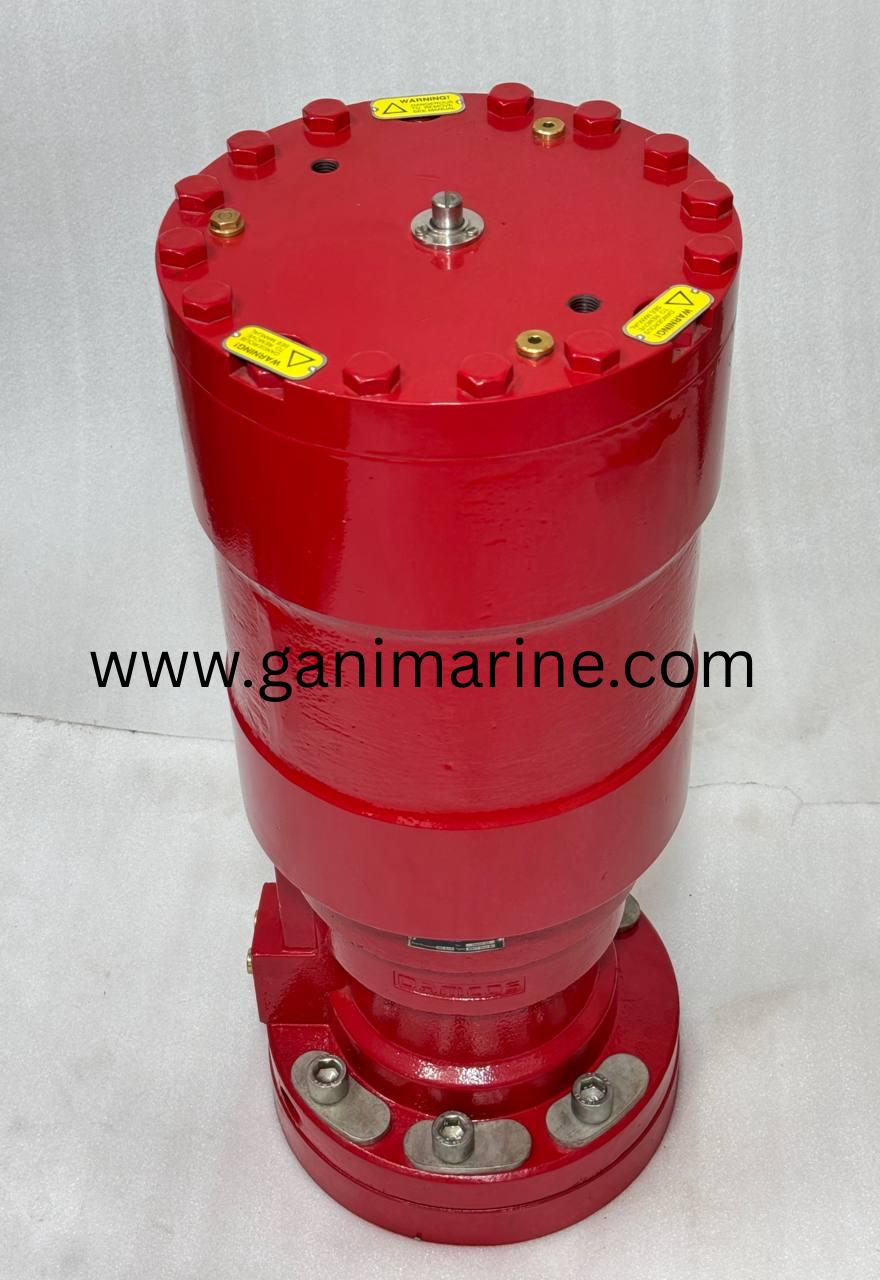

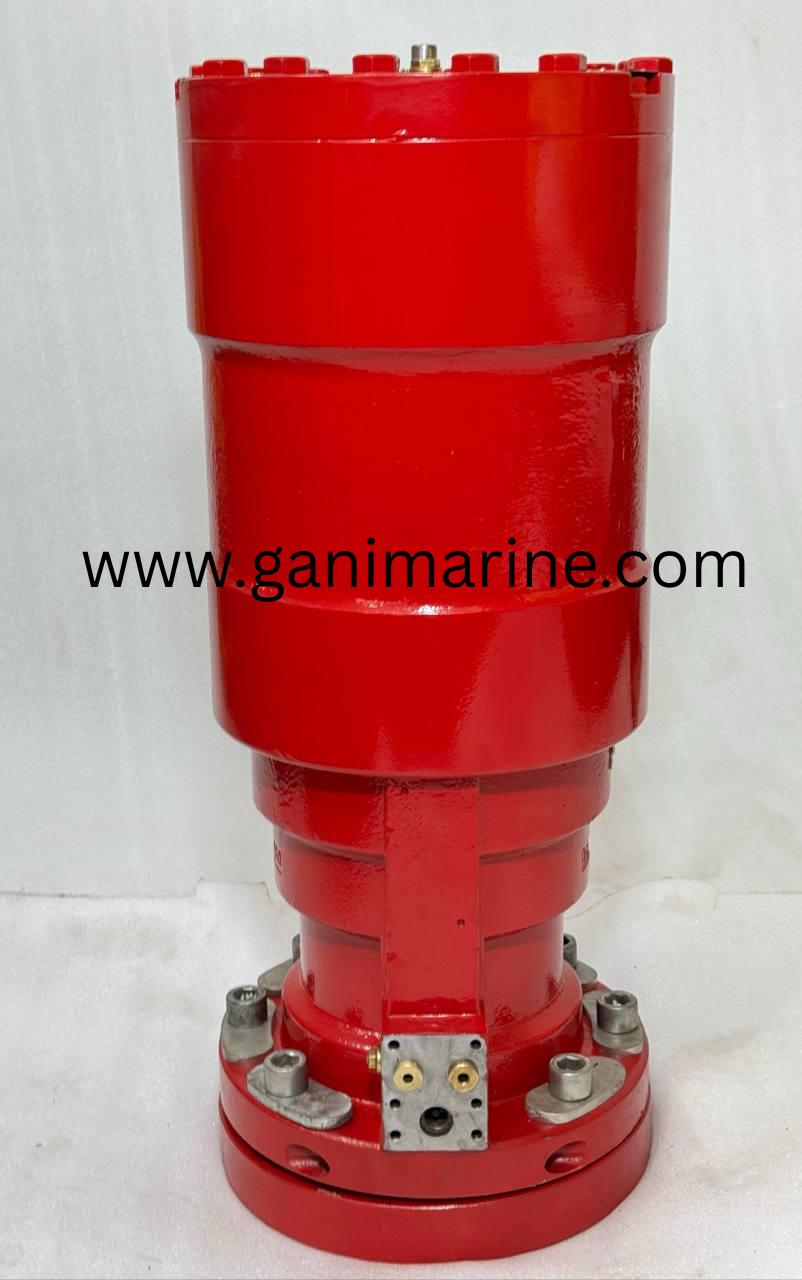

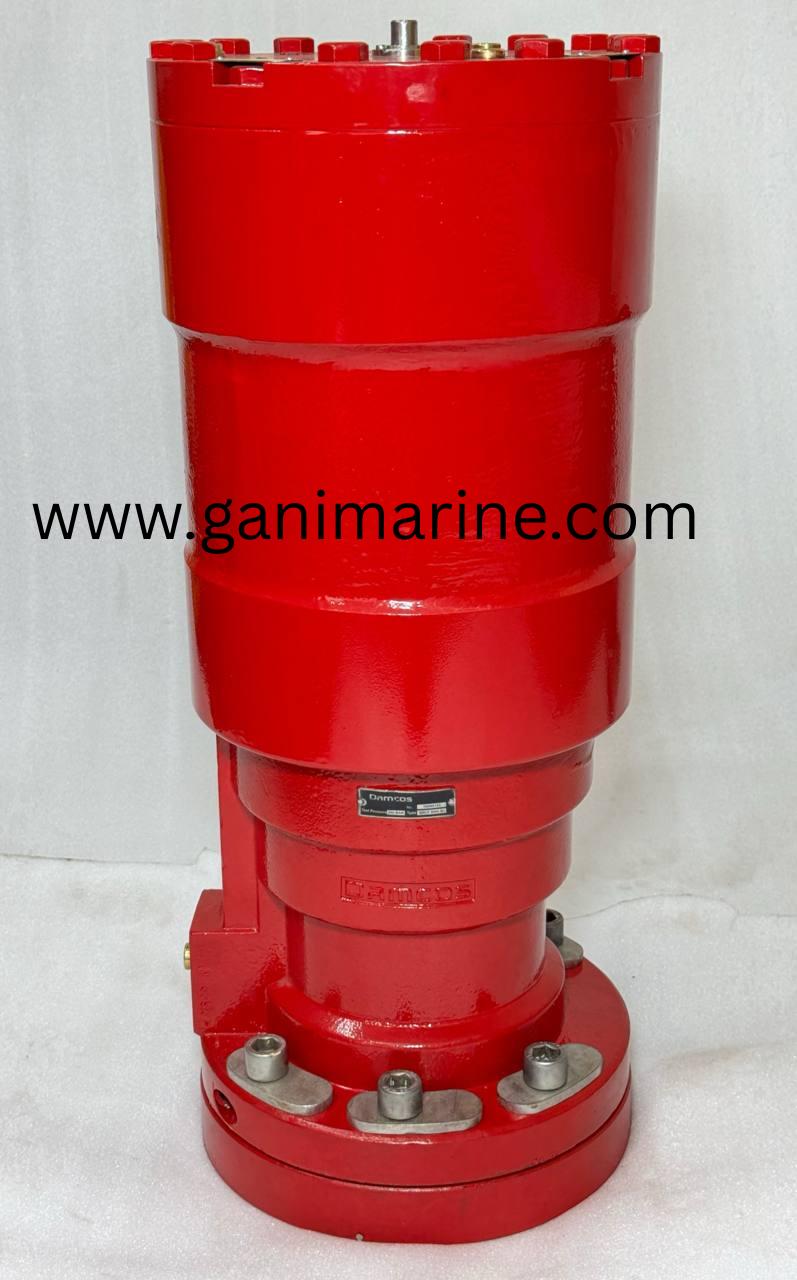

DAMCOS BRCF 8000 B1 hydraulic single-acting balanced rotary actuator 160N4183
DAMCOS BRCF 8000 B1 hydraulic single-acting balanced rotary actuator 160N4183
The DAMCOS BRCF 8000 B1 is a high-performance hydraulic single-acting balanced rotary actuator designed for marine, offshore, and industrial valve operations. Perfect for controlling quarter-turn valves like ball valves, butterfly valves, and plug valves, it ensures precise 90° rotation with fail-safe spring return for maximum safety.
This Damcos BRCF 8000 actuator delivers high torque in a compact, robust design, reducing side forces on your valve stem. With a balanced rotary mechanism and helical spline design, it handles harsh marine environments with ease. Commonly integrated into Emerson Damcos VRC systems, it’s trusted worldwide for reliable valve automation.
This Damcos BRCF 8000 actuator is like a strong robot arm for valves. It turns valves 90 degrees safely and automatically springs back if needed. Works on big ships and factories to make valves open and close easily.
Technical Specifications:
• Type: BRCF 8000 B1 (Fail-close standard; opens via hydraulic pressure on port B, closes via spring)

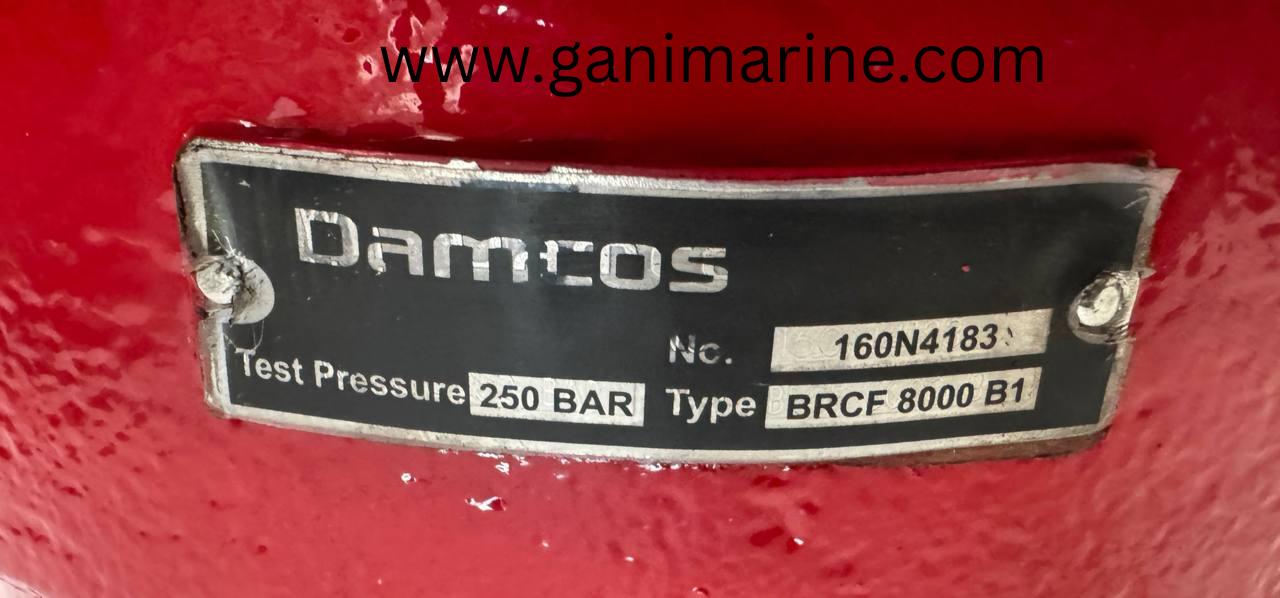

• Part Number: 160N4183 (replaced by 160N5002 in some references)
• Test Pressure: 250 BAR | Working Pressure: 135 BAR | Burst Test: 675 BAR
• Torque: Up to 4800 Nm hydraulic, 2400 Nm spring return breakaway
• Weight: Approx. 290 kg dry (including mounting set)
• Oil Displacement: 1.6 liters
• Temperature Range: -20°C to +80°C
• Rotation: 90° ±1°
• Valve Shaft Compatibility: DIN 6885 / DIN 79 (max Ø95 mm)
Applications:
• Marine and offshore valve control systems
• Ball valves, butterfly valves, plug valves
• Industrial process valve automation
• Ship valve remote control (VRC) systems
• Harsh environments where high torque and reliability are critical
Key Features:
• Fail-safe spring return ensures valves close automatically in emergency
• Balanced rotary design minimizes stress on valve stems
• Compact footprint with high torque output
• Durable for harsh marine and industrial environments
• Helical spline mechanism for smooth and reliable operation
• Compatible with DIN 6885 / DIN 79 valve shafts
