Bosch Rexroth DBDS 20 G 1X/200 direct operated pressure relief valve R983038028
Bosch Rexroth DBDS 20 G 1X/200 direct operated pressure relief valve R983038028
Bosch Rexroth DBDS 20 G 1X/200 is a direct operated pressure relief valve designed to protect hydraulic systems by limiting maximum pressure. This unit appears to be new and unused stock, with clean blue housing and factory-installed port protection plugs. The valve is suitable for industrial, marine, offshore, and hydraulic power unit applications where fast and reliable pressure relief is required.
Manufacturer Details
• Manufacturer: Bosch Rexroth (Bosch Group)
• Country of Origin: Made in India
• Condition: New

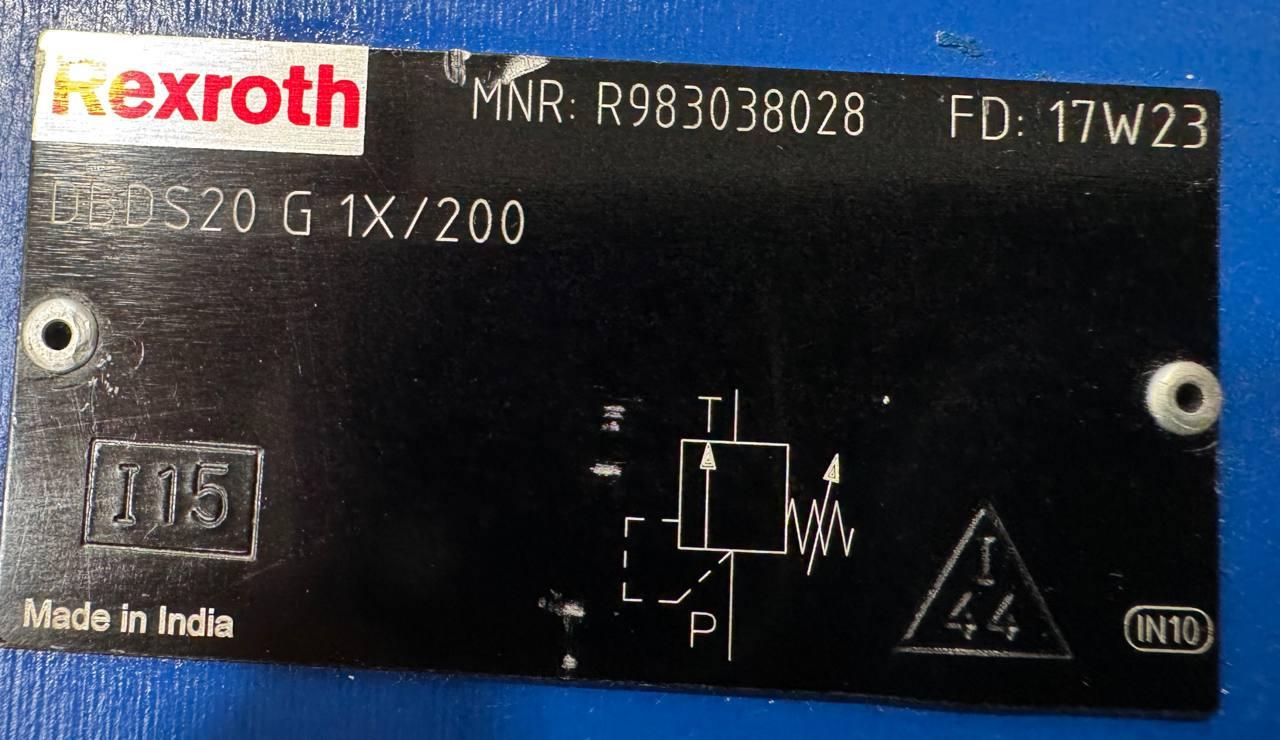

Identification from Nameplate & Body
• Material Number (MNR): R983038028
• Assembly Model Code: DBDS 20 G 1X/200

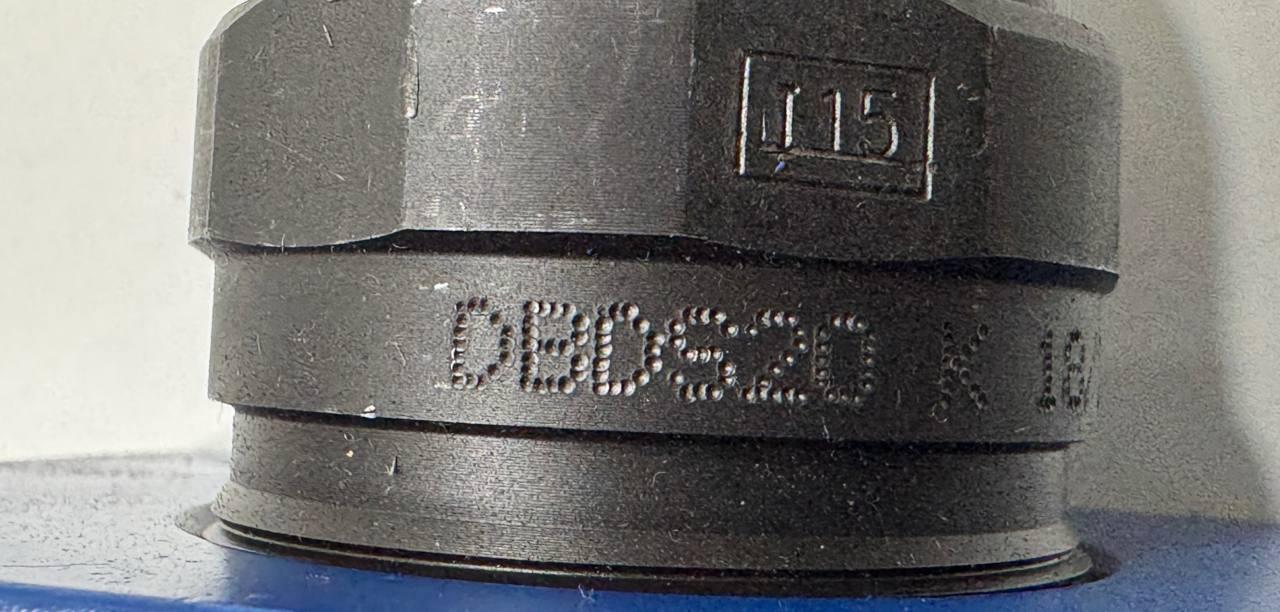

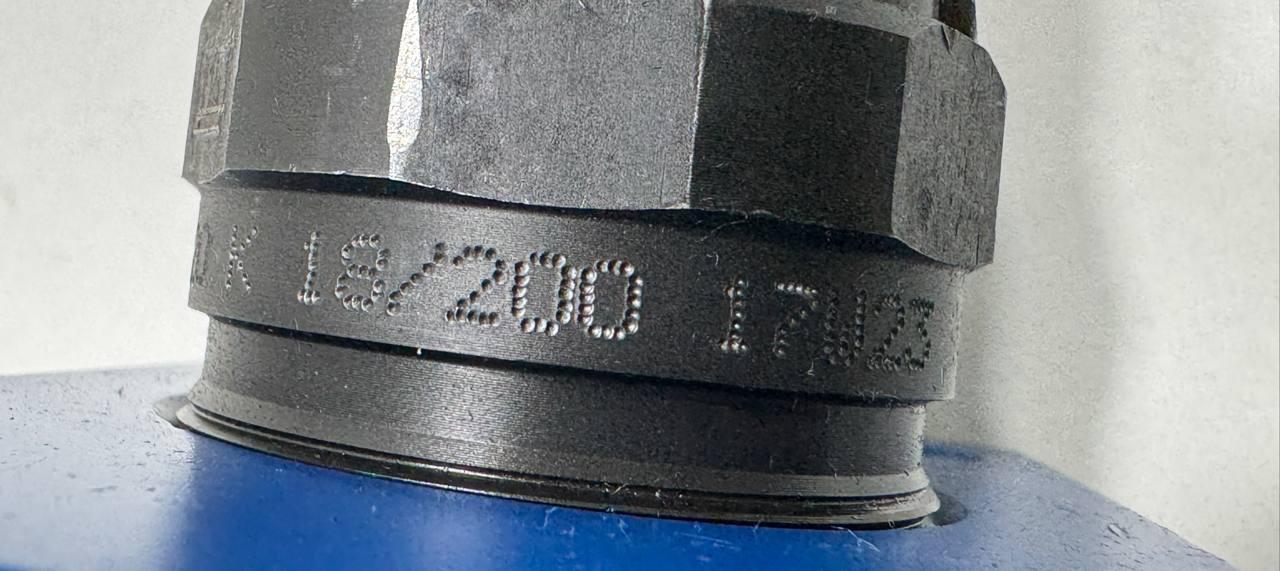

• Cartridge Code (Body Stamping): DBDS 20 K 1X/200
• Series: 1X
• Date Code (FD): 17W23 (Year 2017, Week 23)
Model Code Breakdown
• DBD – Direct operated pressure relief valve
• S – Adjustment with hexagon screw and protective cap
• 20 – Nominal size NG20
• G – Threaded connection block (blue housing)
• K – Cartridge insert inside housing
• 1X – Design series (interchangeable within 10–19 series)
• 200 – Pressure setting range up to 200 bar
Technical Specifications
• Valve Type: Pressure Relief Valve
• Operating Principle: Direct Operated
• Nominal Size: NG20
• Pressure Range: Up to 200 bar
• Adjustment Type: Manual screw with protective cap
• Mounting: Threaded connection / cartridge in block
• Ports: P (Pressure), T (Tank)
• Seals: NBR
• Hydraulic Fluid: Mineral oil (HL, HLP)
• Response: Fast pressure relief
• Design: Normally closed
Functional Description
The DBDS 20 G 1X/200 is a normally closed pressure relief valve. Hydraulic pressure enters through Port P. When system pressure exceeds the preset spring force, the internal poppet opens and diverts oil to Port T (Tank). This action limits system pressure to the adjusted maximum value of up to 200 bar. Once pressure drops below the set value, the valve closes automatically.

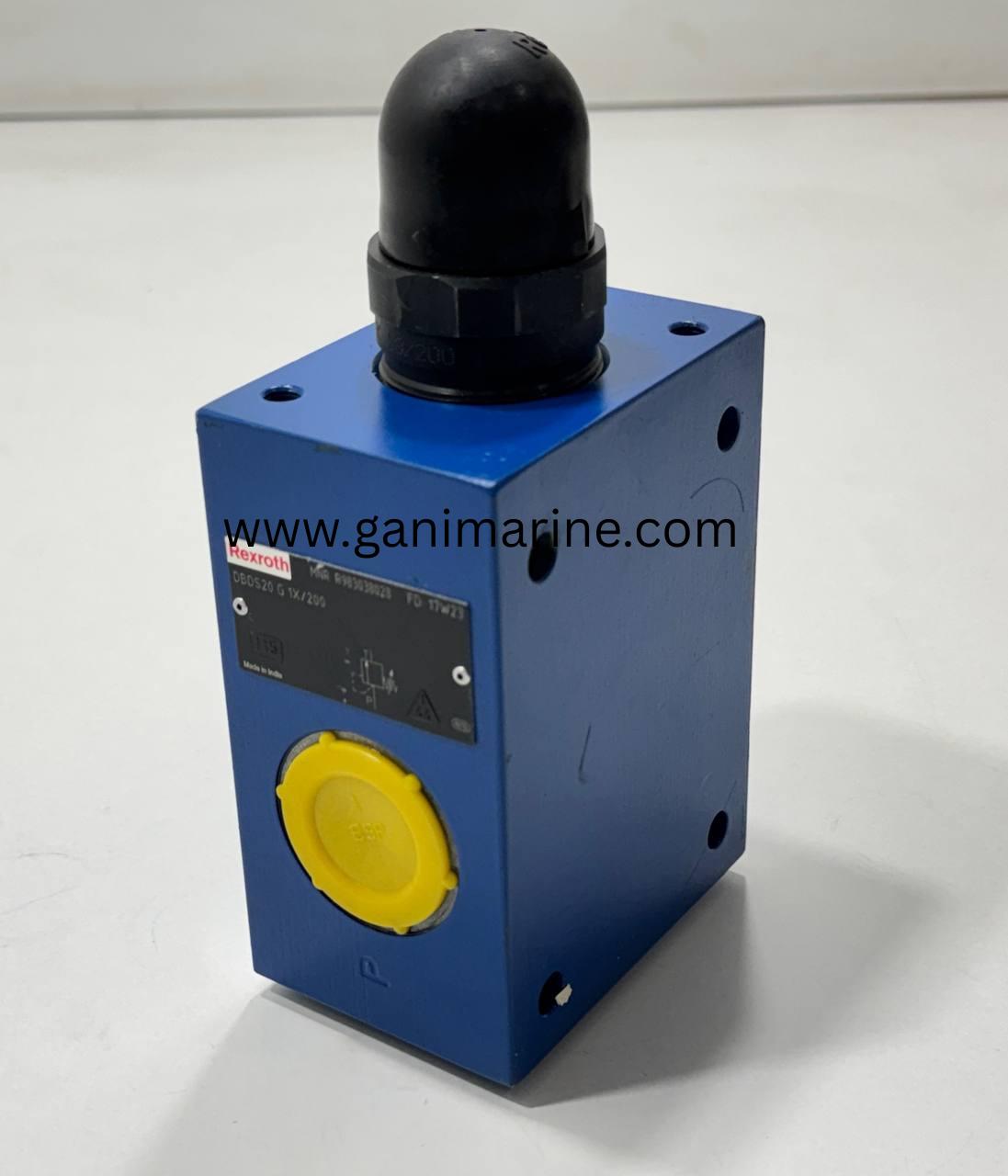

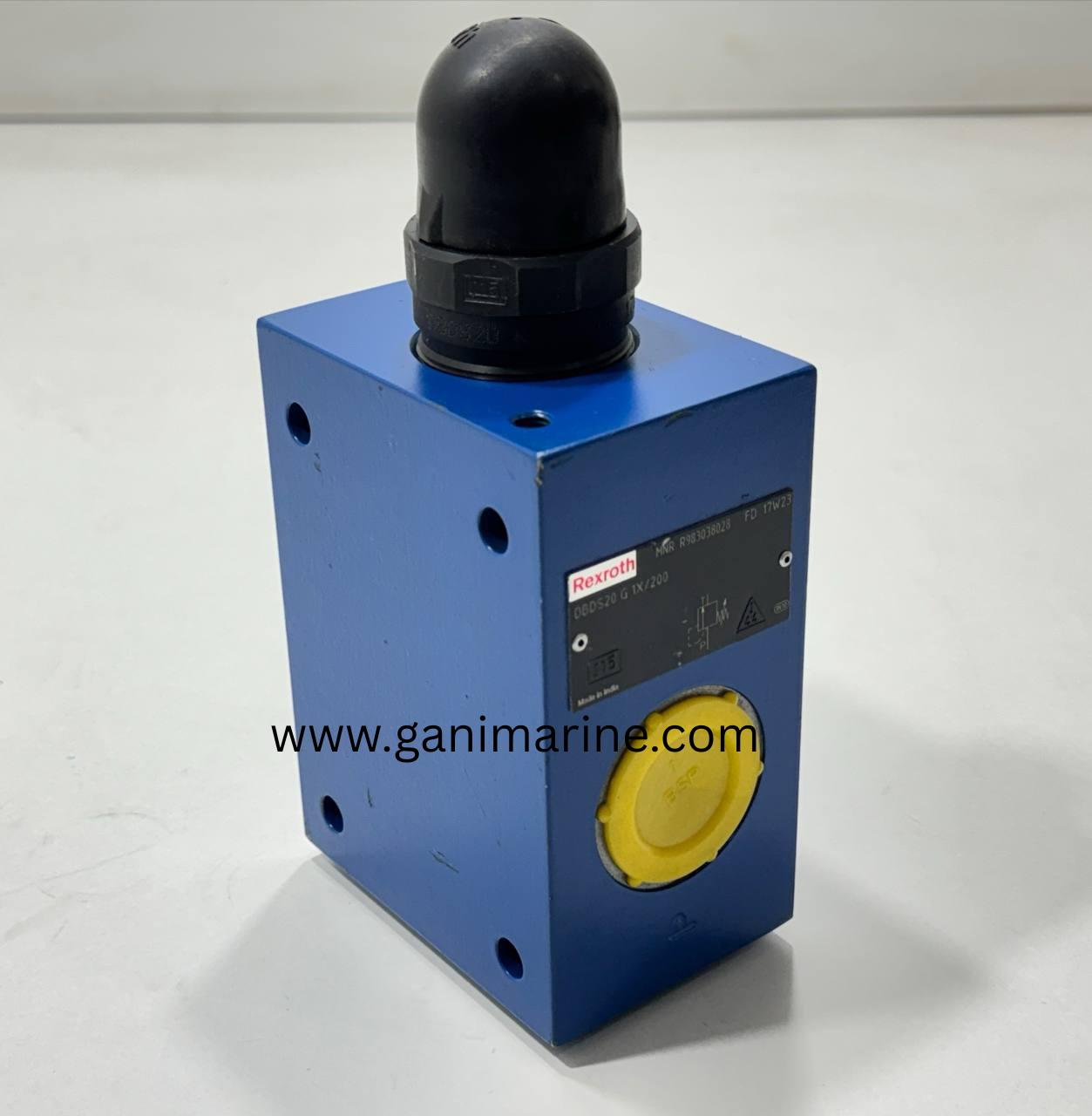

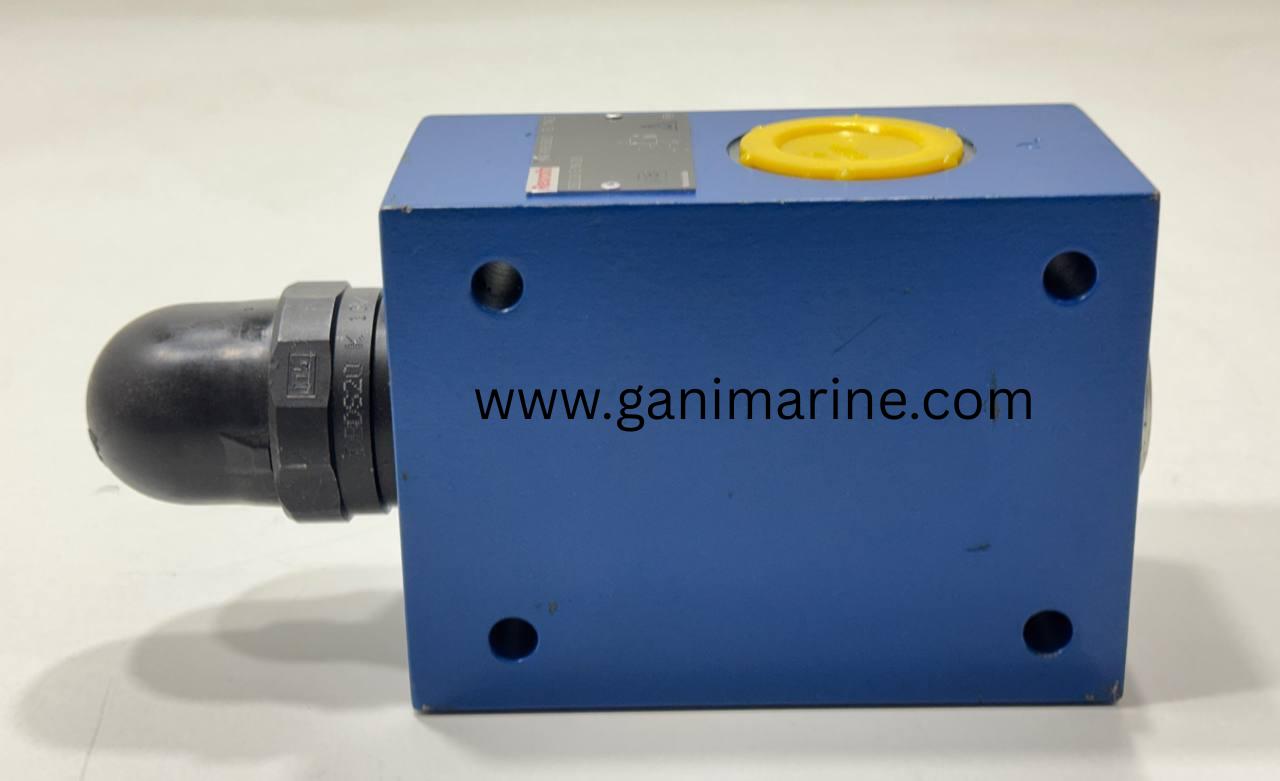

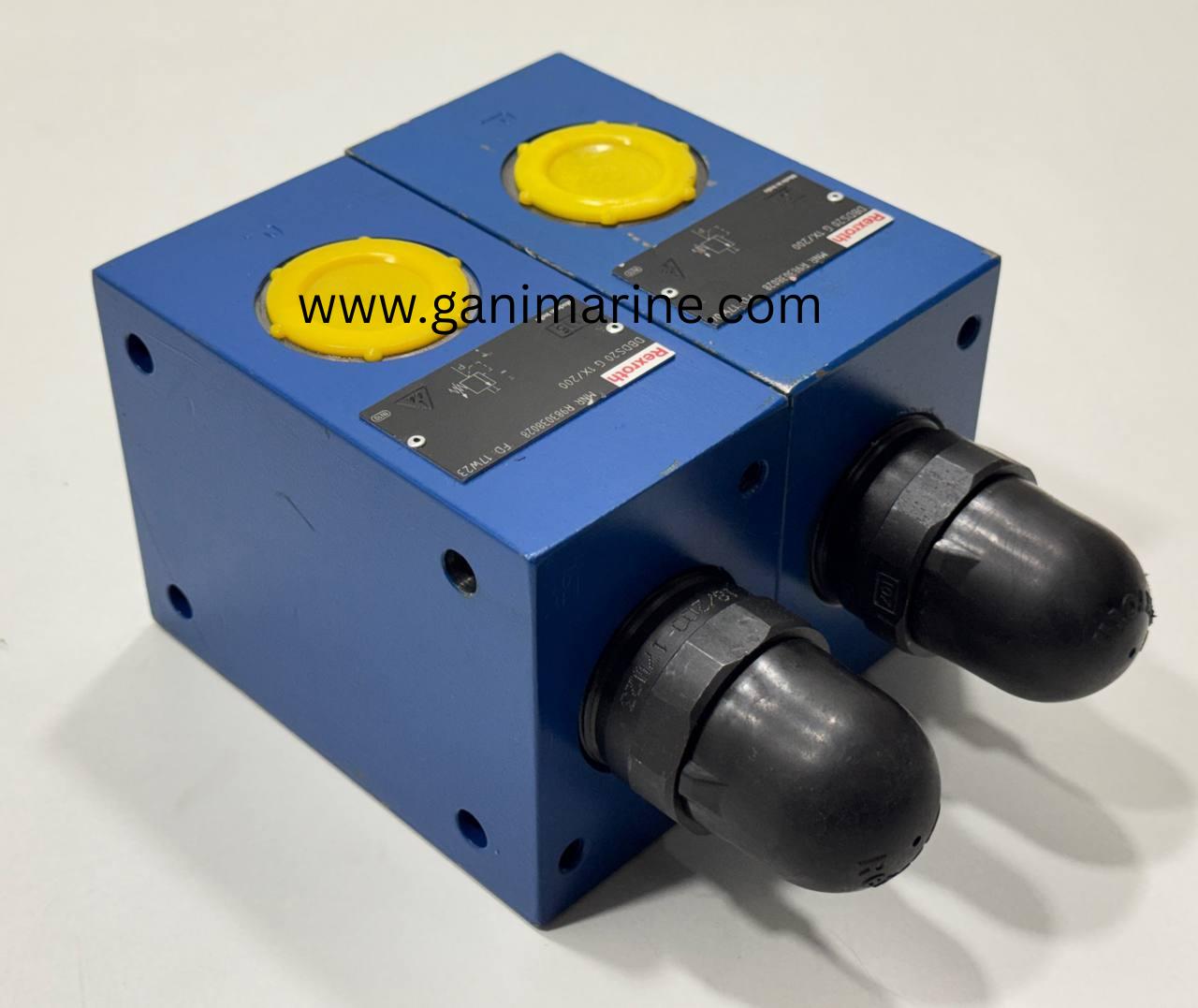

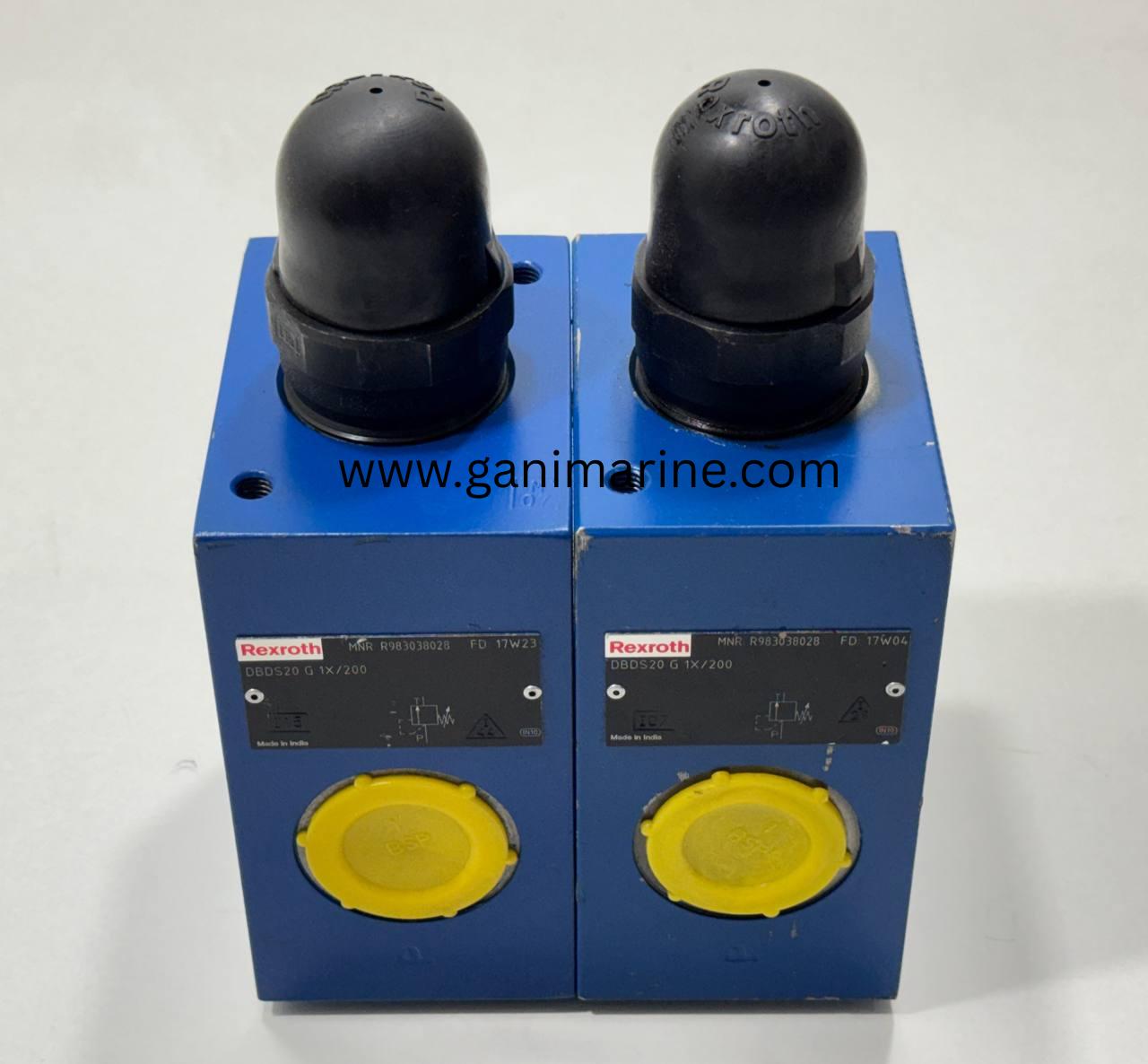

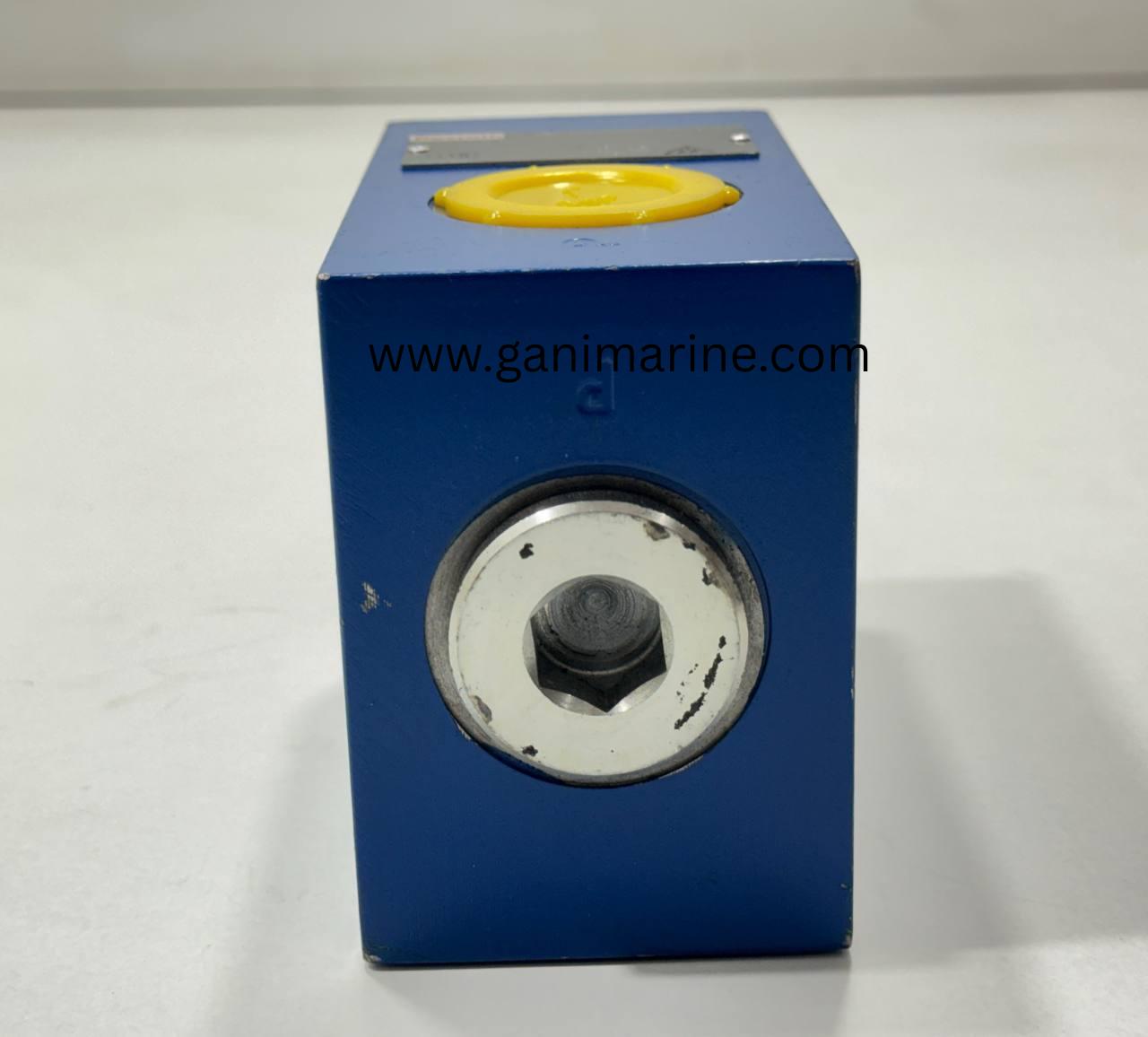

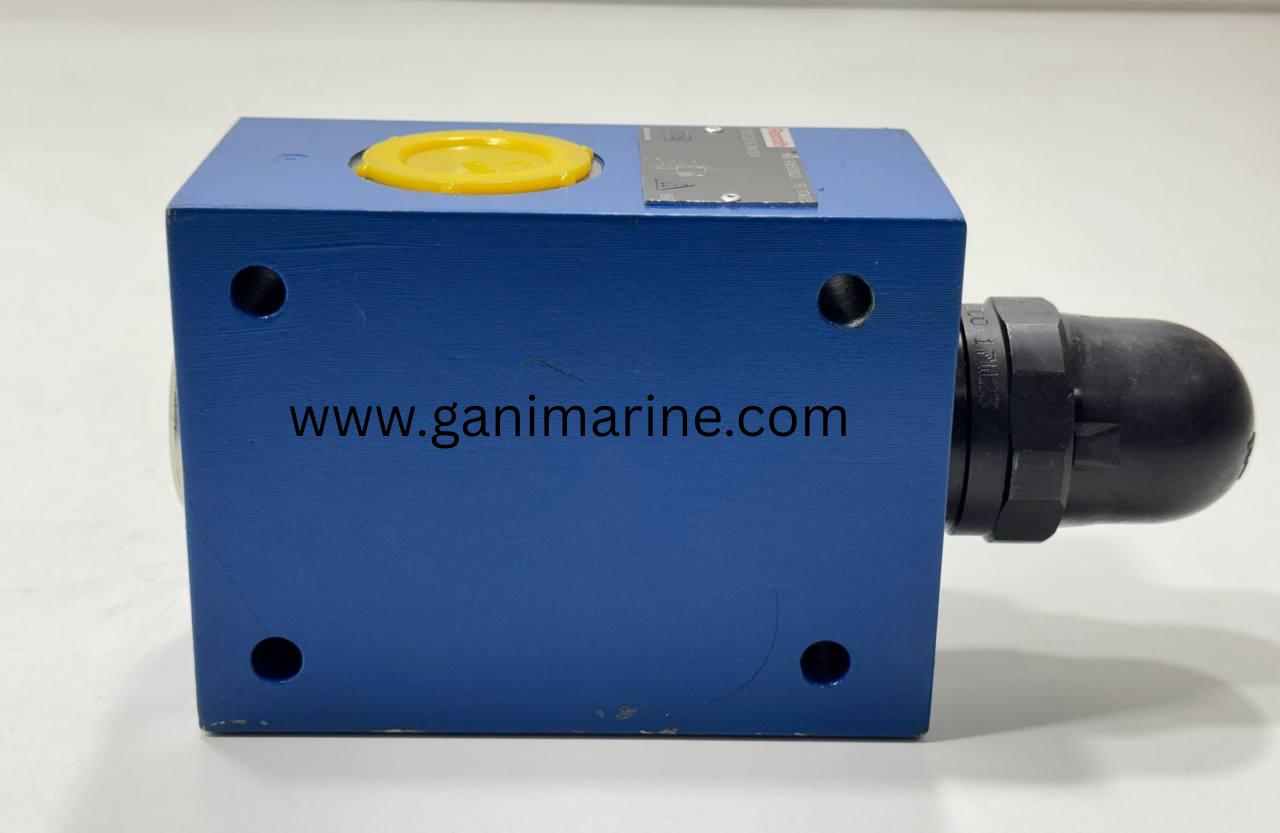

Visual & Physical Details
• Blue painted metal housing with threaded ports

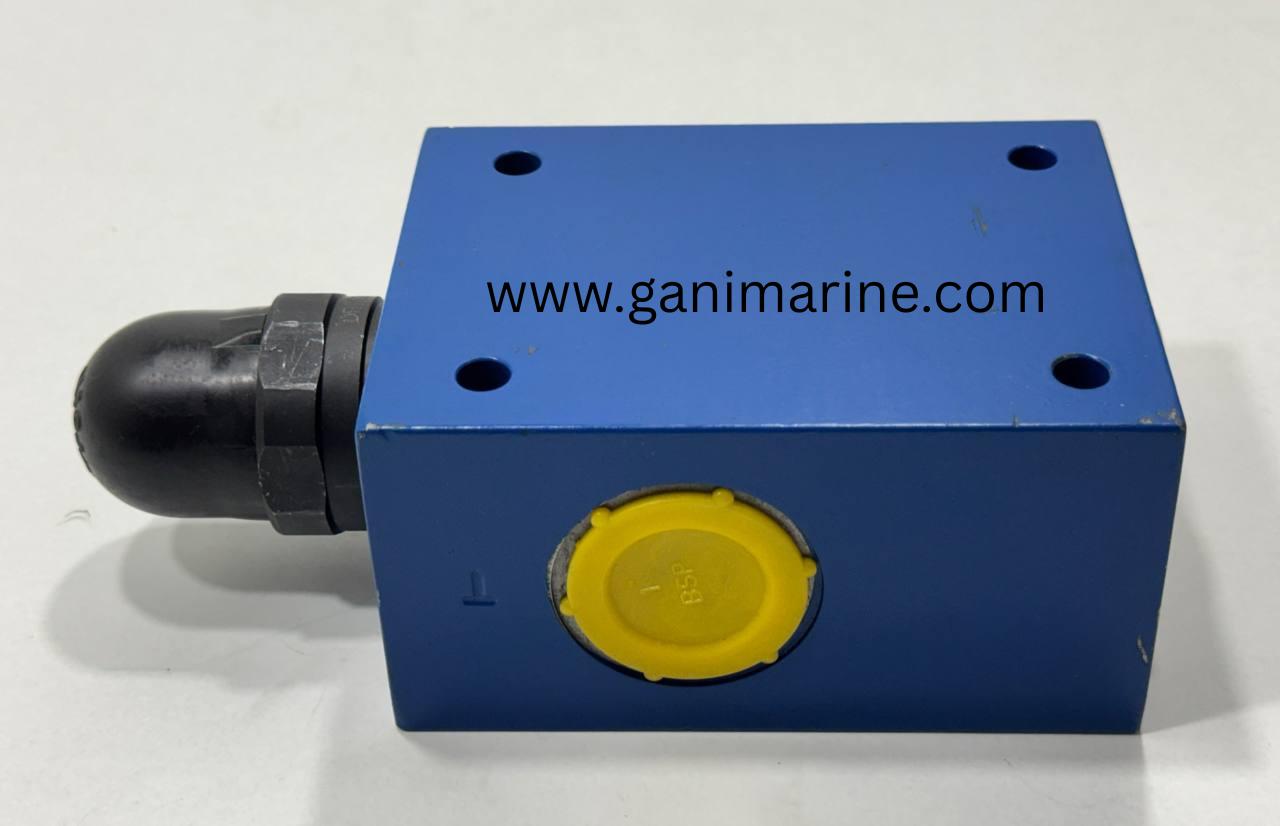

• Yellow protective port plugs installed

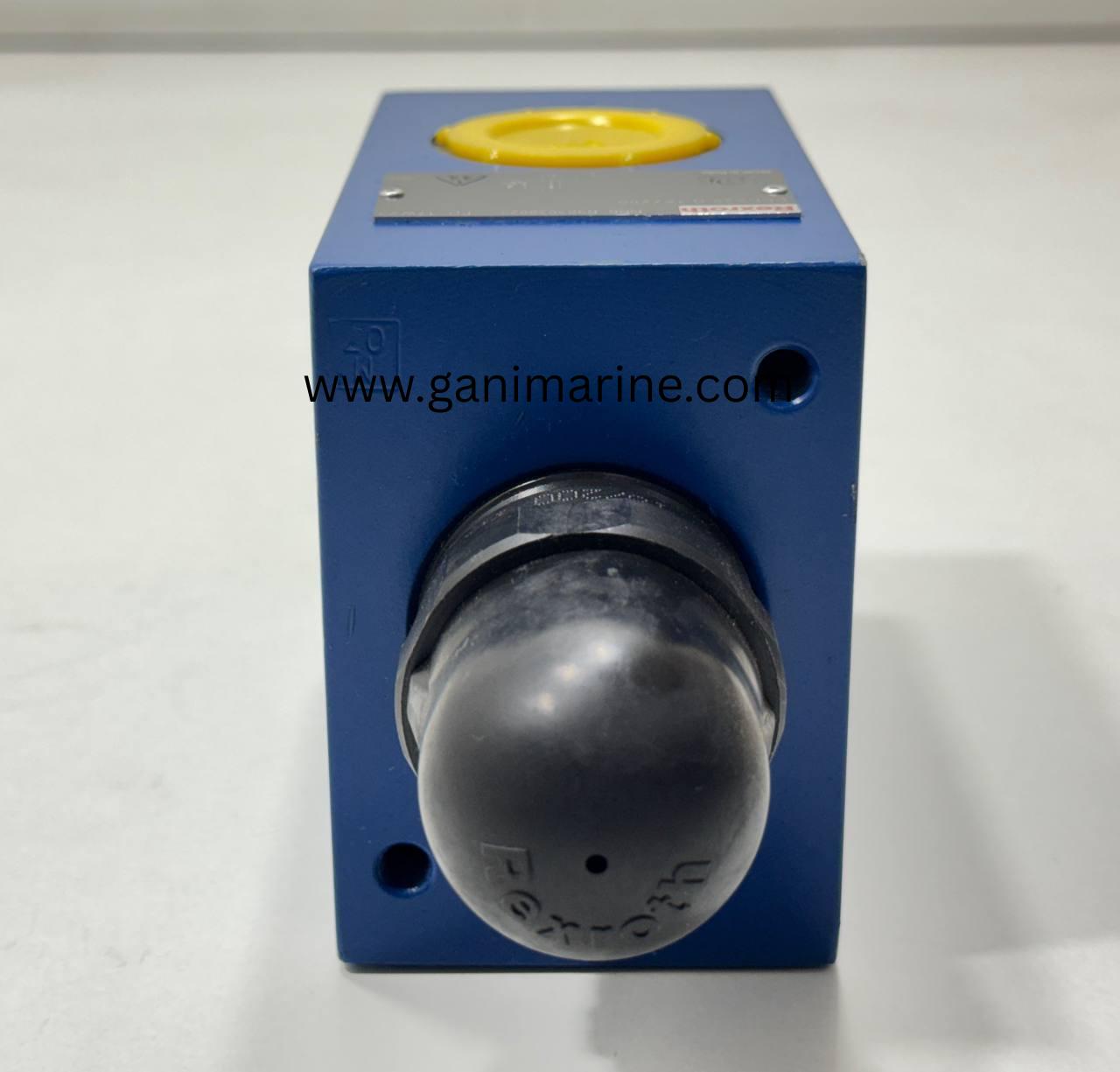

• Black plastic protective cap over adjustment screw
• Clear ISO hydraulic symbol on nameplate
• Clean body condition indicating unused stock
Applications
Used in:
• Hydraulic Power Units (HPU)
• Industrial Hydraulic Systems
• Pilot Circuits
• Safety Pressure Limiting
• Marine Hydraulic Systems
• Offshore Equipment
• Ship Engine Room Hydraulics
• Press Machines
• Process Automation Systems
Key Features
• Direct operated design
• Fast response time
• Reliable pressure protection
• Simple mechanical construction
• Easy pressure adjustment
• Long service life
• Low maintenance
• Genuine Bosch Rexroth quality
