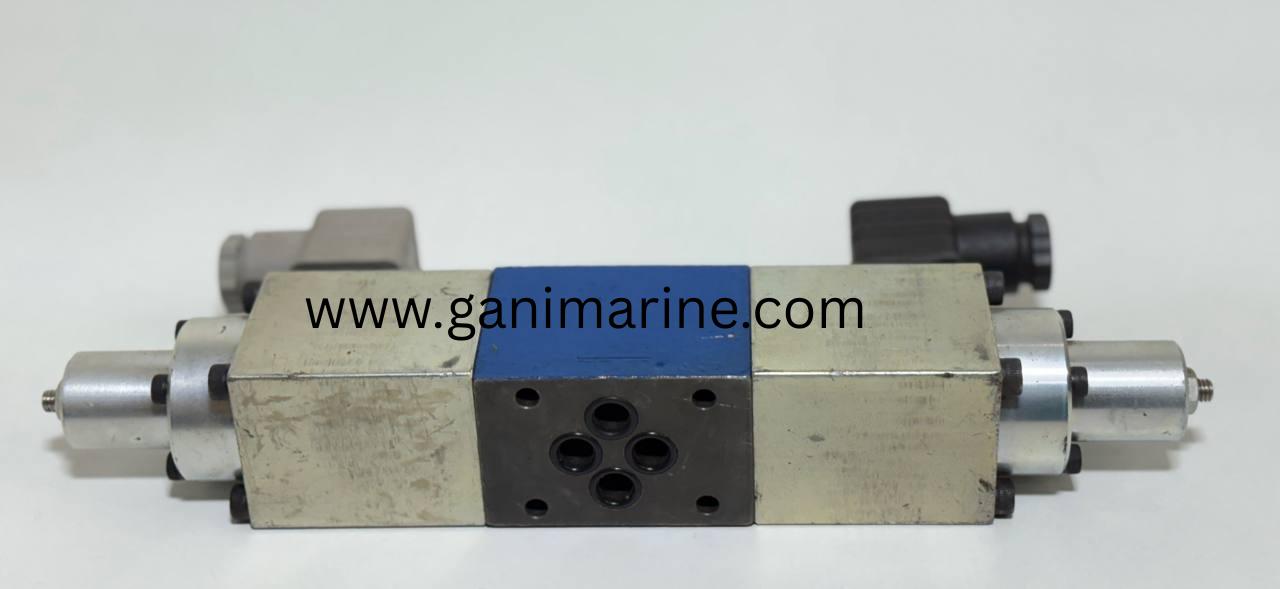

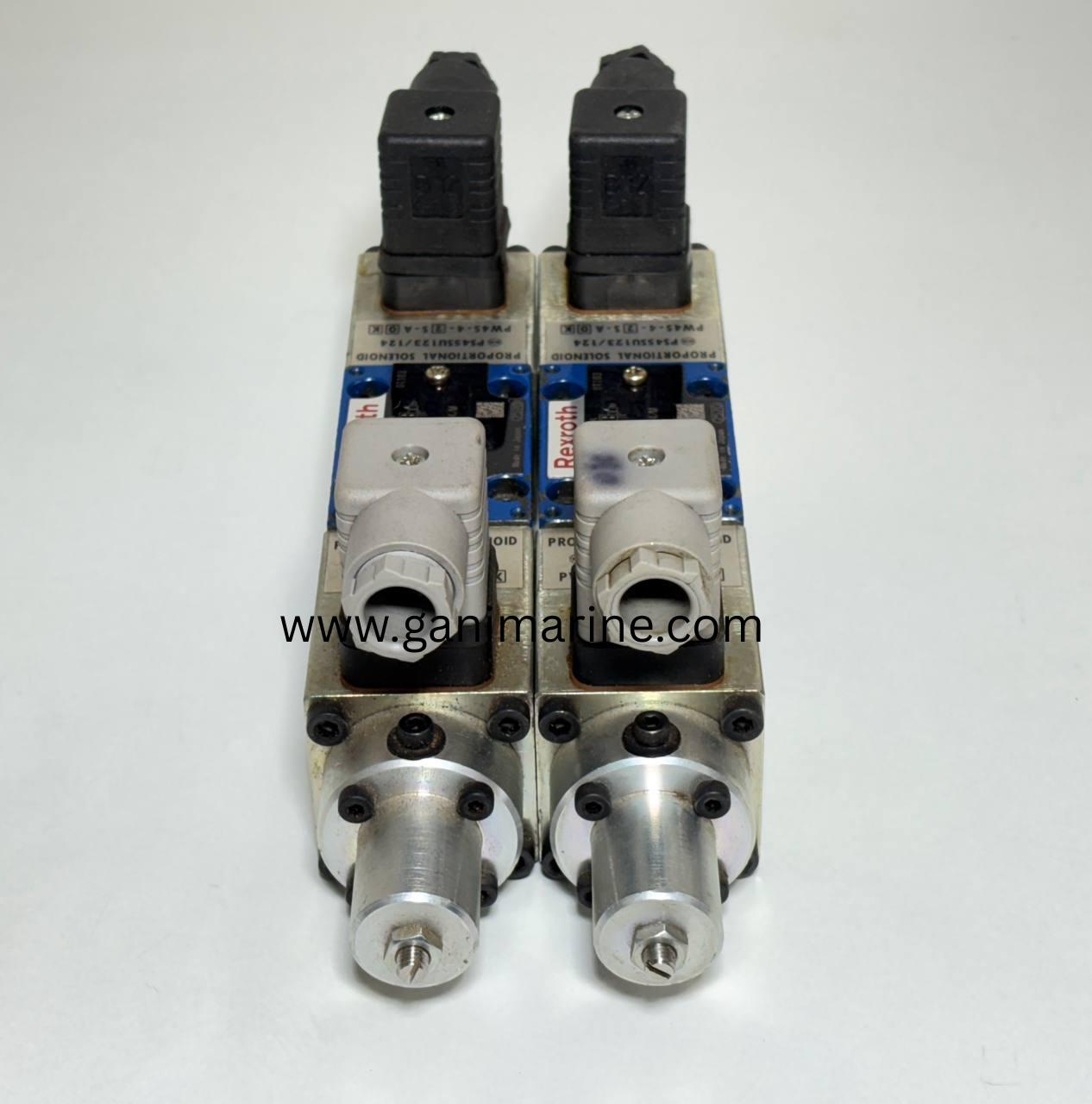

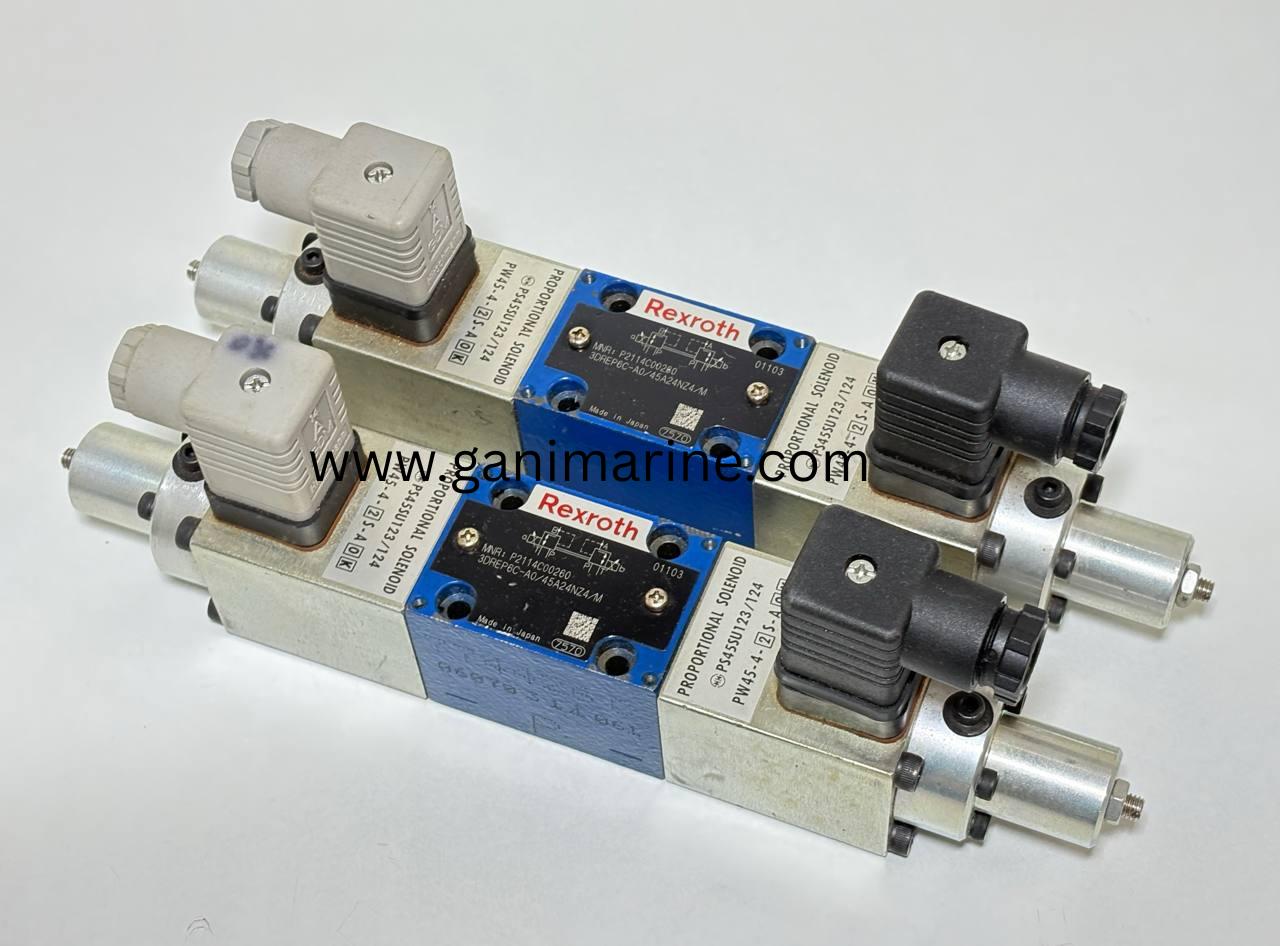

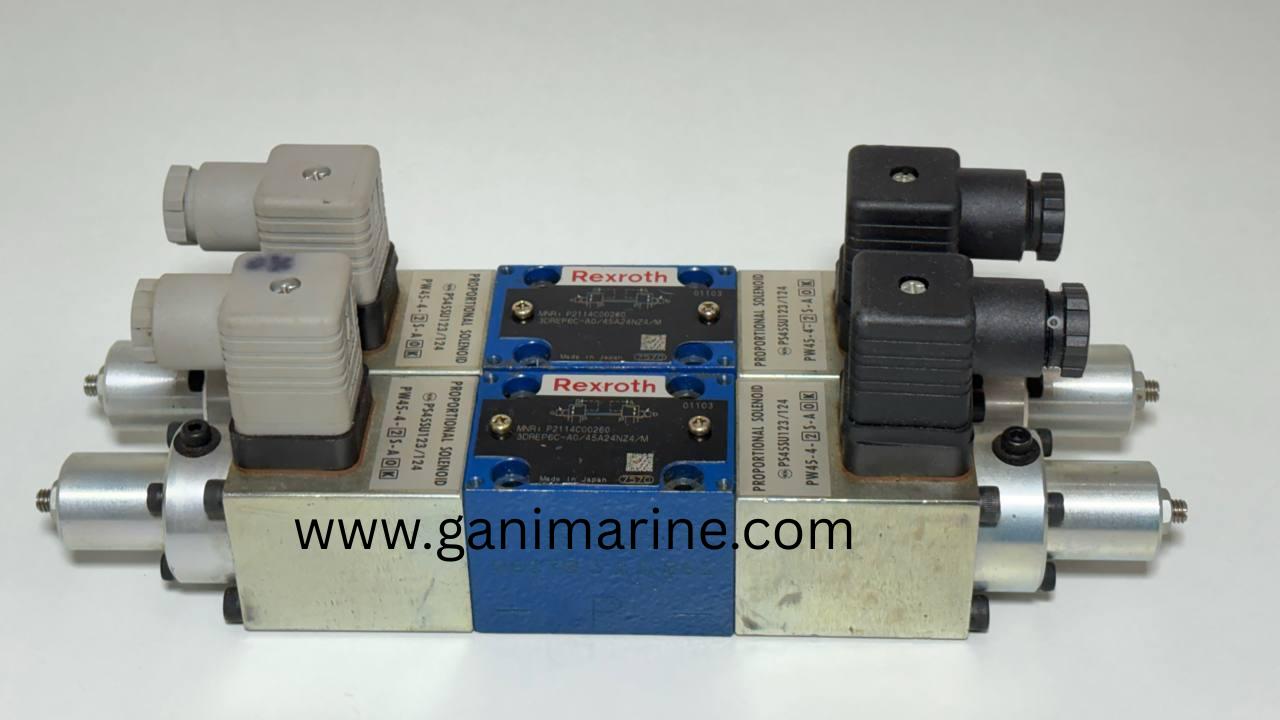

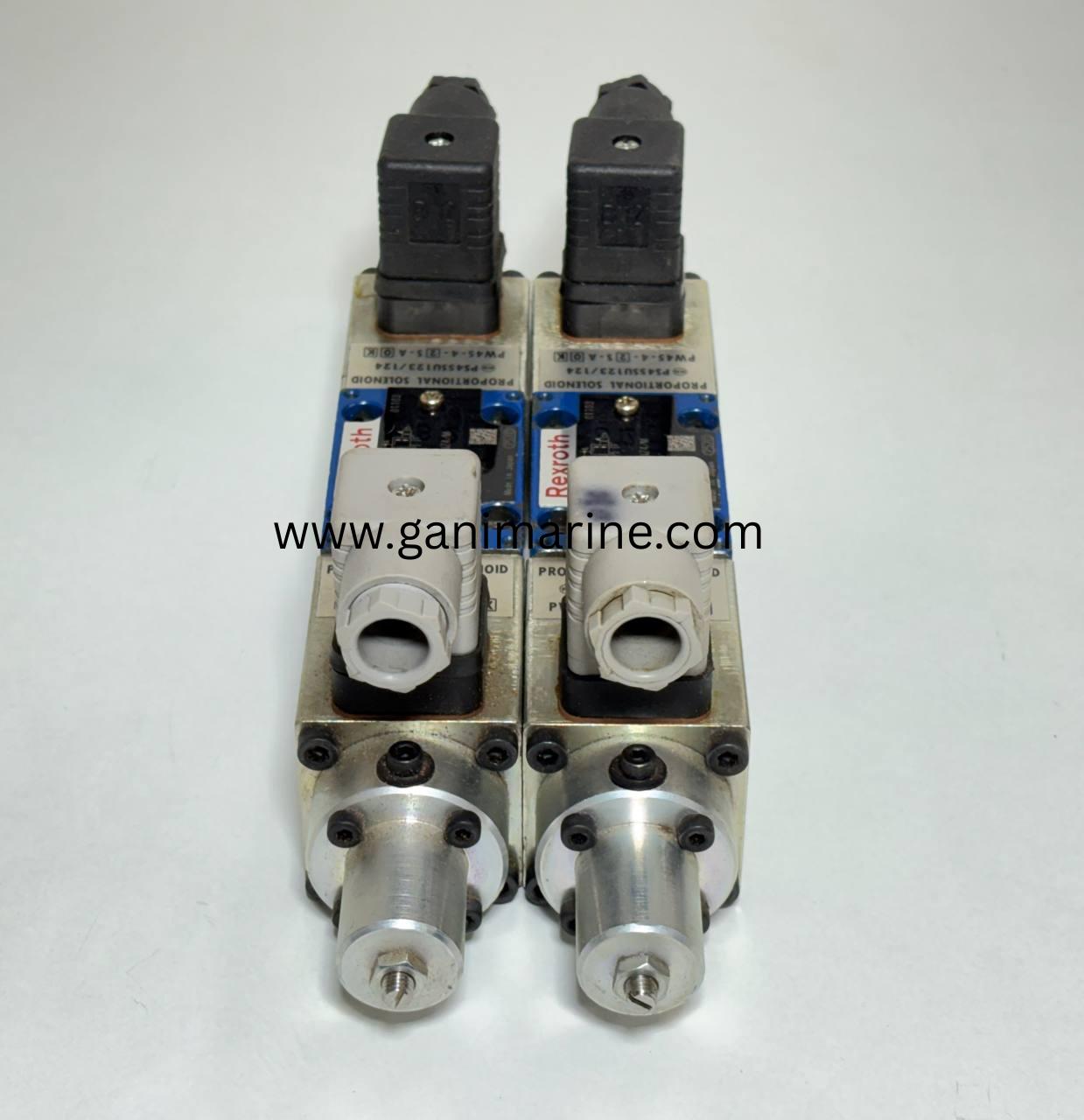

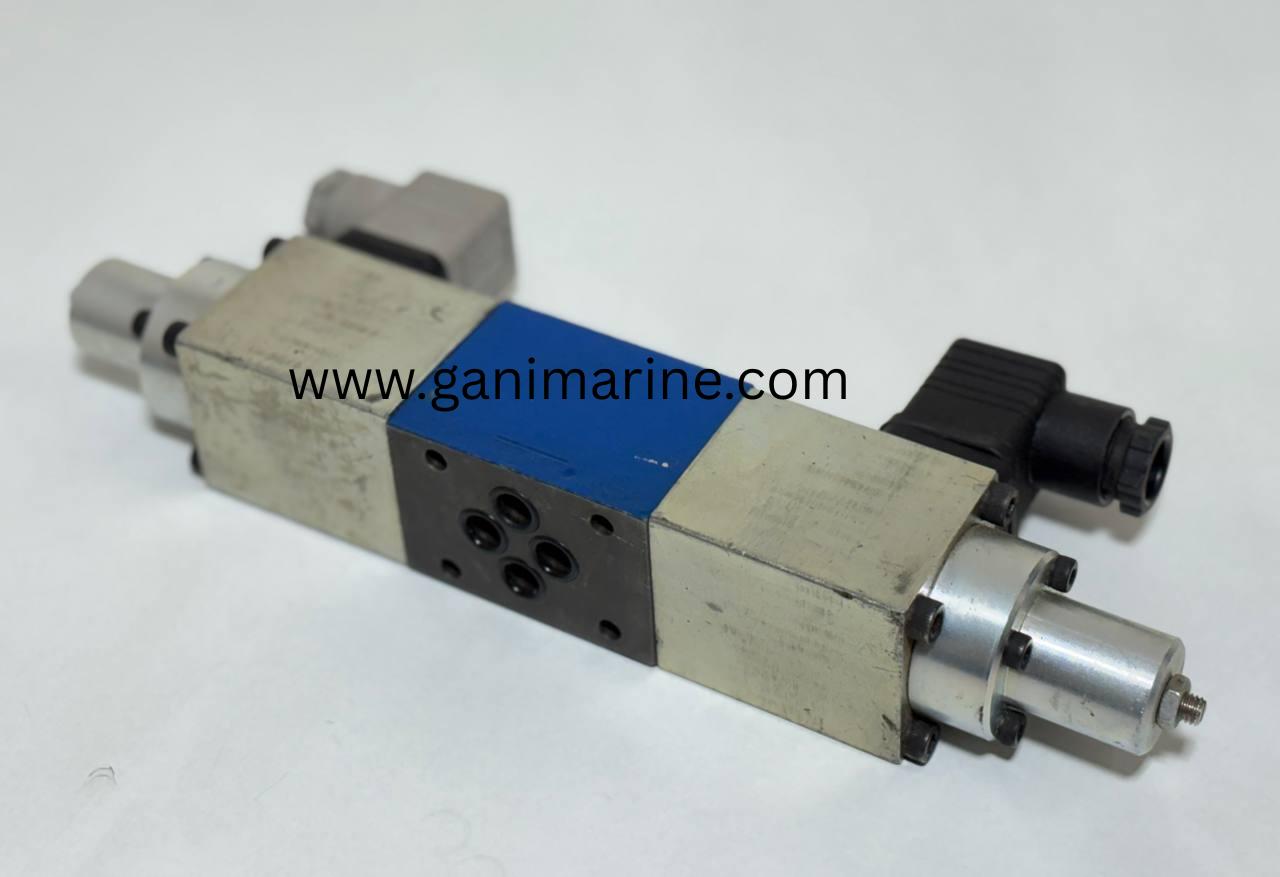

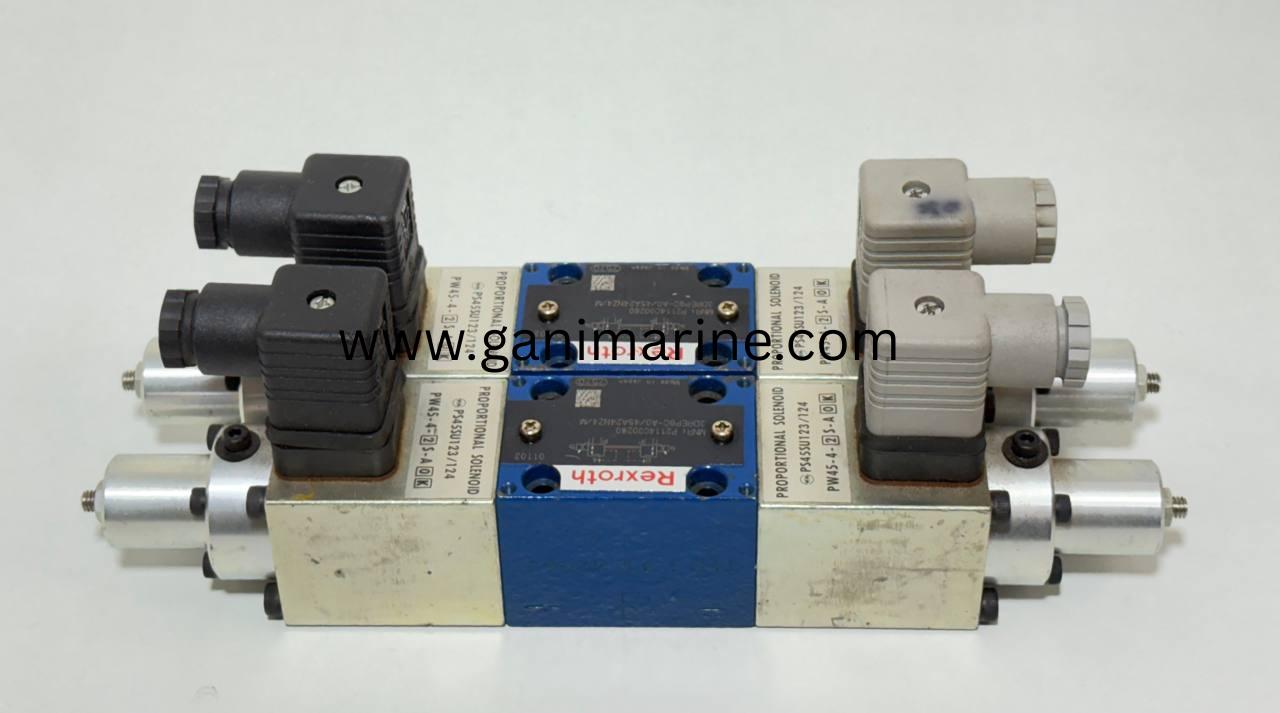

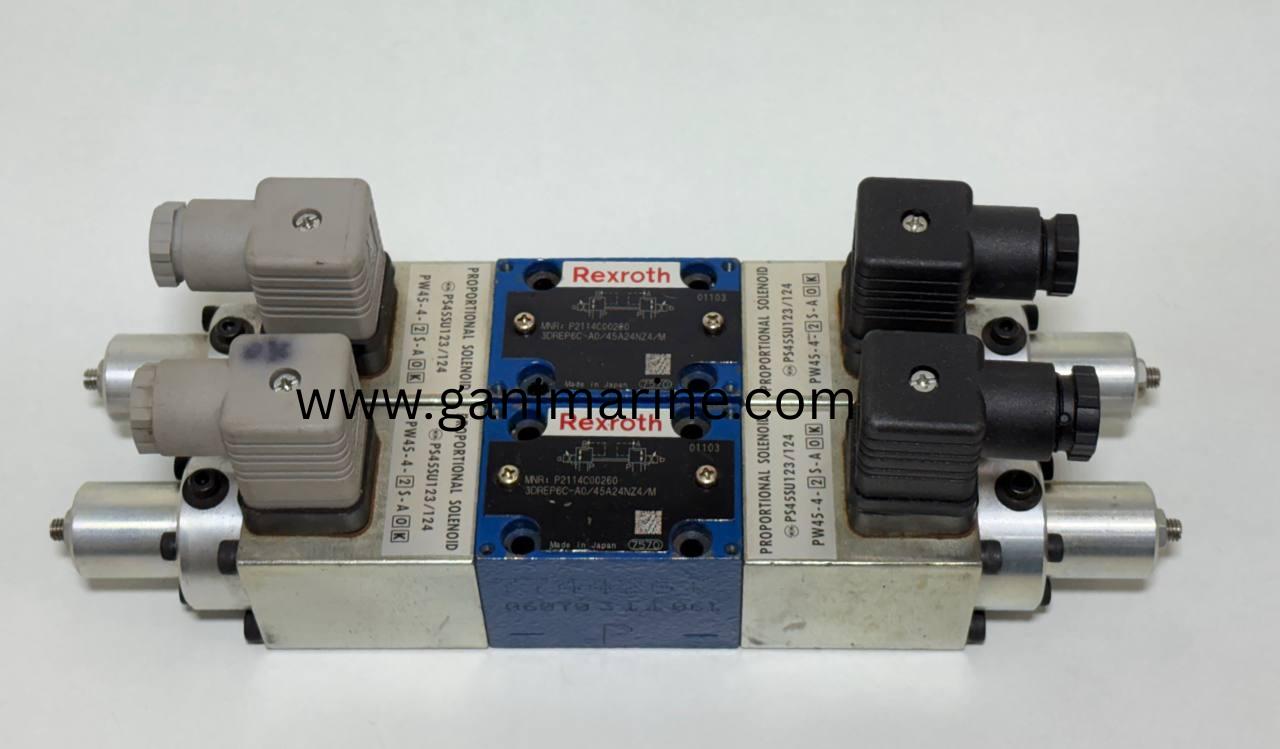

Bosch Rexroth 3DRE6C-A/045AN24Z/M Proportional Pressure Reducing Valve
Bosch Rexroth 3DRE6C-A/045AN24Z/M Proportional Pressure Reducing Valve

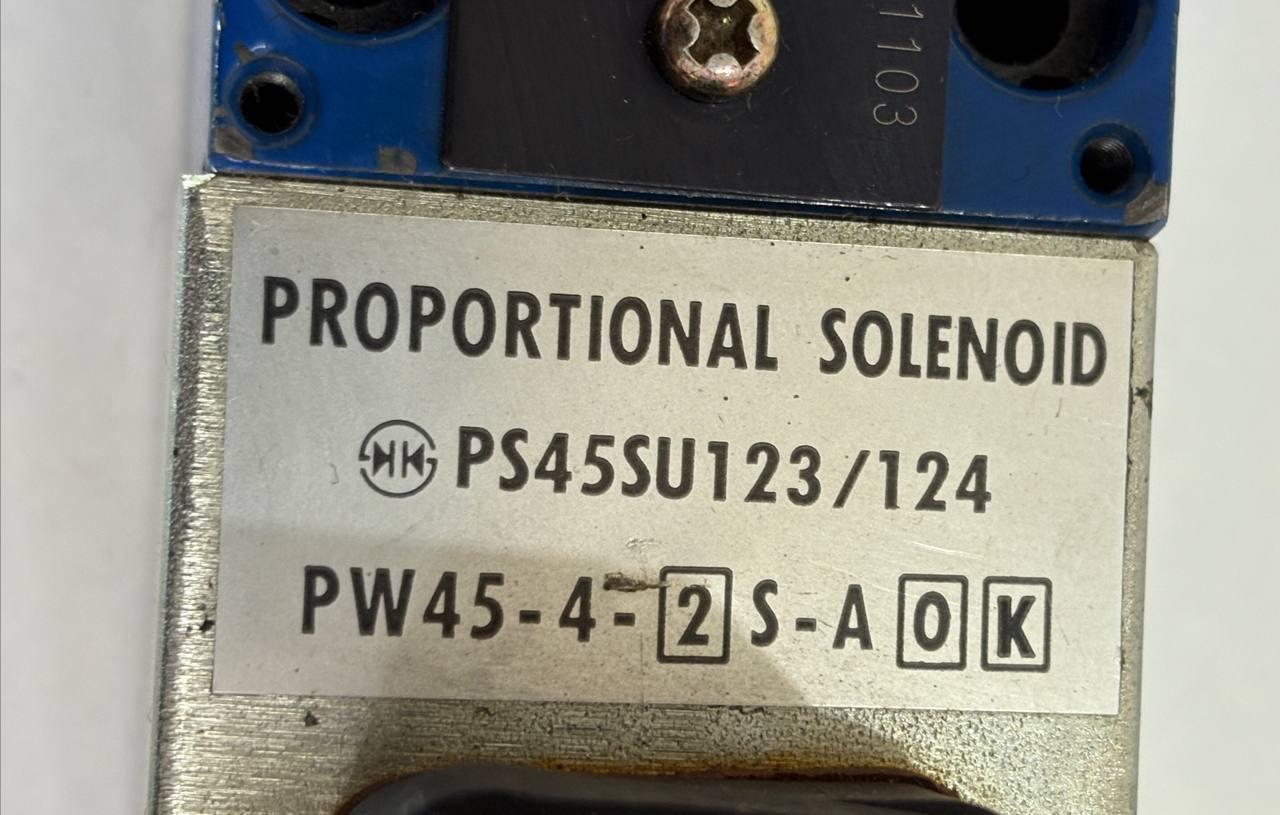

The Bosch Rexroth 3DRE6C-A/045AN24Z/M is a direct-operated 3-way proportional pressure reducing valve, designed for highly accurate hydraulic pressure control in industrial machinery, marine hydraulics, offshore systems, and automation applications. Equipped with wet-pin proportional DC solenoids (MKP S455U123/124, PW45-4-2S-A-OK), it converts an electrical command signal into proportional hydraulic pressure, ensuring smooth, precise, and stable pressure reduction.
This Rexroth 3DRE6C valve features ISO 4401-03-02-0-05 porting (NG6 size), supports 24V DC control, and handles up to 100 bar pressure and 15 l/min flow. Manufactured in Japan, it offers high reliability, excellent response behavior, and long service life, making it ideal for hydraulic control systems, industrial automation, presses, molding machines, marine hydraulic control, power units, and heavy-duty hydraulic equipment.
Key Specifications
• Model: 3DRE6C-A/045AN24Z/M
• Manufacturer: Bosch Rexroth – Made in Japan

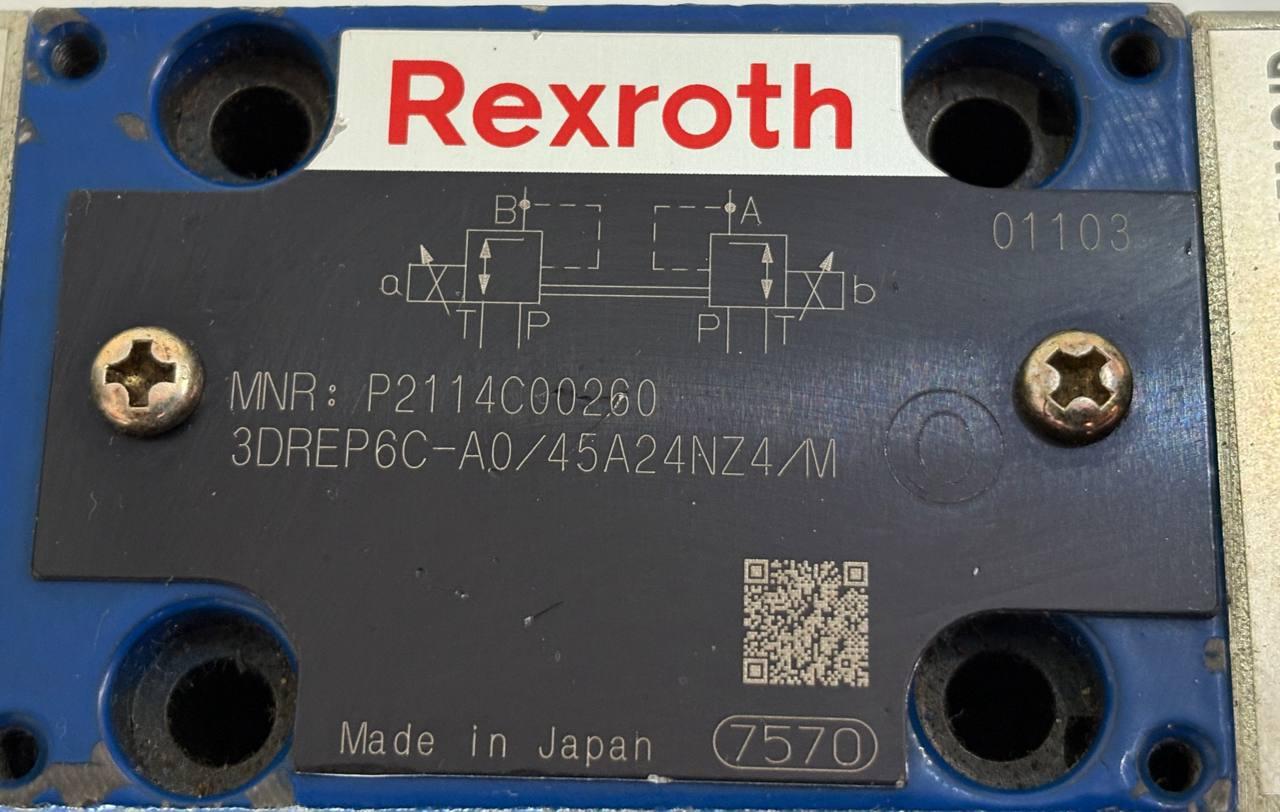

• Manufacturer Reference Numbers: P211400296 / P2114C00296
• Design: Direct operated, 3-way proportional pressure reducing valve
• Size: NG6 / ISO 4401-03-02-0-05 (without locating hole)
• Maximum Operating Pressure: 100 bar at ports P, A, B
• Flow Capacity: 15 L/min
• Voltage: 24V DC (24Z code)
• Component Series: A / Series 10
• Control Type: Electrical current to proportional hydraulic pressure
• Solenoid Type: Wet-pin proportional solenoids MKP S455U123/124
• Operation Rule: Only one solenoid should be energized at a time
Function & Operation Description
The Rexroth 3DRE6C proportional pressure valve regulates hydraulic pressure proportionally to an electrical signal. The proportional solenoids move the internal spool against springs, adjusting hydraulic pressure at port A or B. When de-energized, the spool centers, blocking or relieving flow to tank. This ensures:
• Smooth pressure control
• Fast response
• Stable and accurate regulation
• Fail-safe neutral positioning
Applications
• Hydraulic power units
• Marine hydraulic systems & offshore control
• Industrial machinery
• Press machines
• Injection molding machines
• CNC & automation equipment
• Heavy industrial equipment
• OEM hydraulic systems
• Process control systems
Product Features
• High-precision proportional control
• Reliable Bosch Rexroth quality – Japan build
• Direct operated compact NG6 size
• 3-way pressure reducing function
• Stable performance under demanding environments
• Compatible with ISO 4401 hydraulic manifolds
• Low hysteresis and excellent repeatability
• Suitable for continuous operation
• Long service life
