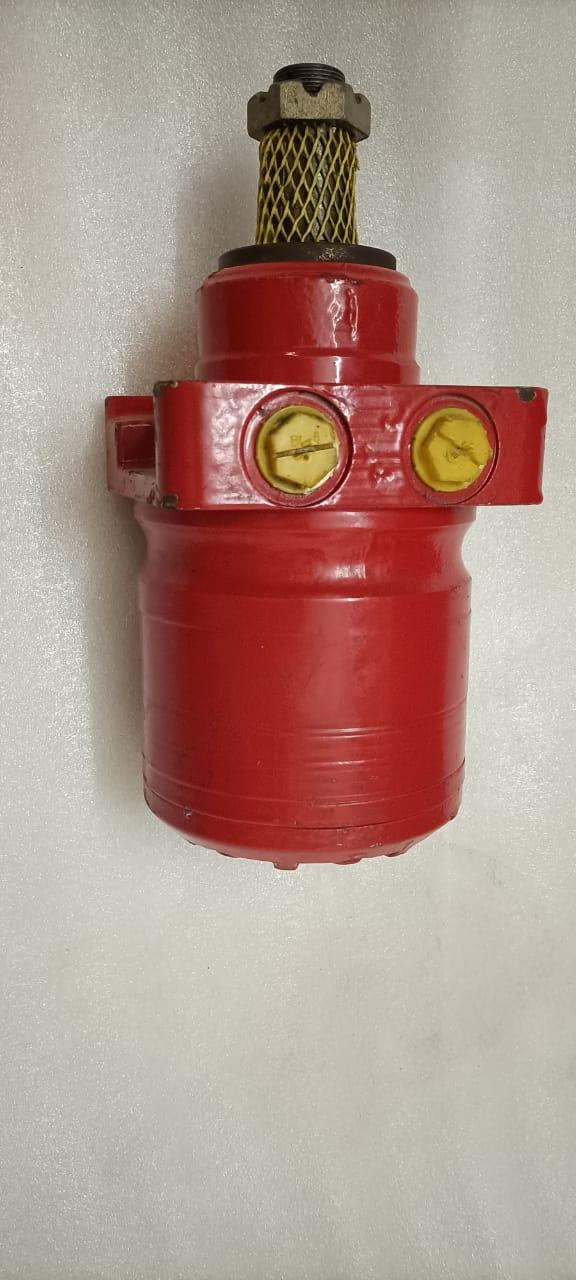

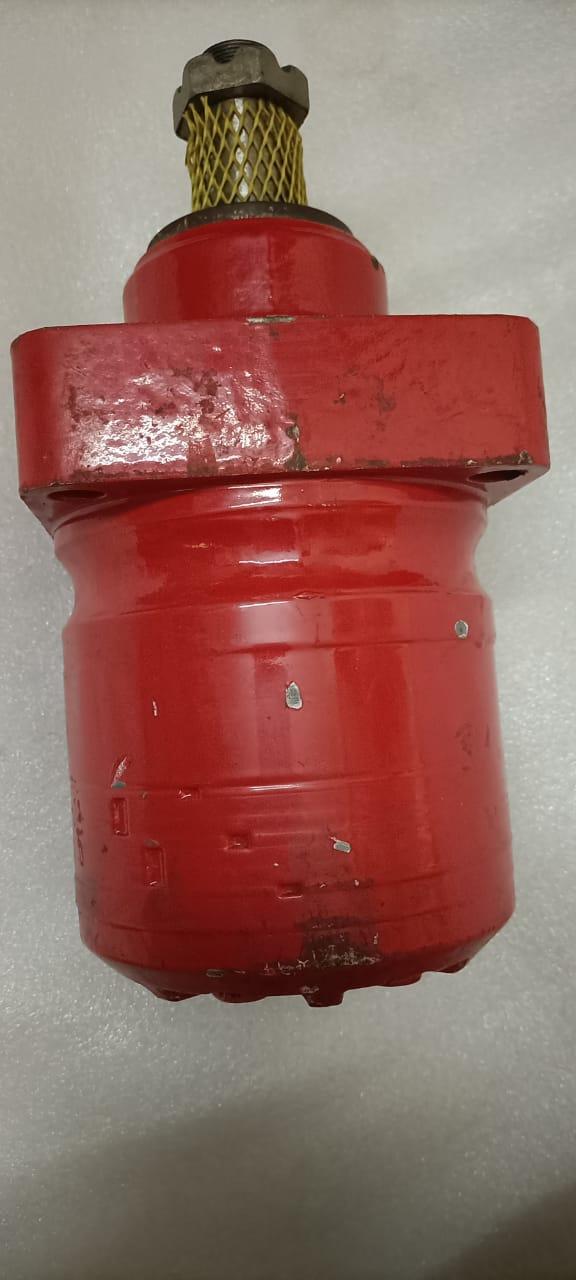

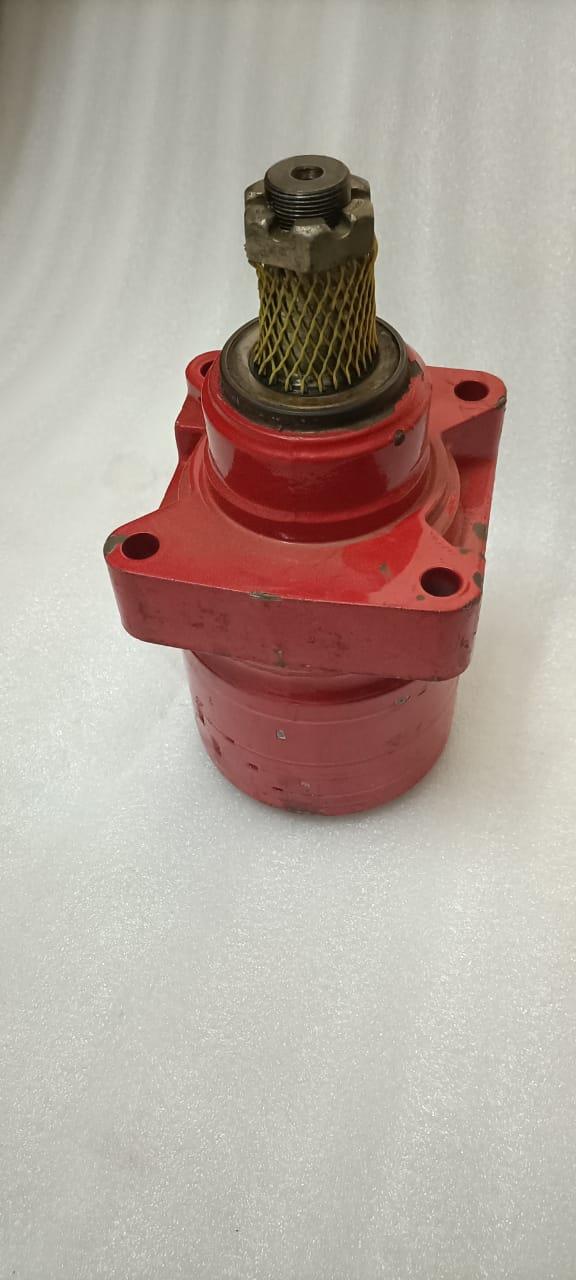

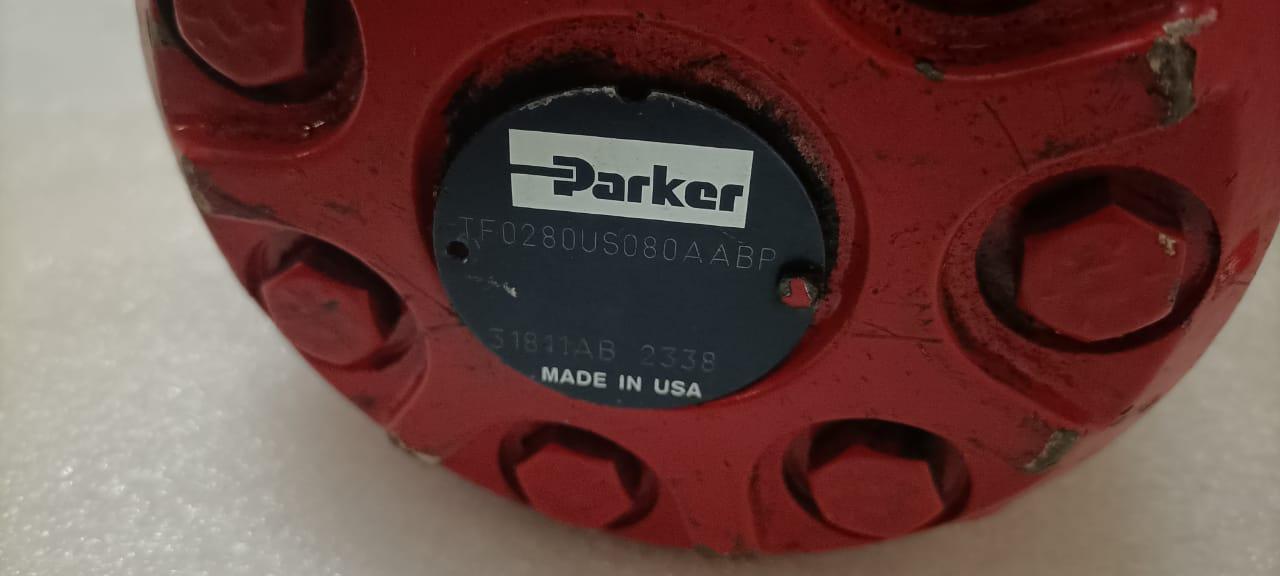

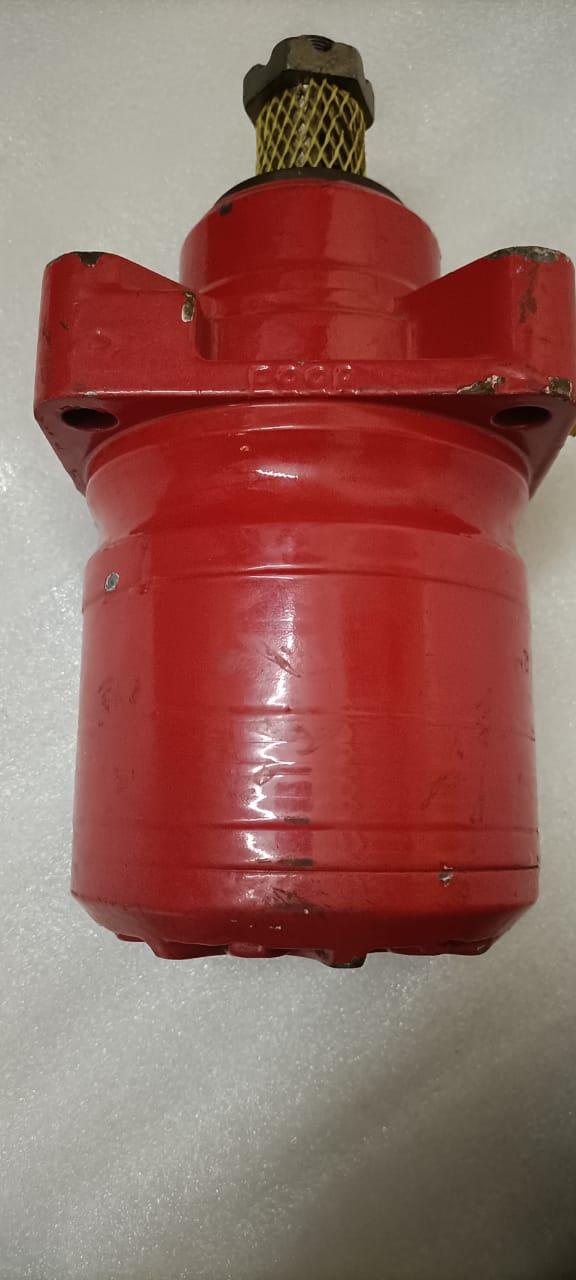

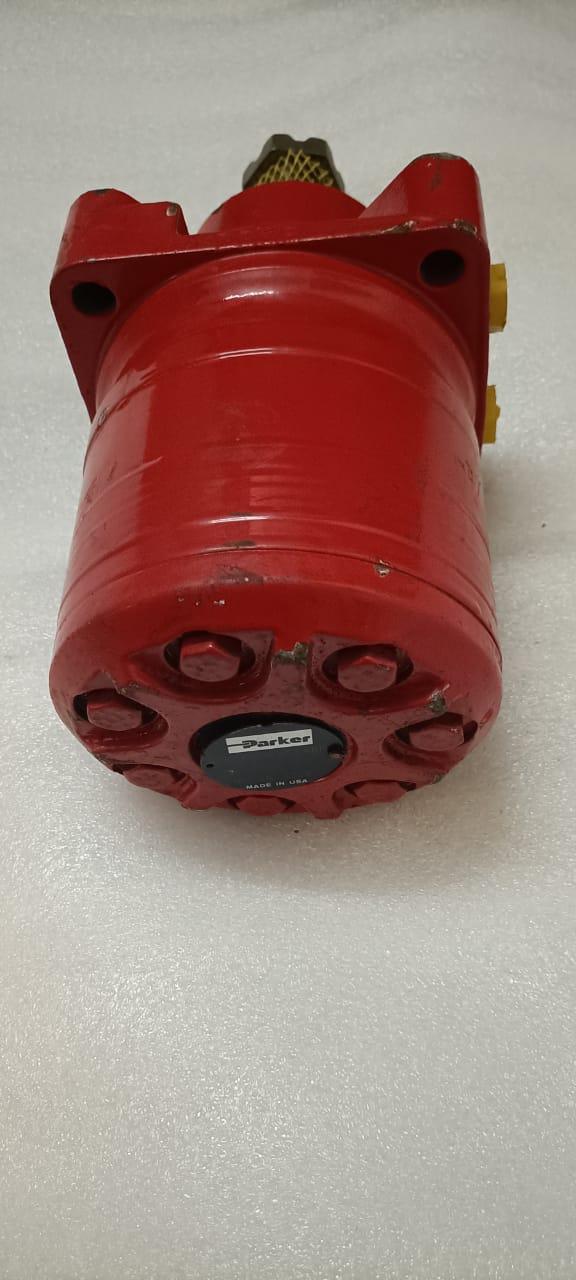

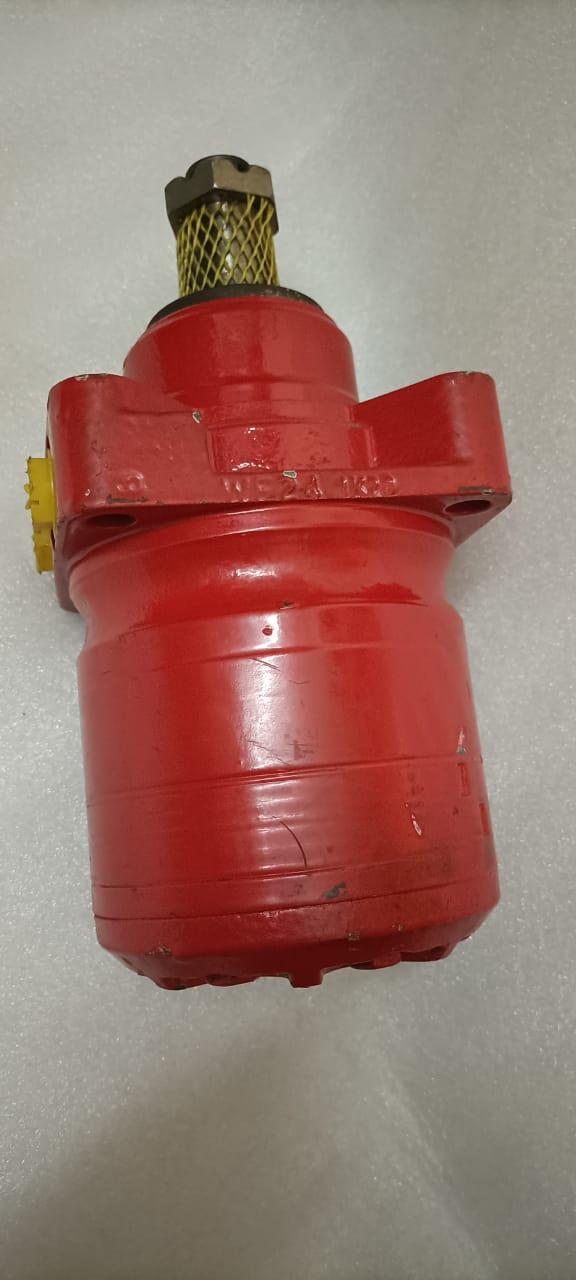

TF0280US080AABP Parker Interchange Hydraulic Motor
TF0280US080AABP Parker Interchange Hydraulic Motor
- Series: TF
- Shaft: 1 1/4" Tapered
- Rotation: Standard
- Displacement (cm3/rev): 0280
- Mounting: Wheel, Standard
- Ports: 7/18-14 SAE
- Geometric Displacement: 280 cm3/rev (17.1 in3/rev)
- Maximum Speed: 334 rev/min
- Maximum Oil Flow (continuous / intermittent): 76 lpm (20 gpm) / 95 lpm (25 gpm)
- Max. Differential Pressure (continuous / intermittent): 138 bar (2000 PSID) / 207 bar (3000 PSID)
- Maximum Supply Pressure: 300 bar (4350 PSID)
- Maximum Torque - Continuous / Intermittent: 509 Nm (4502 lb in) / 794 Nm (7029 lb in)
- Maximum Performance: 27.8 KW (37.3 HP)
- Minimum Starting Torque - Continuous / Intermittent: 438 Nm (3876 lb in) / 672 Nm (5946 lb in)
- Maximum Side Load at Key: 16000 N (3597 lb)
- Shaft Code: 08
- Rotation Code: 0
- Options code: AABP
- Option: Castle Nut, No Paint
- Mounting code: U
- Ports code: S
