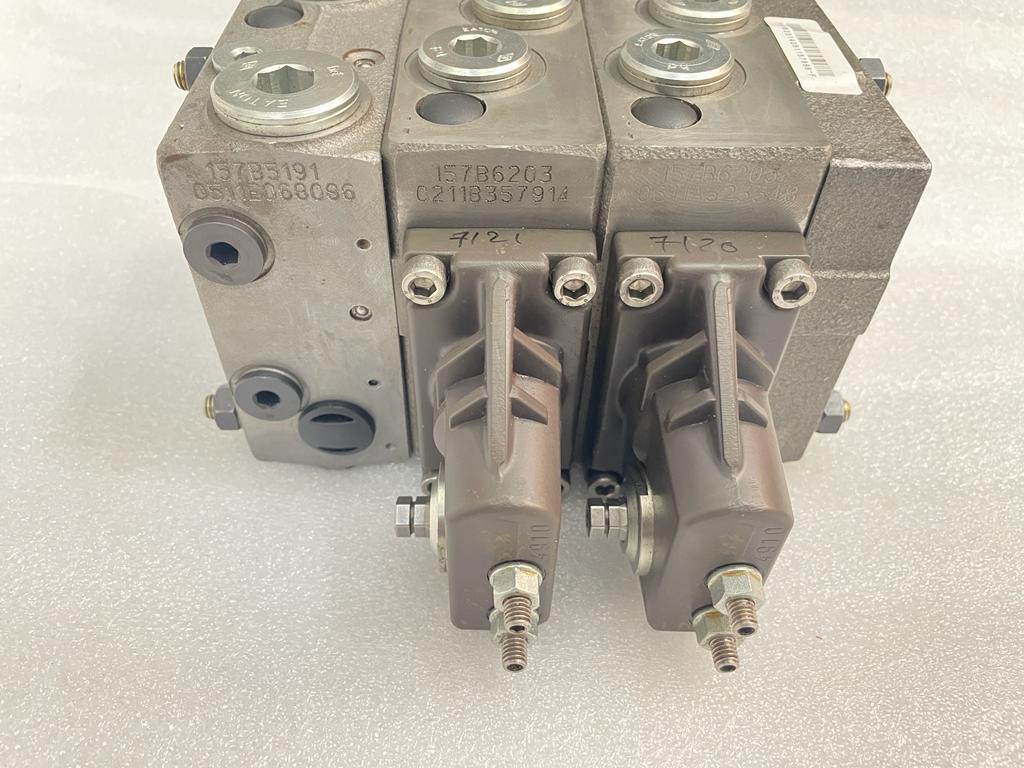

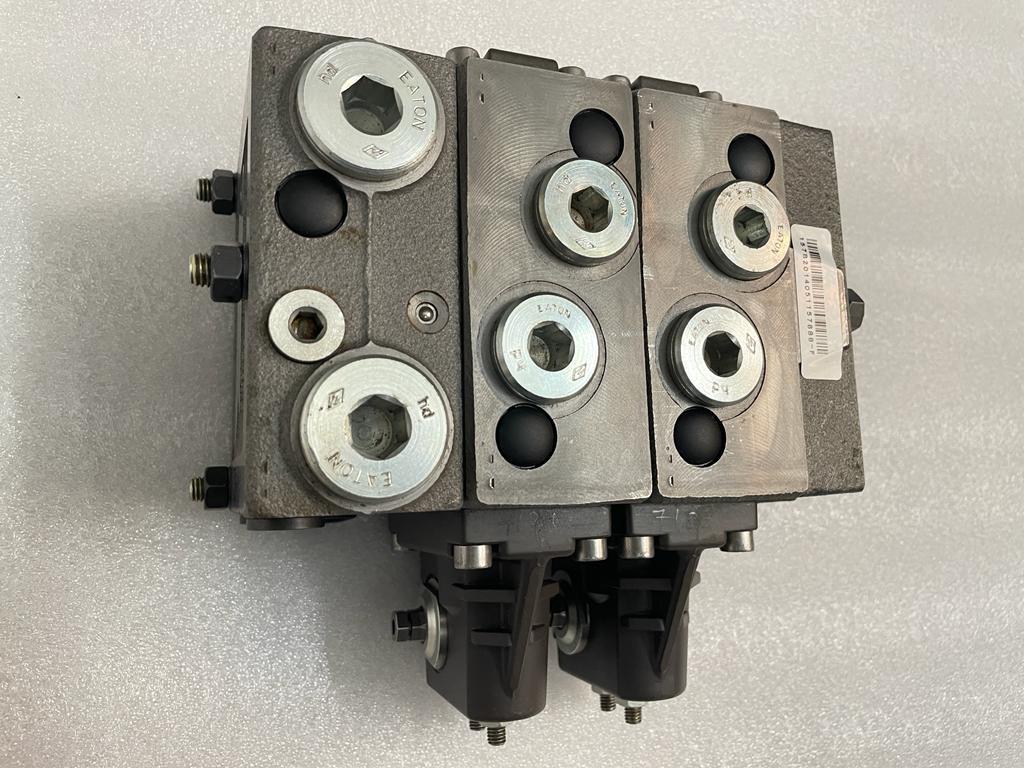

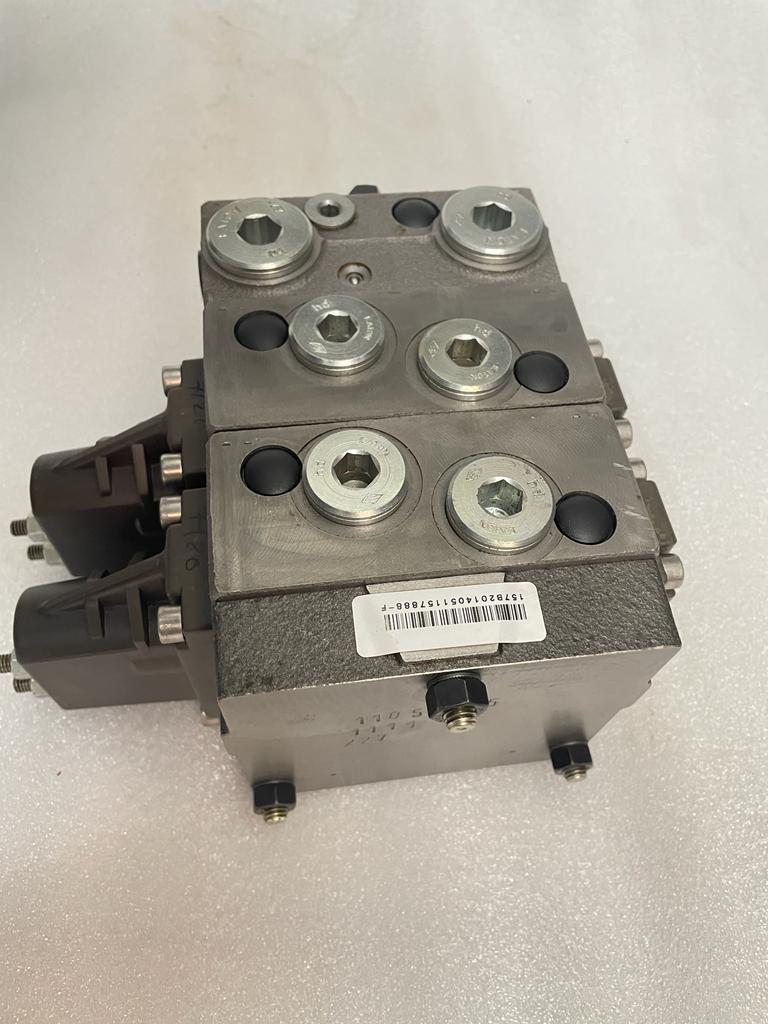

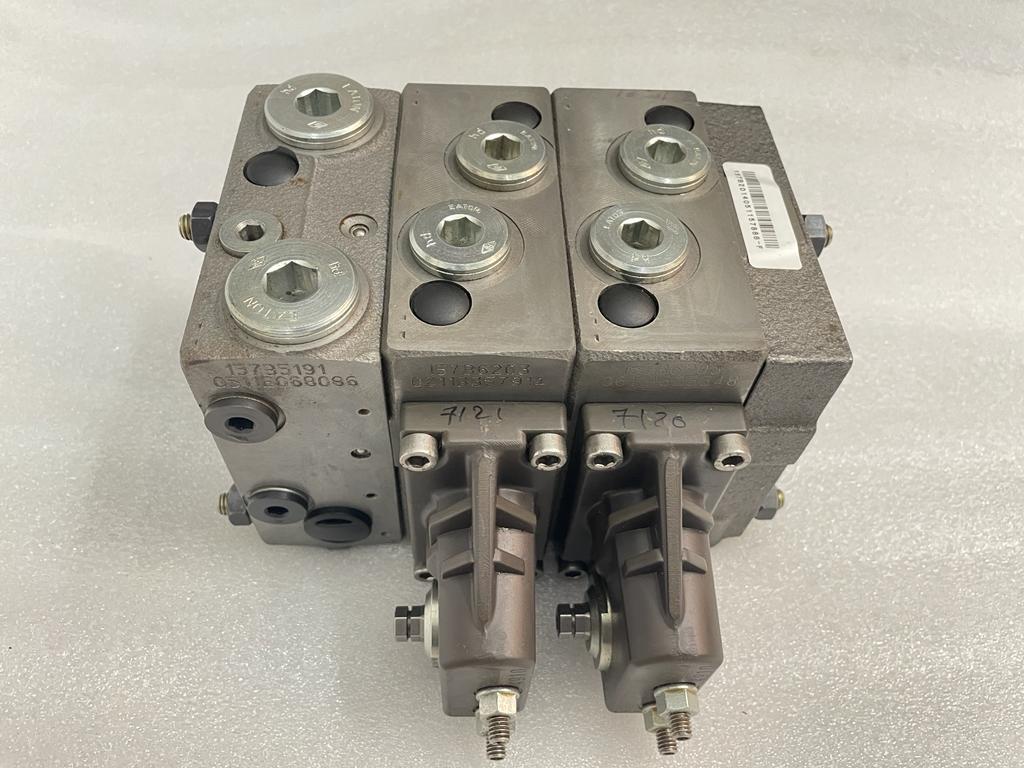

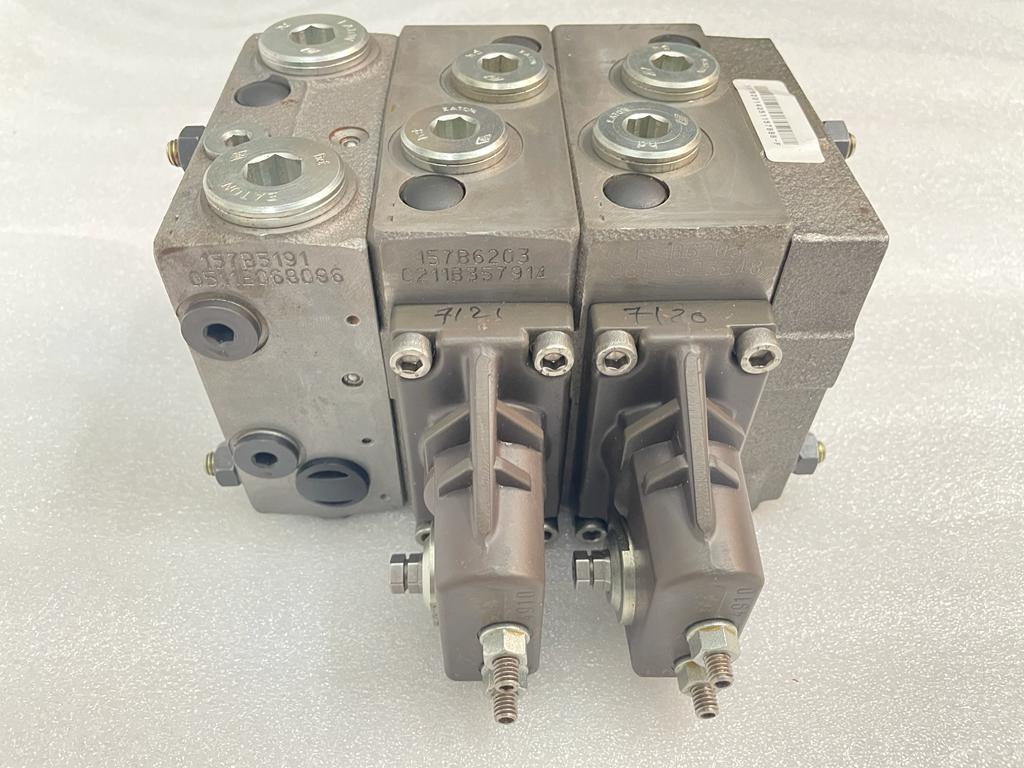

Sauer Danfoss PVG 32 11054235 157B3184, 157B5191, 157B6203, 157B7121, 157B7120, 157B0009

Proportional Valve PVG 32 Specification

1) 157B5197

• Closed centre pump side module for pumps with variable displacement
• With pilot oil supply for hydraulic actuation and connection for pilot oil pressure
• Port Size: P=3/4 BSP T=3/4 BSP

2) 157B3184 x 2

• PVM, mechanical actuation with stop screw
• Common for PVG32 & PVG100

3) 157B6203 x 2

• PVB32 Basic Module - with adjustable LS A/B pressure limiting valves
• With compensator valve
• Without facilities for shock valve A & B
• Without load drop check valve
• Port Size A/B: 1/2 BSP

4) 157B7121

• 25 l/min Open neutral position
• To be used when PVB is with LS A/B shuttle valve
• Spring Return type

5) 157B7120

• 10 l/min Open neutral position
• To be used when PVB is with LS A/B shuttle valve
• Spring Return type

6) 157B0009 x 2

• PVMD, cover for PVB - purely mechanically operated valve

7) 11054235

End Plate 227 BAR
