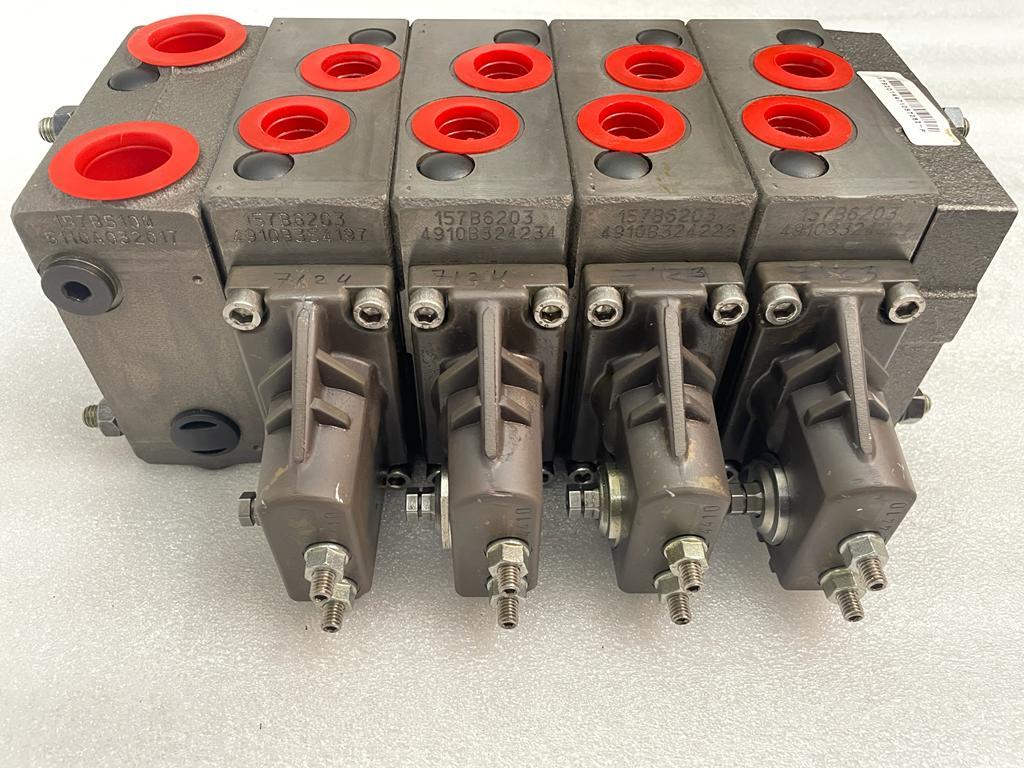

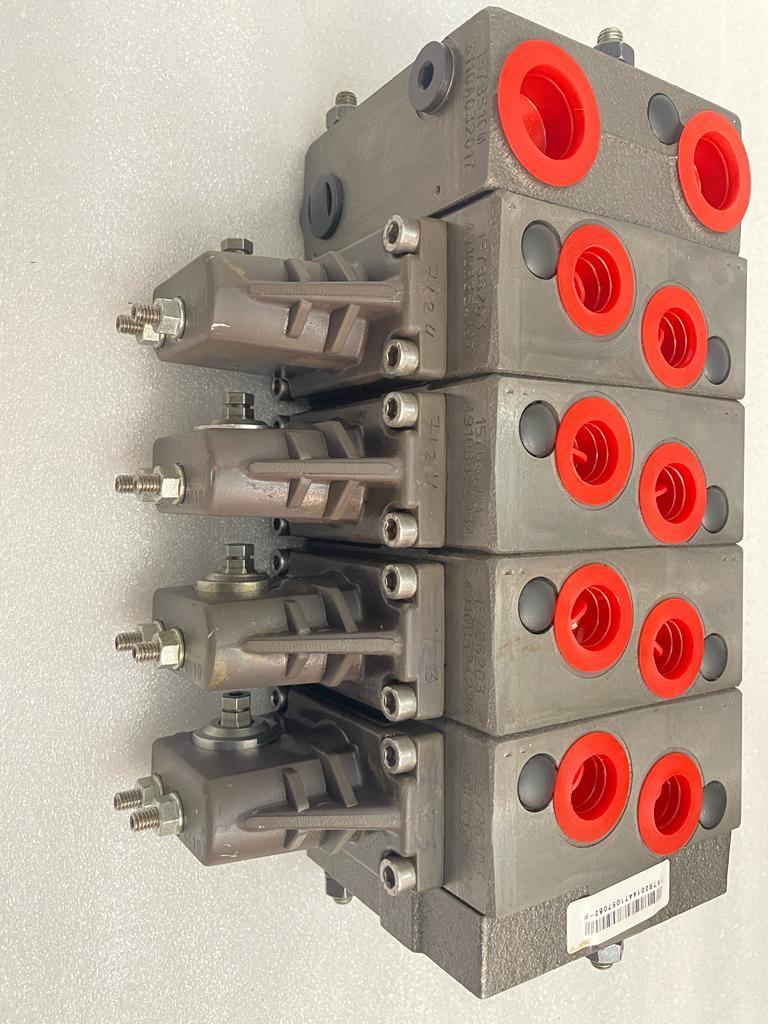

PVG Proportional Valve 157B5100,157B6203,157B7124,157B7123,157B3184,157B0009,157B2014,11055571

PVG Proportional Valve 11055571

1) 157B5100

• Open centre pump side module for pumps with fixed displacement
• For purely mechanical actuated valve group
• Port Size: P=3/4 BSP T=3/4 BSP

2) 157B6203

• PVB32 Basic Module - with adjustable LS A/B pressure limiting valves
• With compensator valve
• Without facilities for shock valve A & B
• Without load drop check valve
• Port Size A/B: 1/2 BSP

3) 157B7124

• 100 l/min Open neutral position
• To be used when PVB is with LS A/B shuttle valve
• Spring Return type

4) 157B7123

• 65 l/min Open neutral position
• To be used when PVB is with LS A/B shuttle valve
• Spring Return type

5) 157B3184

• PVM, mechanical actuation with stop screw
• Common for PVG32 & PVG100

6) 157B0009

• PVMD, cover for PVB - purely mechanically operated valve

7) 157B2014

• PVSI, cast iron end plate
• Common for PVG16 & PVG32

8) 157B8004

• PVAS32 for 4 x PVB or for 5 x PVB on a PVGI (Combi)
