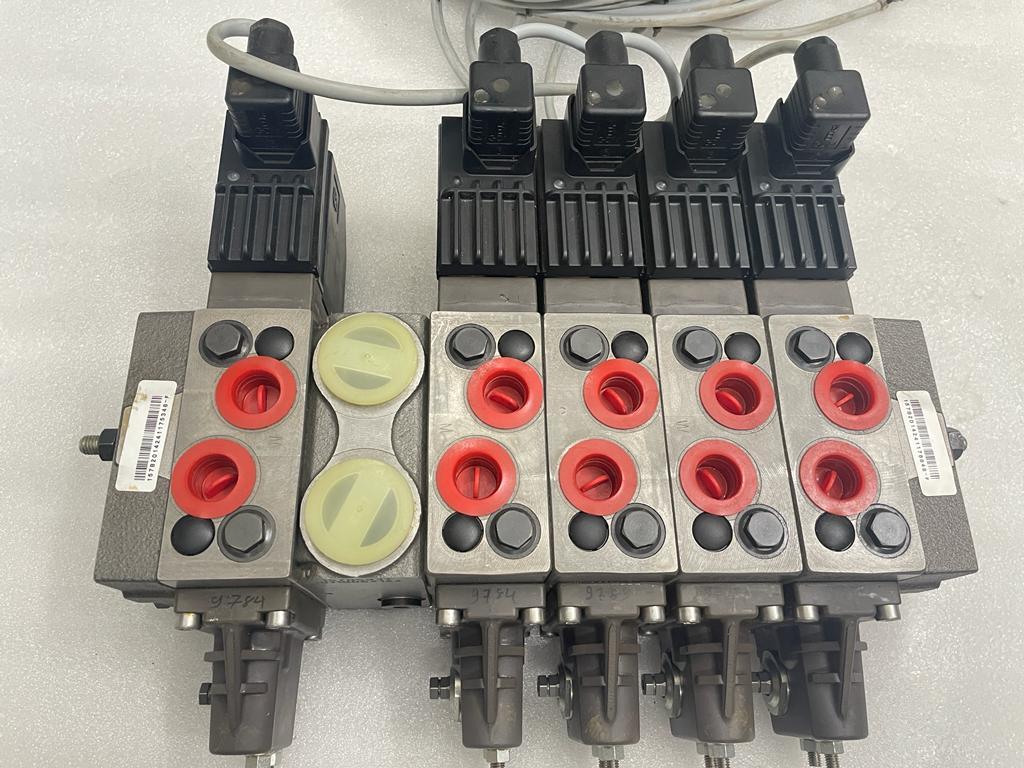

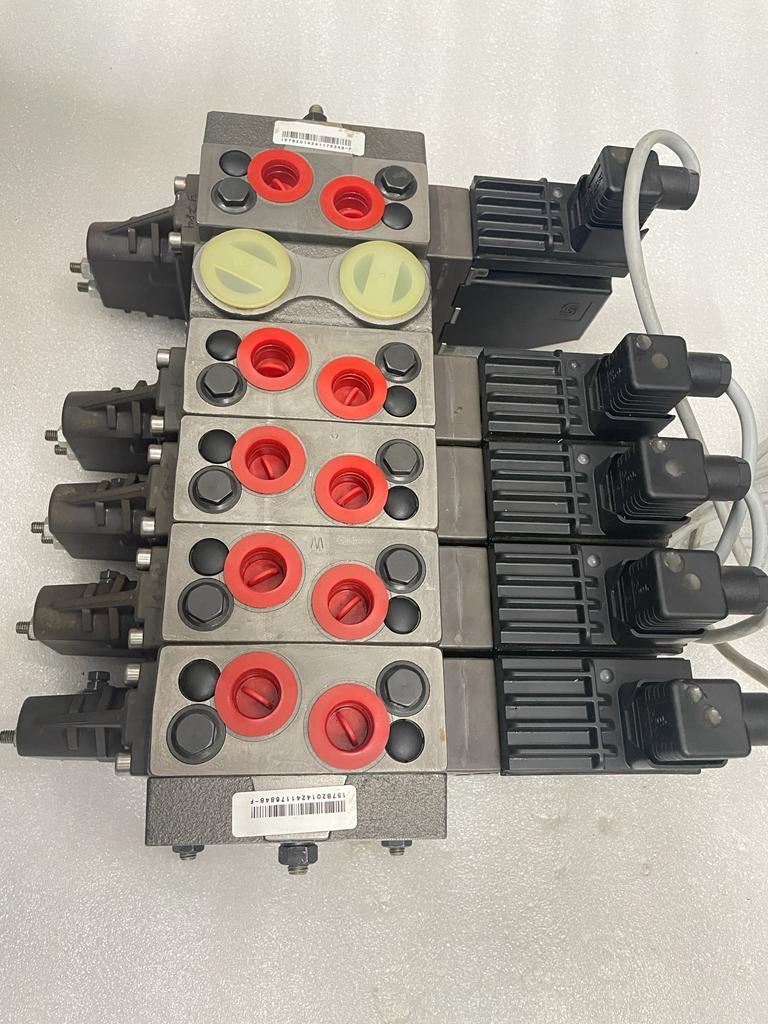

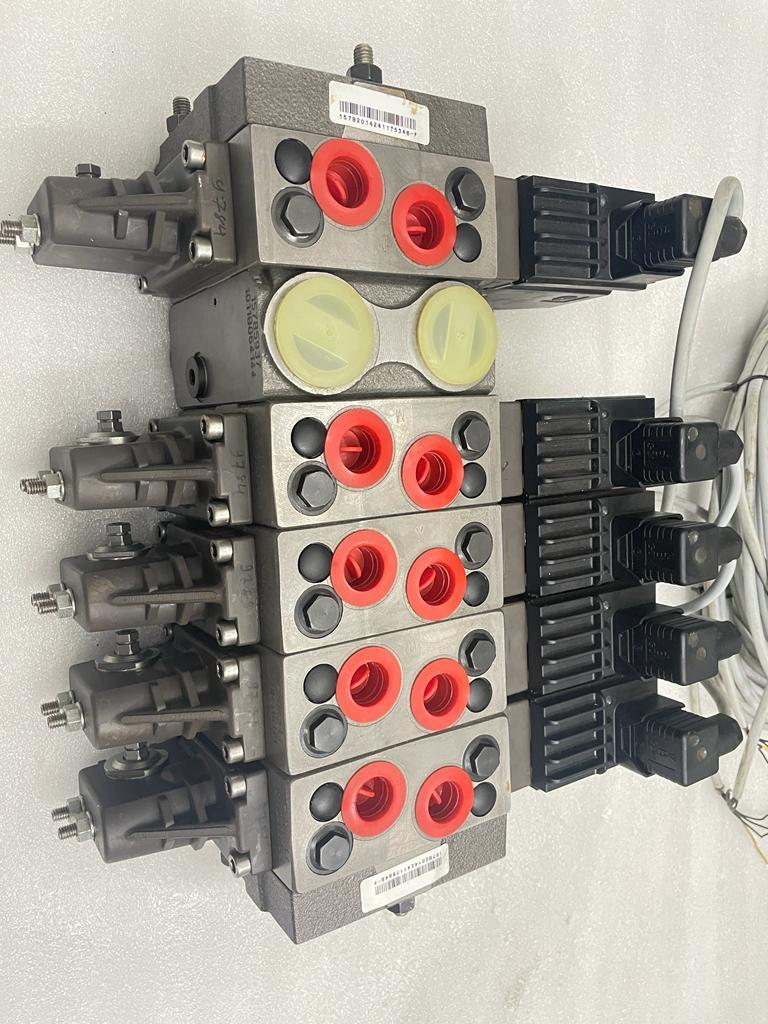

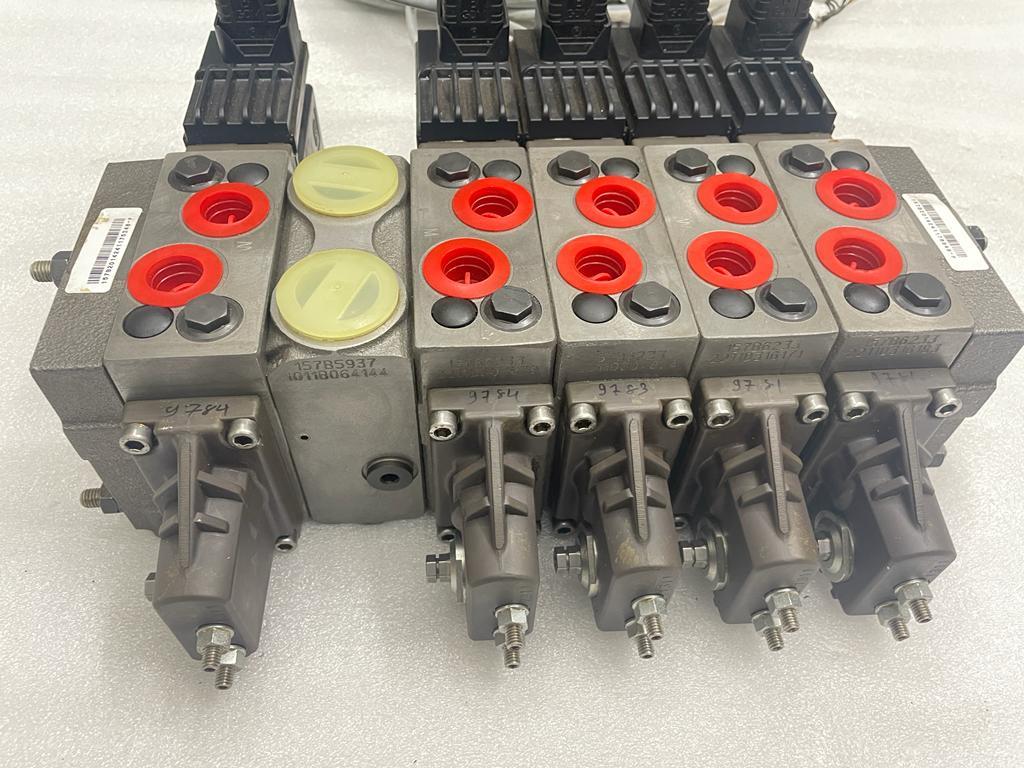

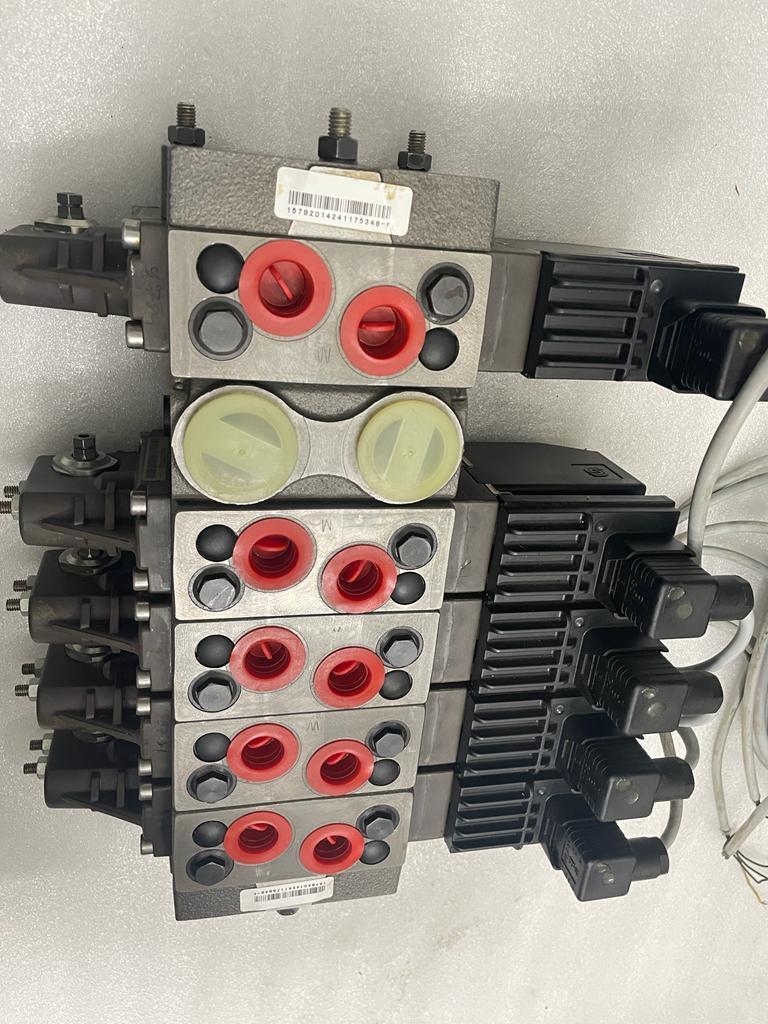

PVG 32 Proportional Valve 11052079

1)157B5937

157B5937 with productname: PVPVM Closed Center 350bar, 230L/min G1

2)157B6233 X 5

• PVB32 Basic Module - with adjustable LS A/B pressure limiting valves
• With compensator valve
• With facilities for shock valve A & B
• Without load drop check valve
• Port Size A/B: 1/2 BSP

3)11084102 X 5

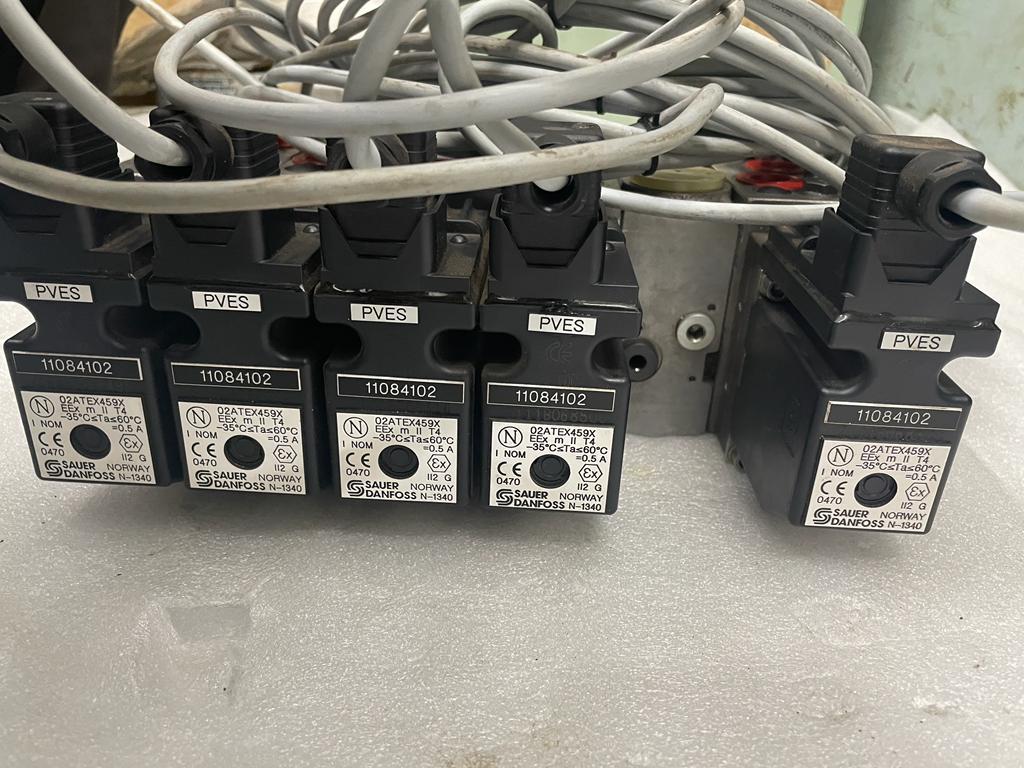

^{Danfoss 11084102 PVES Electronic Actuator for PVG32 24 V}

4)157B9784 X 2

• 65 l/min Open neutral position with linear flow characteristic
• To be used when PVB is with LS A/B shuttle valve
• Spring Return type

5)157B9783

Danfoss PVBS Spool 65Ltr Size D Linear Flow LSAB, Throttled Open Neutral part of the Danfoss PVG32 Proportional Valve Group

6)157B9781 X 2


Danfoss 157B9781 PVBS spool 25 l/min neutral open type flow control

7)157B3184 X 4

• PVM, mechanical actuation with stop screw
• Common for PVG32 & PVG100

8)157B2014

• PVSI, cast iron end plate
• Common for PVG16 & PVG32

9)157B8025

• PVAS32 for 5 x PVB on a PVPVM assembly

10)157B2001
