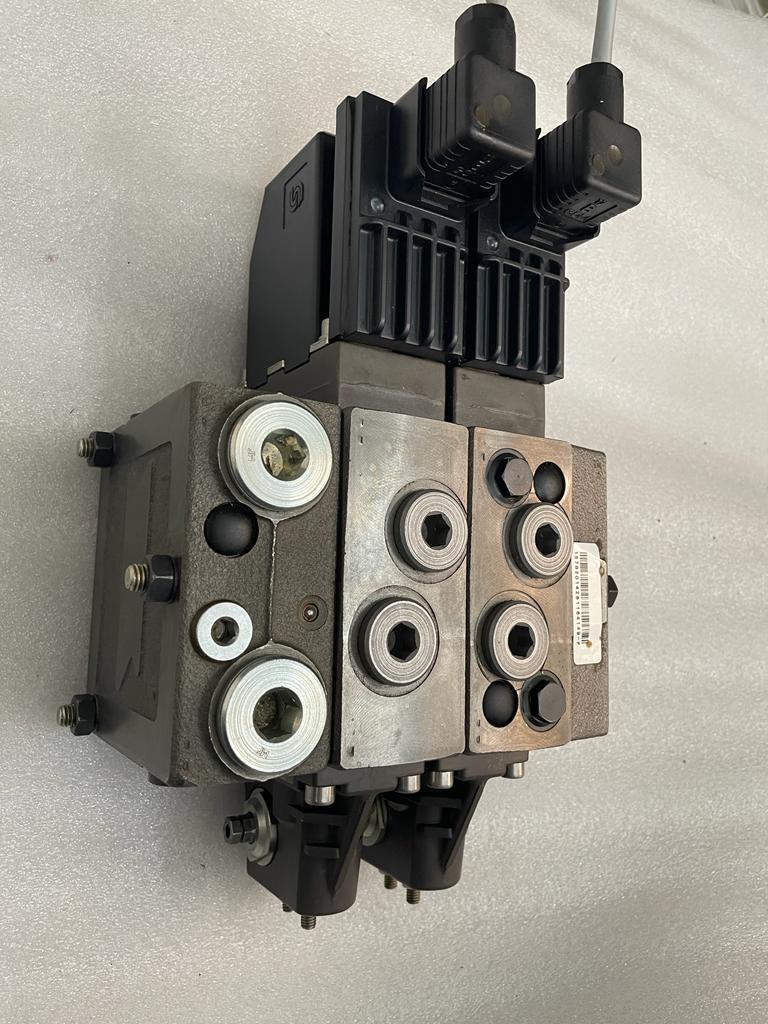

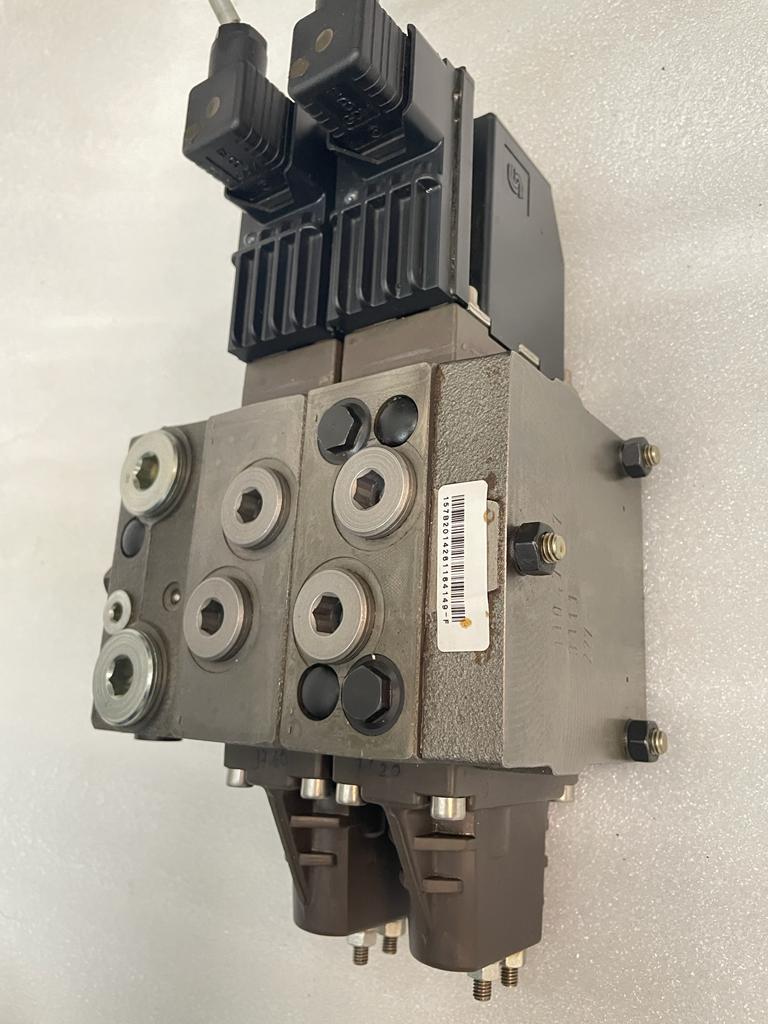

PVG 32 Danfoss 11047557, 157B3184, 157B6100, 157B6203, 157B9760, 157B7120, 157B2001, 110840102

1. 157B5111

• Closed centre pump side module for pumps with variable displacement
• With pilot oil supply for electrically actuated valves
• Port Size: P=3/4 BSP T=3/4 BSP

2. 157B3184 X 2

• PVM, mechanical actuation with stop screw
• Common for PVG32 & PVG100

3. 157B6100

• PVB32 Basic Module - without adjustable LS A/B pressure limiting valves
• Without compensator valve
• Without facilities for shock valve A & B
• With load drop check valve
• Port Size A/B: 1/2 BSP

4. 157B6233

• PVB32 Basic Module - with adjustable LS A/B pressure limiting valves
• With compensator valve
• With facilities for shock valve A & B
• Without load drop check valve
• Port Size A/B: 1/2 BSP

5. 157B9760

_{PVBS SPOOL 10l/min NATRAL OPEN TYPE FLLOW CONTR0L}

6. 157B7120

• 10 l/min Open neutral position

• To be used when PVB is with LS A/B shuttle valve

• Spring Return type


7. 11084102 X2

Danfoss 11084102 PVES Electronic Actuator for PVG32 24 V Hirschmann connector NEW
